Description
Technical Parameters
| Pressure range | -0.1MPa~0~0.1Mpa； 0~150MPa | ||
| Overload | 150%FS | ||
| Comprehensive accuracy | 0.25%FS ; 0.5%FS ;1%FS | ||
| Long term stability | ±0.2%FS/year | ||
| Non-linearity | 0.2%FS | ||
| Repeatability | 0.2%FS | ||
| Singal output | 4‐20mA ; 0.5‐4.5V ; 0‐5V ; 0‐10V ; RS485 | ||
| Power supply | 24(12~36V)DC | ||
| Storage temperature | ‐20～85℃ | ||
| Operating temperature | ‐10～85℃ | ||
| Compensation temperature | 0～60℃ | ||
| Wetted material | SS304;SS316L(Customizable) | ||
| Housing material | SS304 | ||
| Protection grade | IP65 | ||
| Explosion-proof | Intrinsically safe explosion-proof | ||

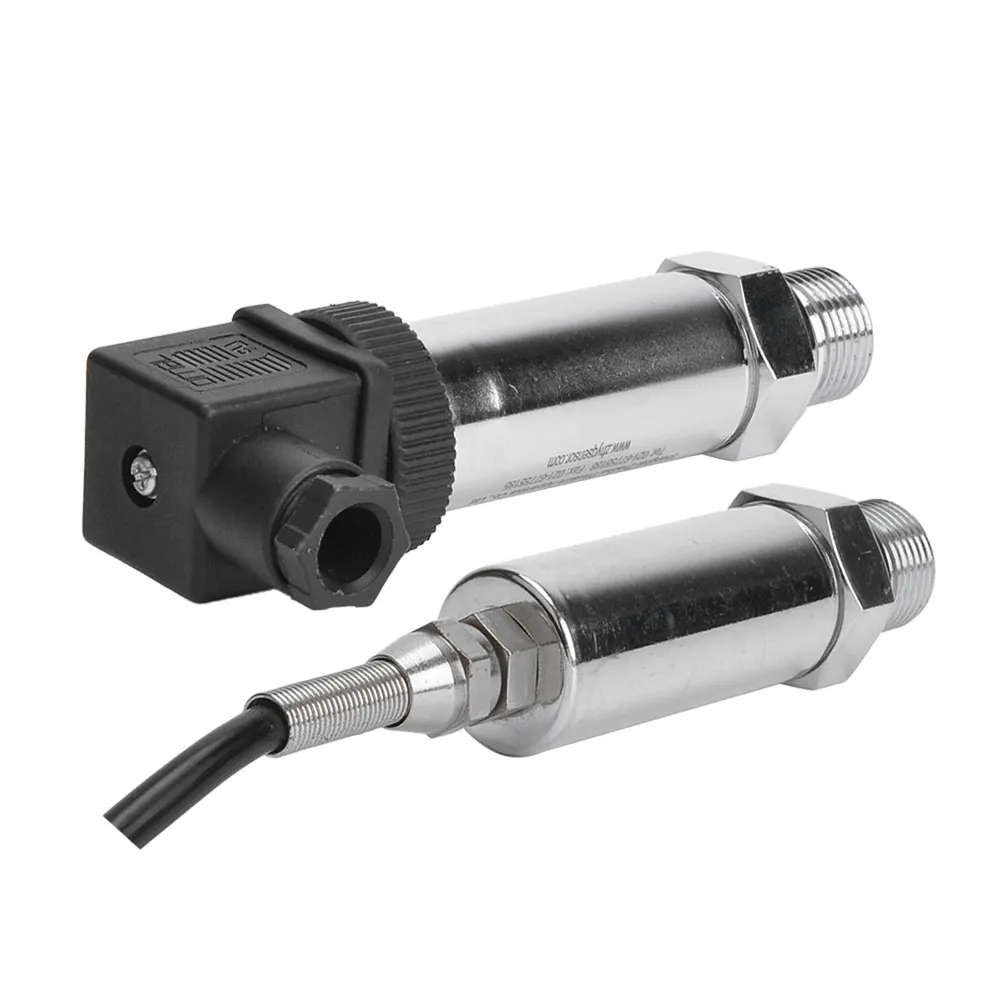

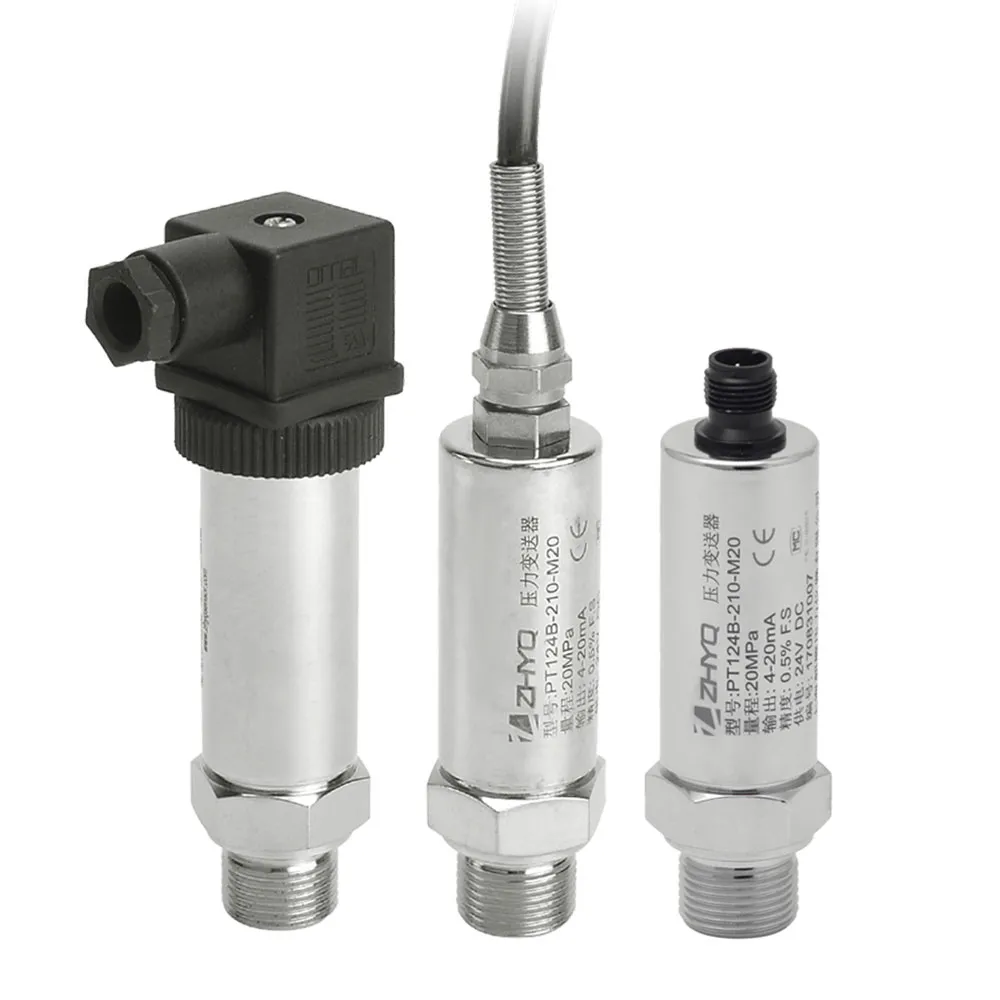

| Electrical Connection | 5-PIN aviation plug-in ; M12*1 4-PIN plug-in ; Hirschmann A type ; PG7 gland lead | ||
| Process connection | G1/4 ; G3/8 ; G1/2 ; 1/2NPT ; 1/4NPT ; M14*1.5 ; M20*1.5, etc. | ||
Features
1.Measurement of pressure range from -0.1MPa to 0~0.1Mpa to 150MPa
2.A variety of industrial standard signal outputs are available
3.A variety of electrical connection methods are available
4.A variety of process connections are available
4.Zero adjustment and full adjustment functions can be added as required
5.Simple appearance design, high cost performance
Application
1. Mechanical engineering applications
2. Measurement of various water pressures and air pressures
3. Medical and health applications
4. Food and beverage processing industry
5. General industrial control field
