Description
Technical Parameters
| Pressure range | 0~5MPa~200MPa |
| Overload | 150%FS |
| Comprehensive accuracy | ±1%FS(including linearity , repeatability & hysteresis) |
| Singal output | 4-20mA;0-10V;0-5V |
| Power supply | 24(12~36V)DC |
| Internal filling medium | Silicone oil |
| Wetted material | Stainless Steel Coated with 15-5PH |
| Length of rod | 152;200;250;305;400mm |
| Standard cable | 5000mm |
| Optional cables | 1000;3000;8000;10000mm |
| Operating temperature | Max 400℃ |
| Protection grade | IP65 |
| Insulation resistance | 100MΩ / 250V |
| Zero point adjustment | Support |
| Full scale adjustment | Support |
| Internal calibration | 80% |
| Electrical Connection | 5PIN |
| Capillary length | 460;760mm |
| Process connection | 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5 ; G3/4 |
| Temperature measuring element | J、K、E、PT100(optional) |
Features
1. Internal 80% calibration signal
2. Maximum temperature resistance 400℃
3. Environmentally friendly and non-toxic

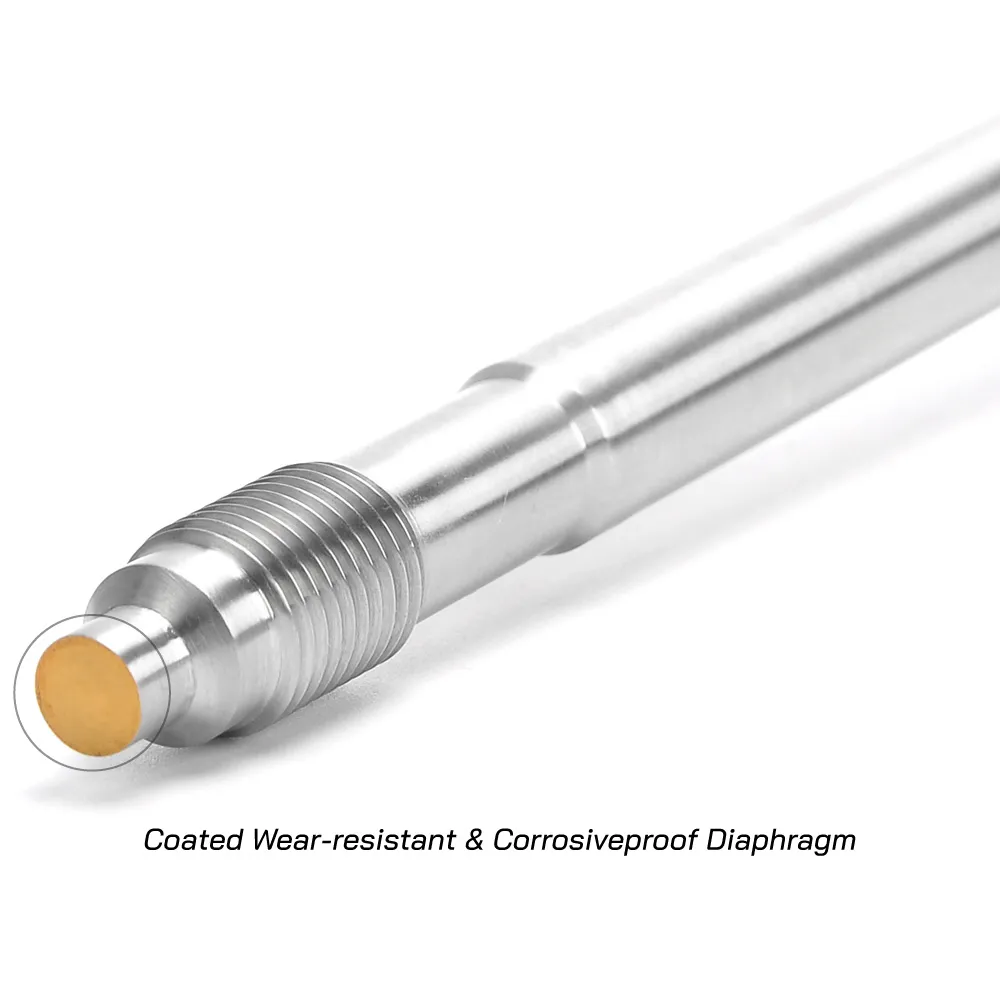

4. 15-5PH diaphragm material, extended service life
5. Anti-interference and lightning protection circuit, stable signal output
Application
1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment
