Rigid Stem Melt Pressure Gauge with Singal Output

Description

Technical Parameters

Pressure range 0~5MPa~150MPa
Overload 150%FS
Power supply 24(12-36V) DC 5-12V DC
Signal output 4-20mA ; 0~10V 2mV/V ; 3.33mV/V
Display mode Pointer
Pointer accuracy ±1.6%FS ; ±2.5%FS
Signal accuracy ±1%FS ; ±1.5%FS
Dial diameter 100mm
Internal filling medium Mercury
Operating temperature Max 400℃
Rigid stem length 152 ; 200 ; 250 ; 305 ; 350 ; 400mm
Electrical Connection 6PIN ; 5PIN
Process connection M22*1.5

Features

1.Direct local reading
2.Mechanical design
3.All stainless steel encapsulation,, corrosion-resistant
4.Install easily, high reliability
5.Zero adjustment
6.With signal output

Application

1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment

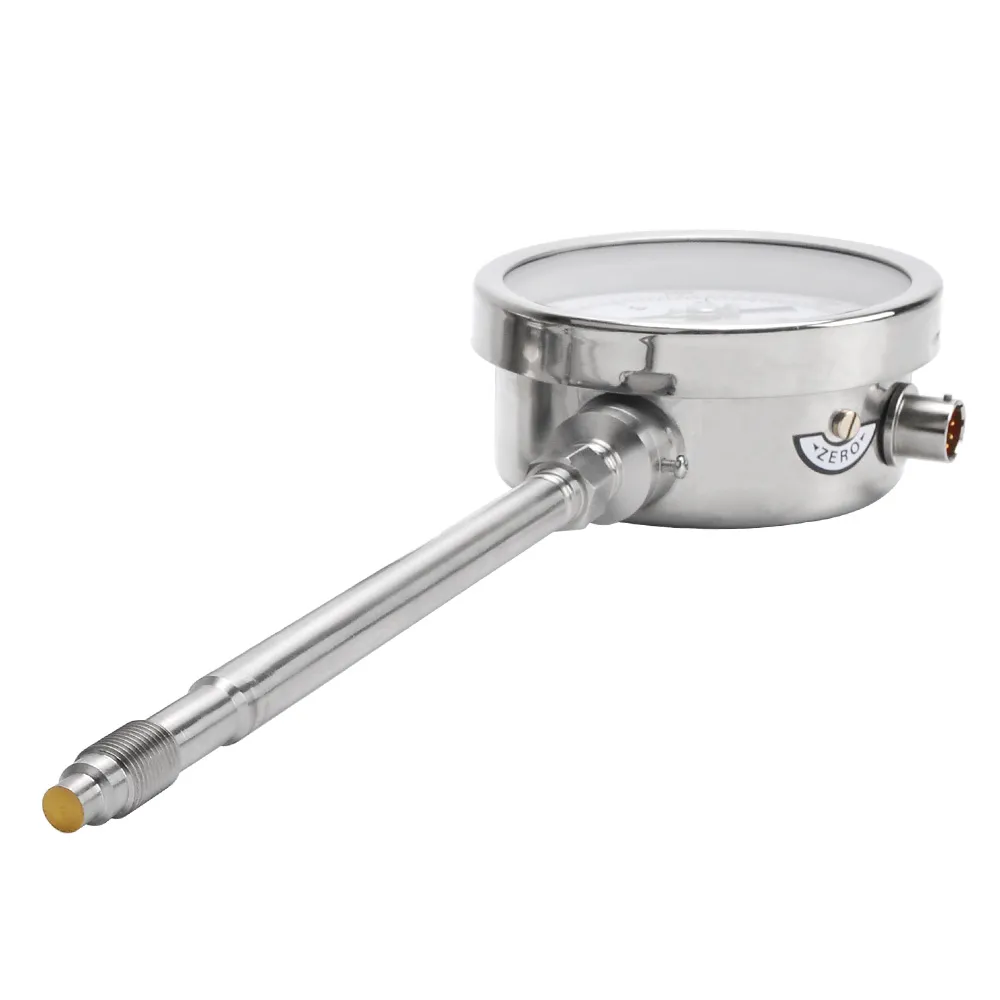

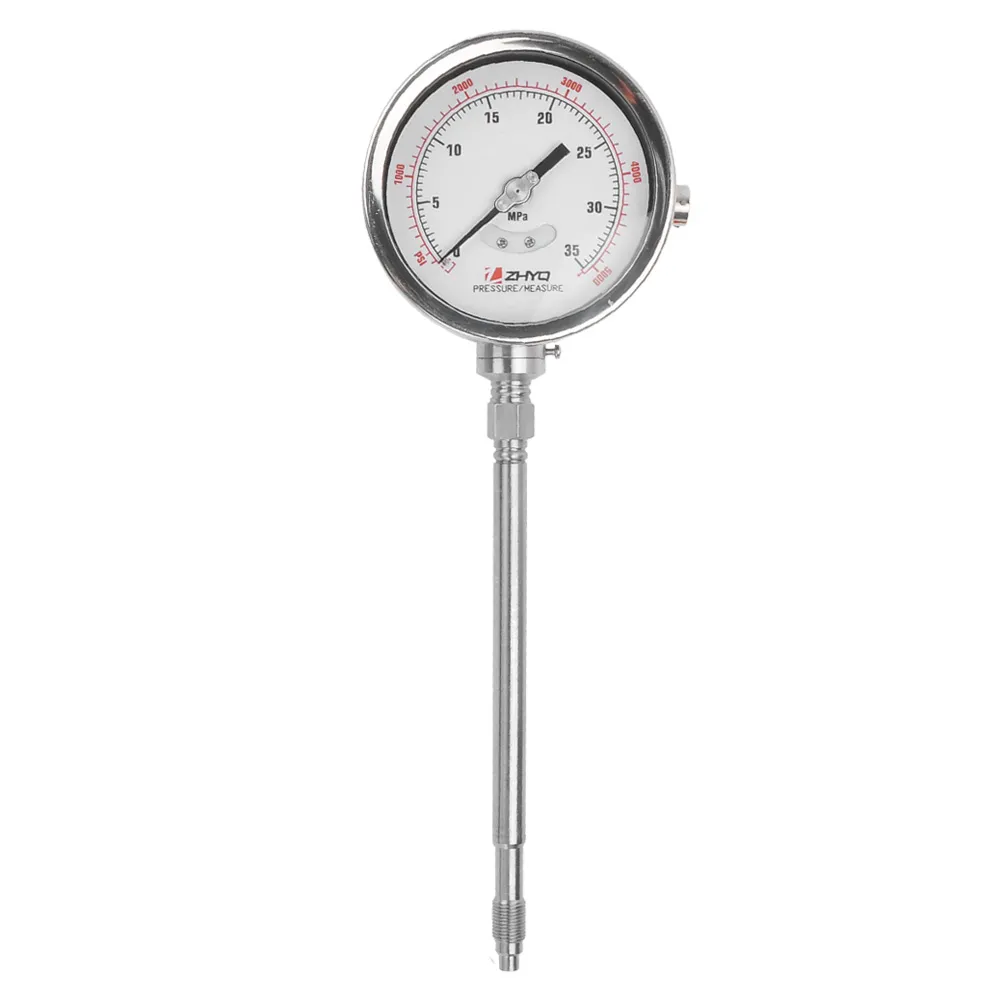

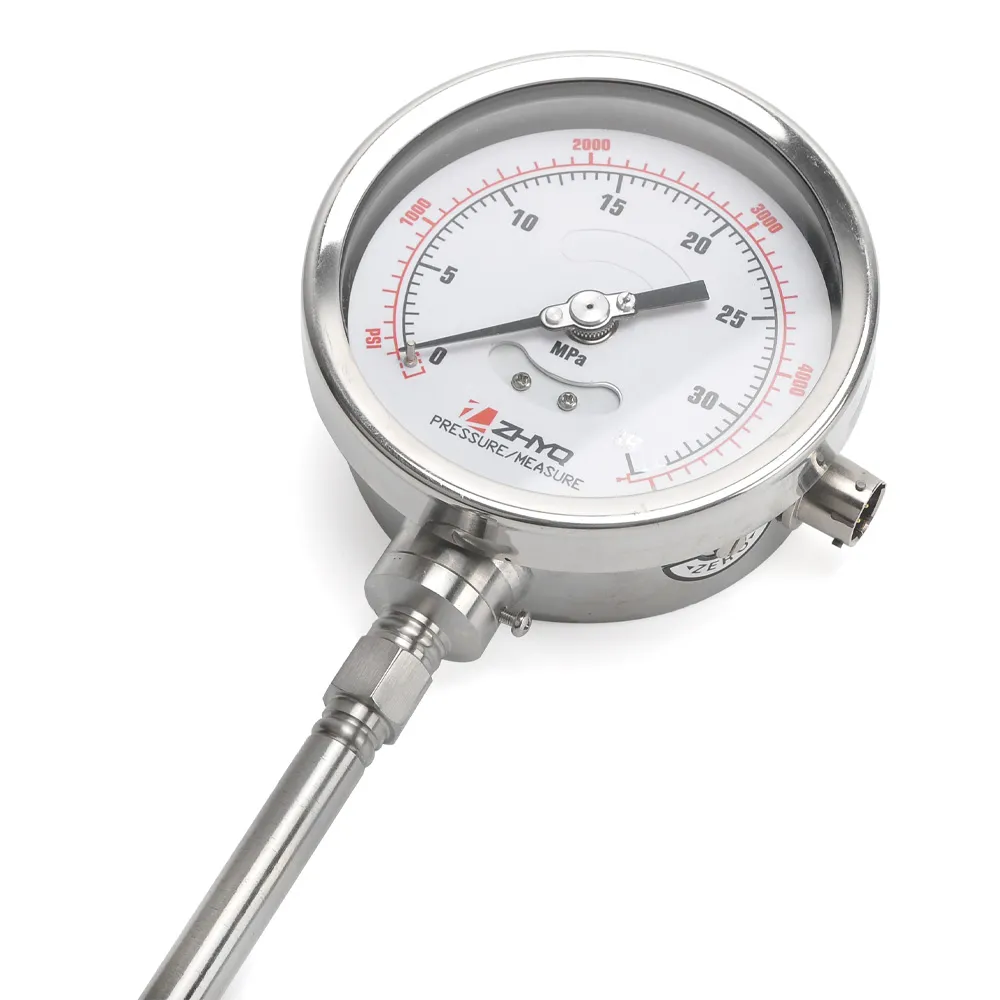

Rigid Stem Melt Pressure Gauge with Singal Output

Model:PT124Y-612

PT124Y-612 melt pressure gauge adopts the original packaging machine core, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s step-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing. This model has various signal output optional.
