Description
Technical Parameters
| Pressure range | 0~5MPa~150MPa |
| Overload | 150%FS |
| Display mode | Pointer |
| Pointer accuracy | ±1.6%FS ; ±2.5%FS |
| Dial diameter | 100mm |
| Internal filling medium | Mercury |
| Operating temperature | Max 400℃ |
| Rigid stem length | 152 ; 200 ; 250 ; 305 ; 350 ; 400mm |
| Process connection | 1/2″-20UNF ; M14*1.5 |
Features
1.Direct local reading
2.Mechanical design
3.All stainless steel encapsulation, corrosion-resistant
4.Install easily, high reliability

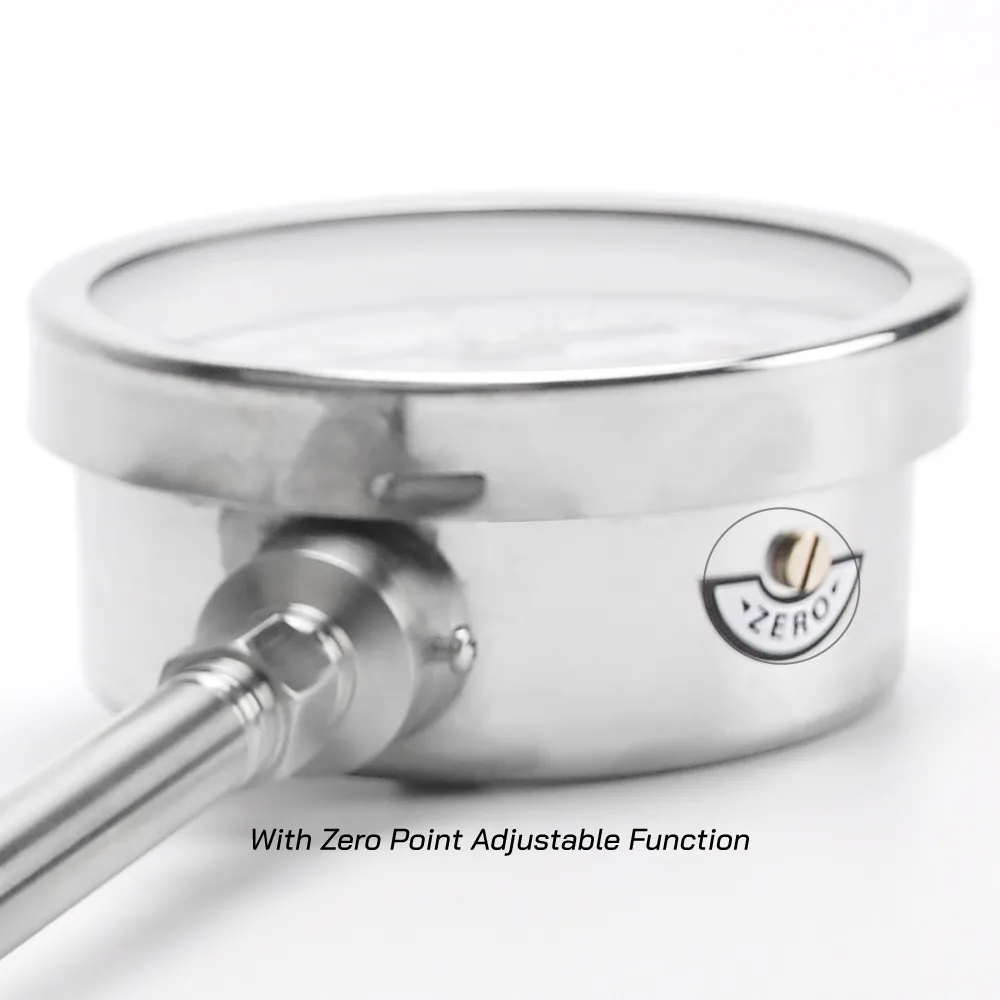

5.Zero adjustment
Application
1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment
