Radio Frequency Admittance Level Transmitter

Description

Technical Parameters

Measurement range 0~550mm (Scalable)
Accuracy ±2%FS
Power supply 24(20~36)VDC
Signal output 0~20mA ; 4~20mA ; 0-10V(switchable) ; 4~20mA+Switching signal(switchable)
Measurement time 2s
Operating temperature 5~125℃
Probe diameter 21mm ; 14mm
Probe material PEEK ; PTFE
Process connection Thread;  G1 ; G1/2 ; G3/4 ; G5/4 ; G2/3

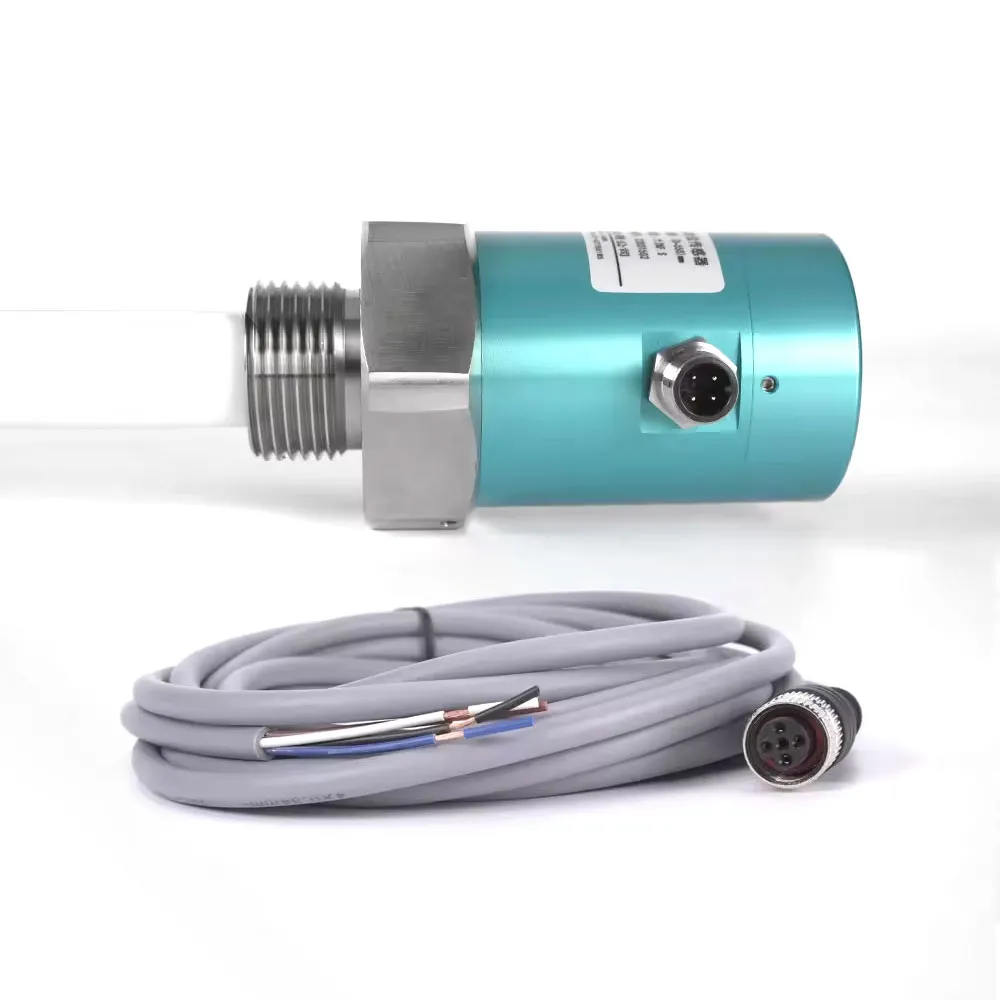

Electrical Connection 4PIN
Protection grade IP67
Electrical housing material Metel

Features

1.Thread type in different sizes
2.Multiple signal outputs, can output switch signals
3.Probe material and length can be customized.
4.Can work stably at high temperature

Application

1. Dispensing machine/injection molding machine glue storage tank
2. Liquid level in reactor
3. Oil level in storage tank
4. Water level in boiler
5. Pressure vessel liquid level
6. Other storage tanks for storing liquids or bulk materials

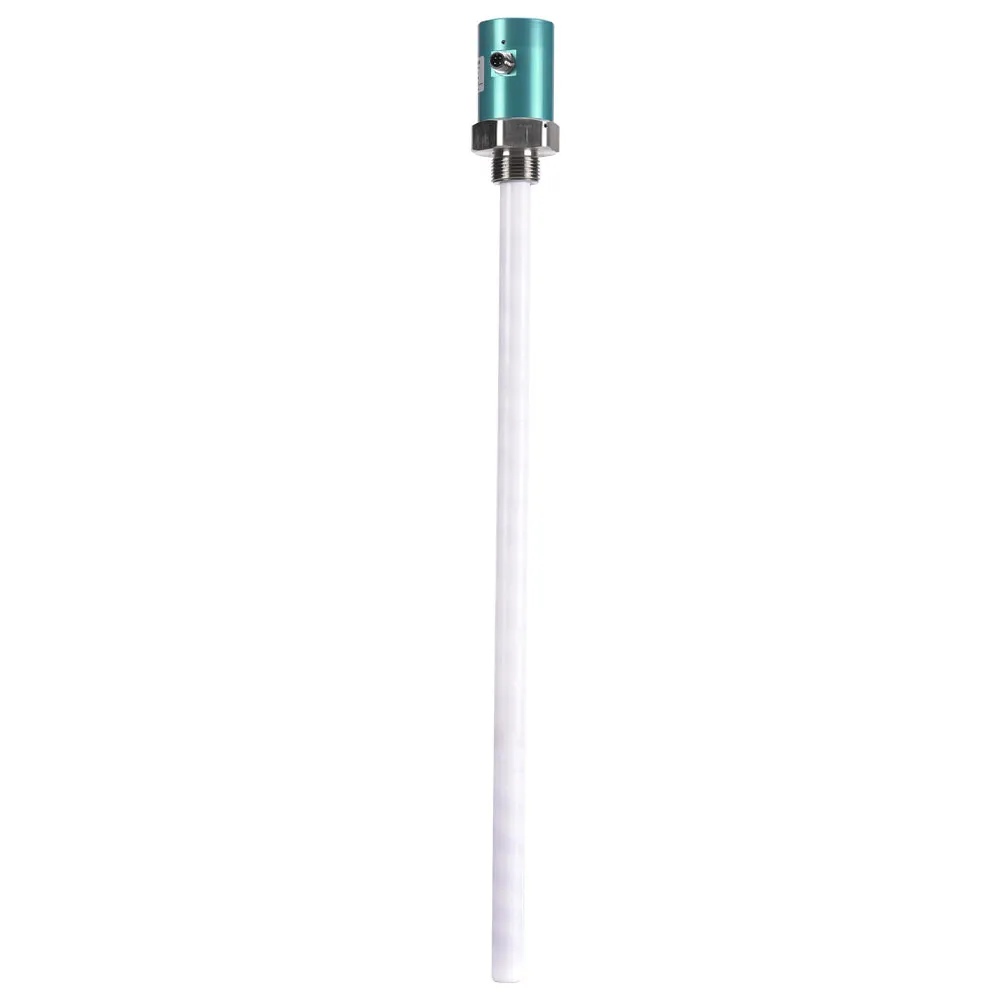

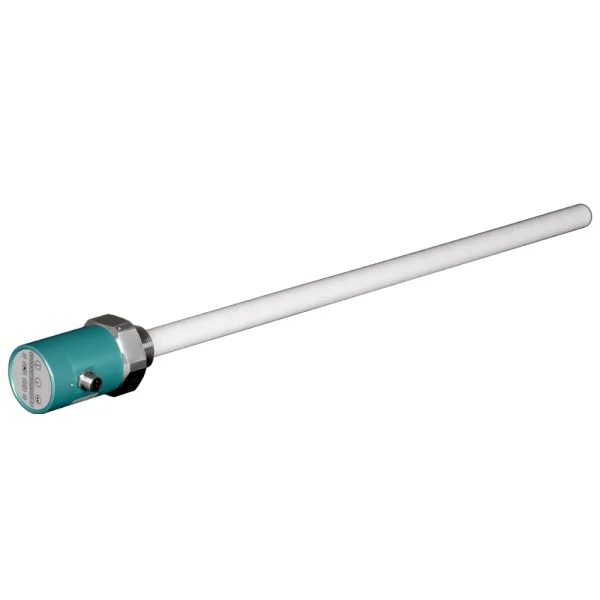

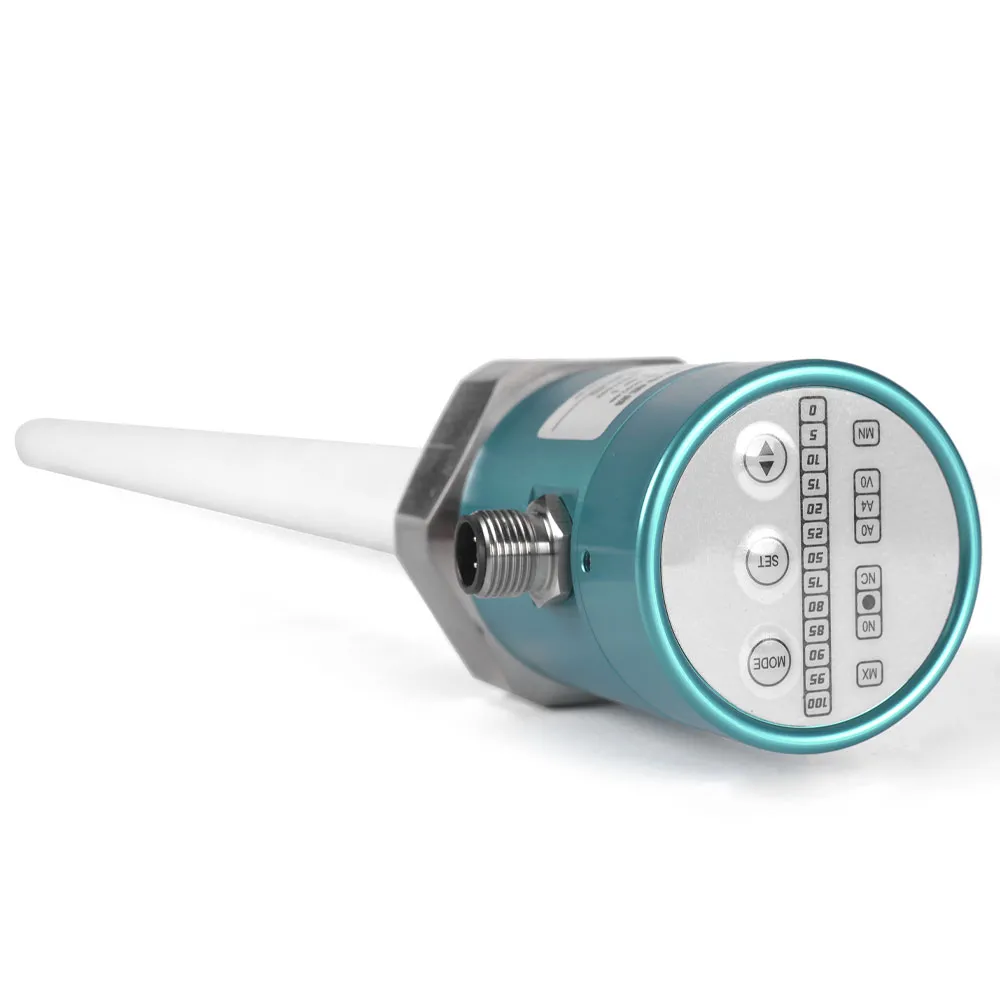

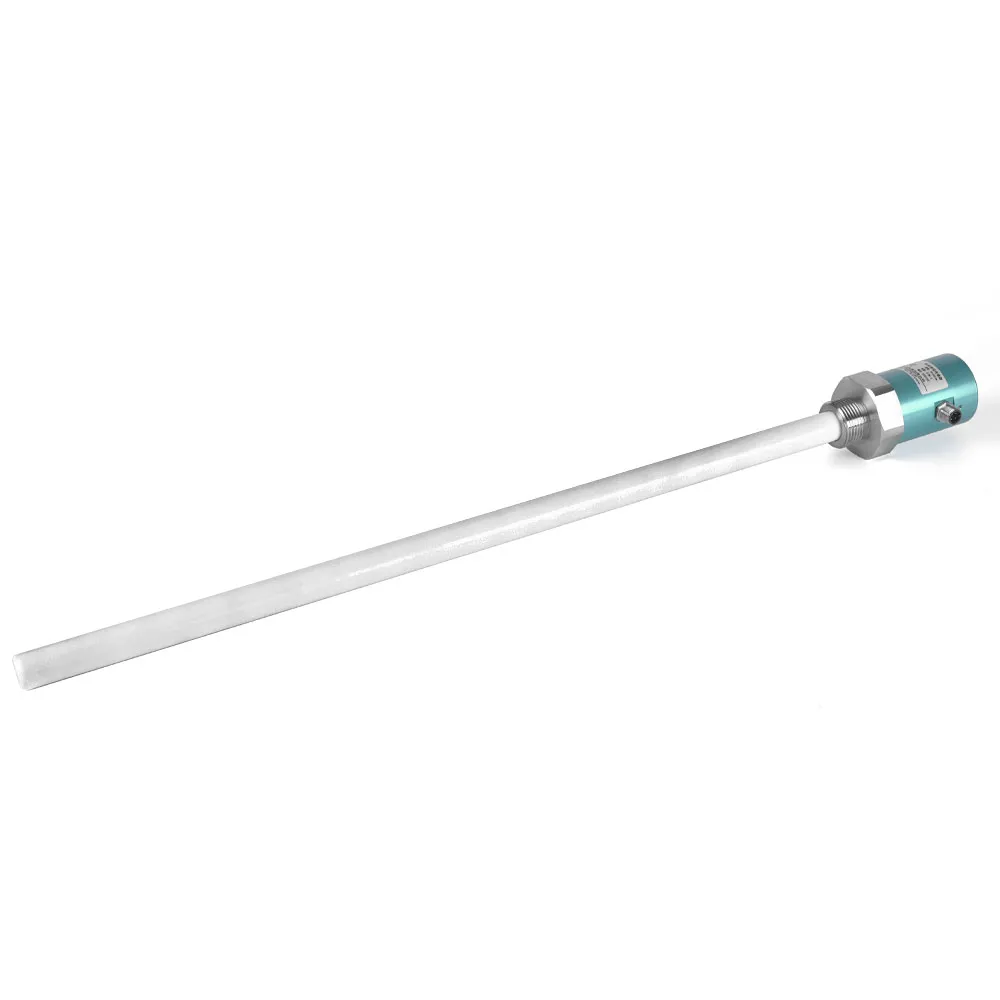

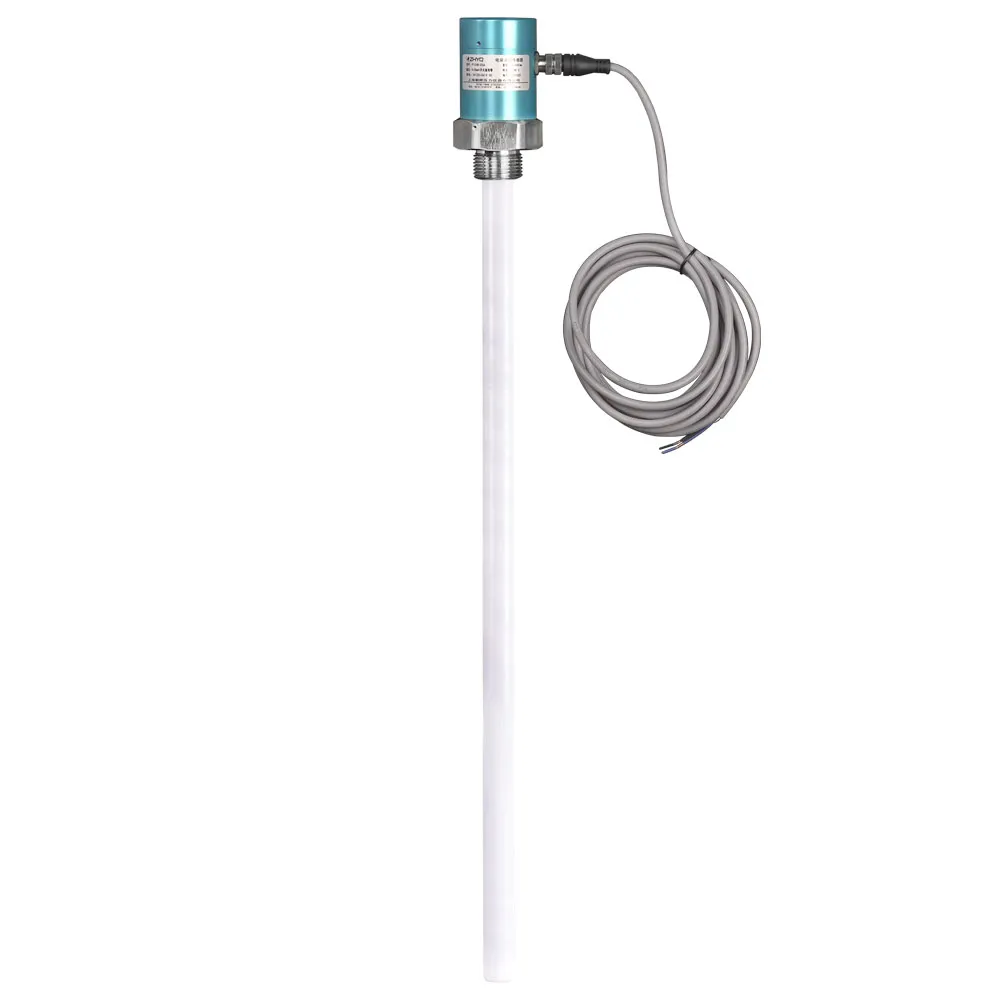

Radio Frequency Admittance Level Transmitter

Model:PT124B-225A

PT124B-225A radio frequency admittance level transmitter is a continuous level measurement based on the principle of radio frequency admittance. This product has the advantages of high stability, high sensitivity and wide application range. Compared with the traditional capacitive level meter, the product adopts modular design, which can realize the instrument setting simply and conveniently. Once the setting is completed, it can be used normally. It enables users to intuitively understand the operation of the equipment and deal with problems in time. It is also safe and reliable in complex industrial occasions. Equipped with LCD module, it can automatically obtain and display the current value of the measured liquid level without the use of any peripheral auxiliary equipment, providing users with more reliable measurement data.
