Description
Technical Parameters
| Pressure range | -0.1～0～0.1MPa ; 0-150MPa |
| Overload | 150%FS |
| Comprehensive accuracy | 0.5%FS ; 1%FS |
| Long term stability | ±0.2%FS/year |
| Non-linearity | 0.2%FS |
| Repeatability | 0.2%FS |
| Singal output | 4‐20mA ; 0‐5V ; 0‐10V ; RS485 |
| Power supply | 24(12~36V)DC |
| Storage temperature | ‐40～85℃ |
| Operating temperature | ‐20～85℃ |
| Compensation temperature | ‐10～80℃ |

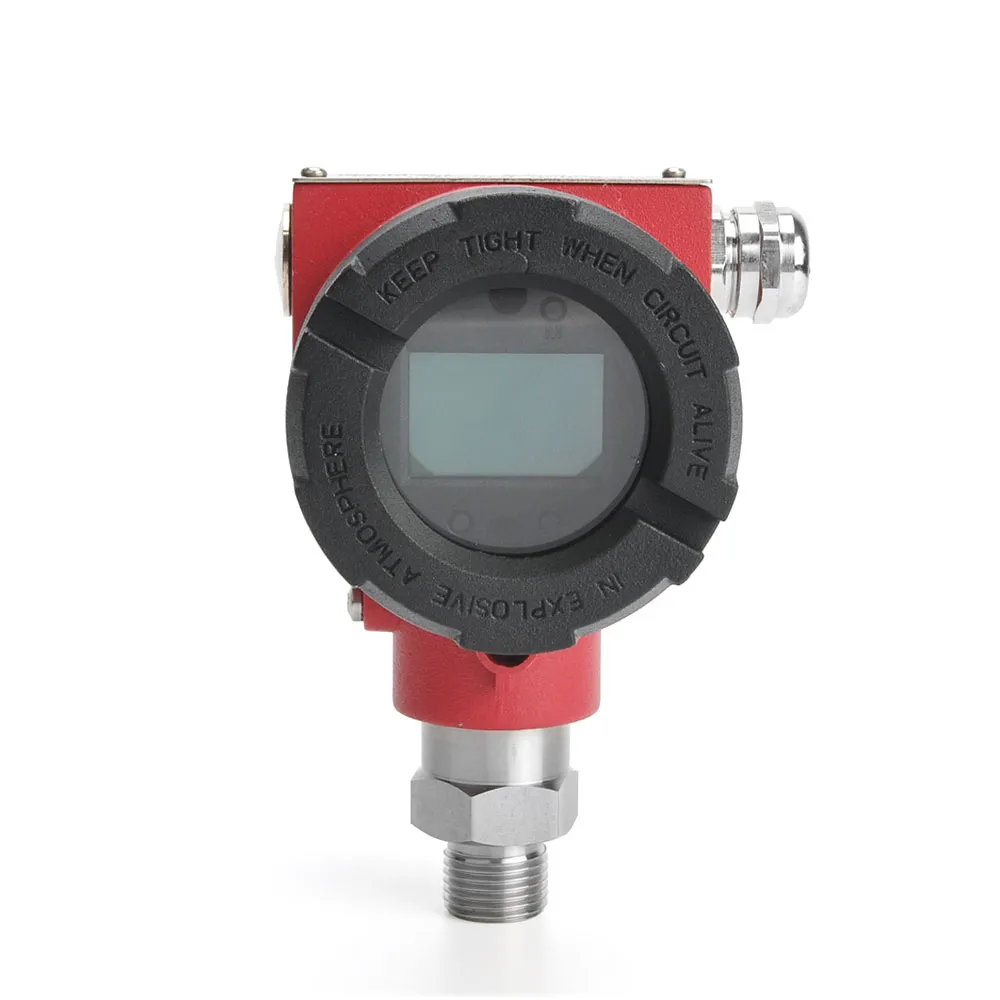

| On-site display | LCD digital display |
| Wetted material | SS304 |

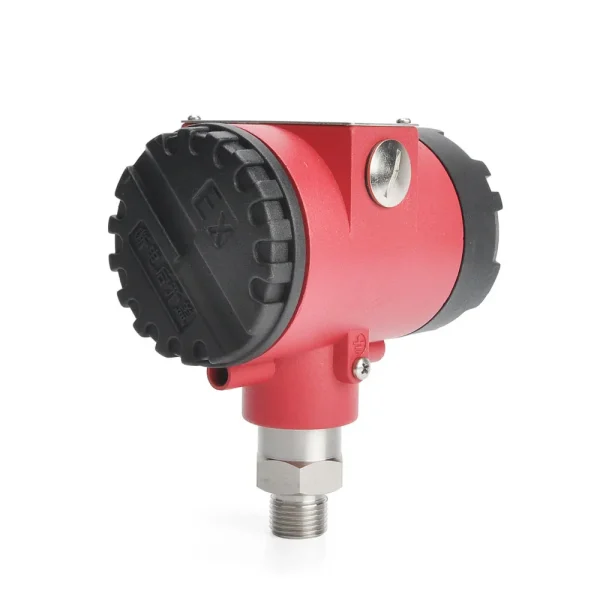

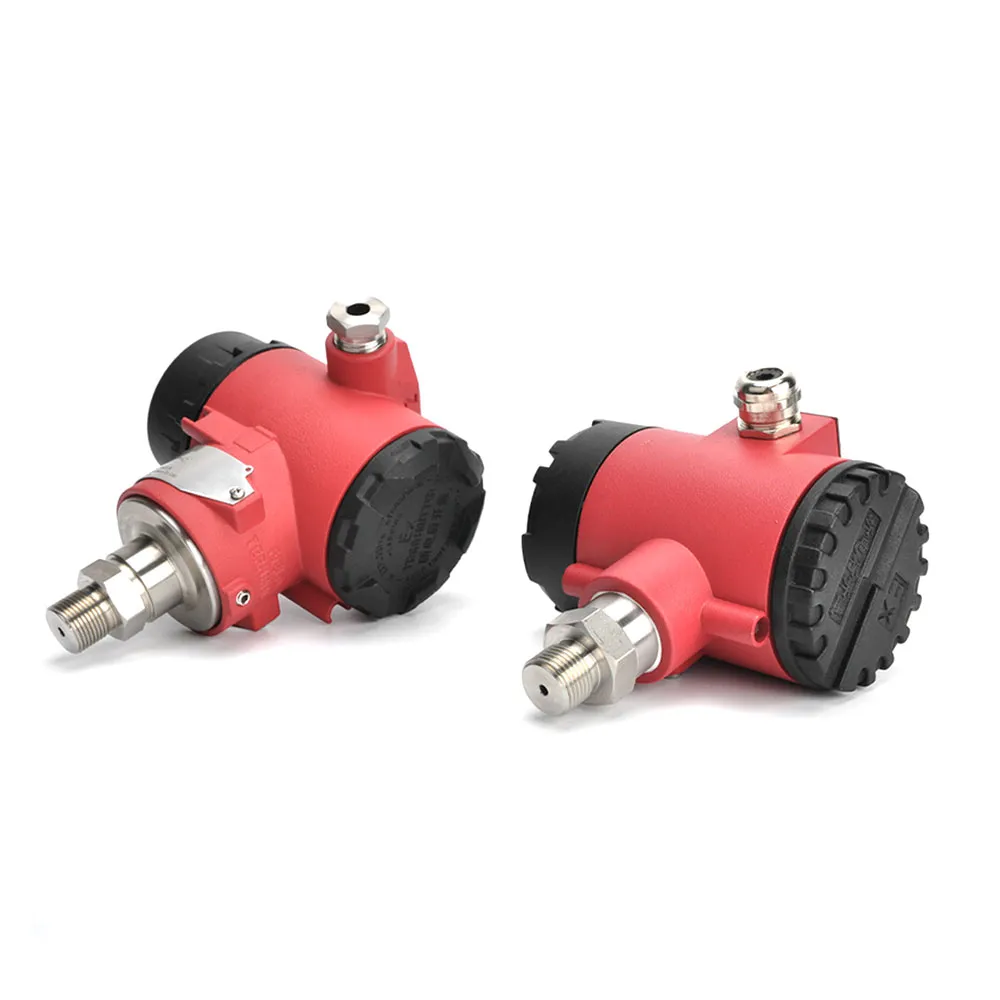

| Housing material | Flameproof Aluminum housing ‐2088 |
| Protection grade | IP67 |
| Electrical Connection | Ex-proof metal gland ; M20*1.5 Ex-proof gland (external) ; M20*1.5 Ex-proof gland (internal) ; 1/2NPT Ex-proof gland (external) ; 1/2NPT Ex-proof gland (internal) ; G1/2Ex-proof gland (external) ; G1/2 Ex-proof gland (internal) ; M20*1.5 plastic gland |
| Process connection | G1/4 ; G1/2 ; 1/2NPT ; 1/4NPT ; M20*1.5, etc. |
Features
1. Use digital circuit compensation technology
2. High precision and high stability

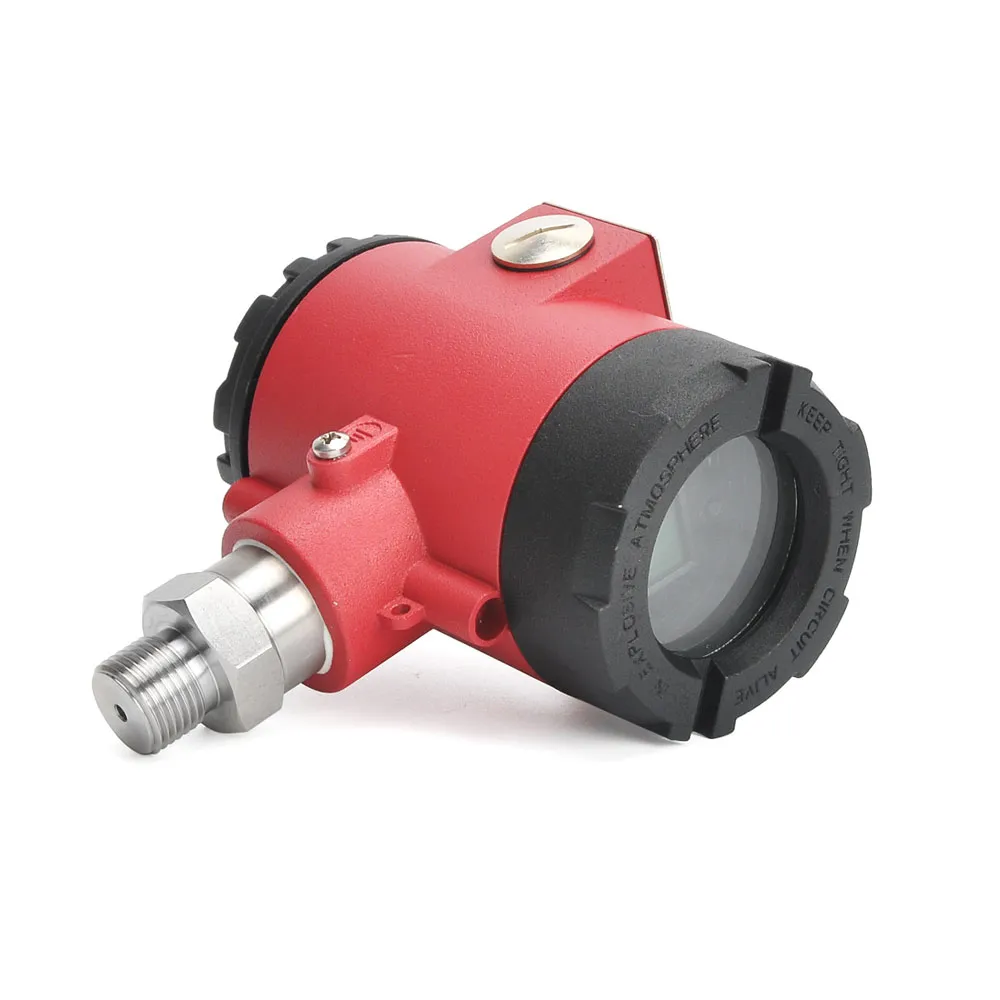

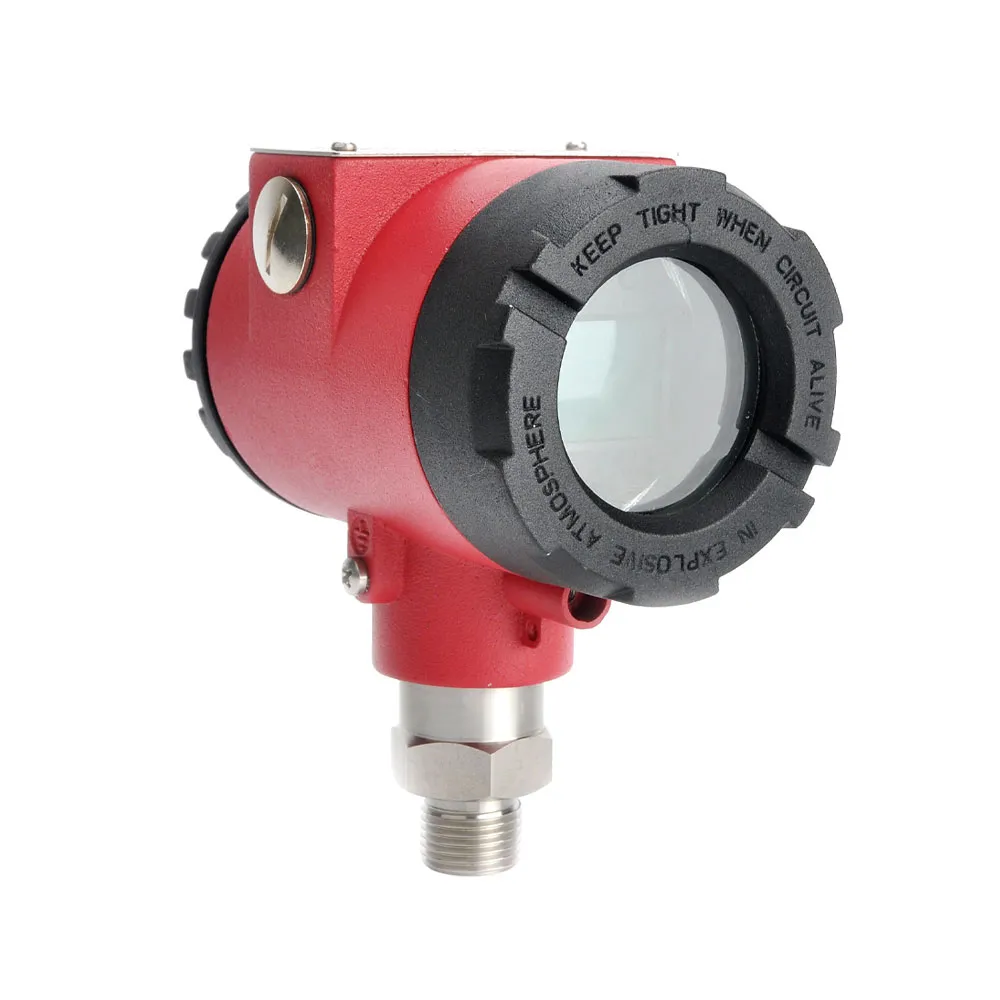

3. Use flameproof housing with LCD display
4. Load HART protocol
Application
1. Oil and gas industry
2. Chemical and petrochemical industry
3. Energy and power industry
4. Urban gas system
5. Coal industry
6. Other working environments with dust/gas explosion risk
