Description
Technical Parameters

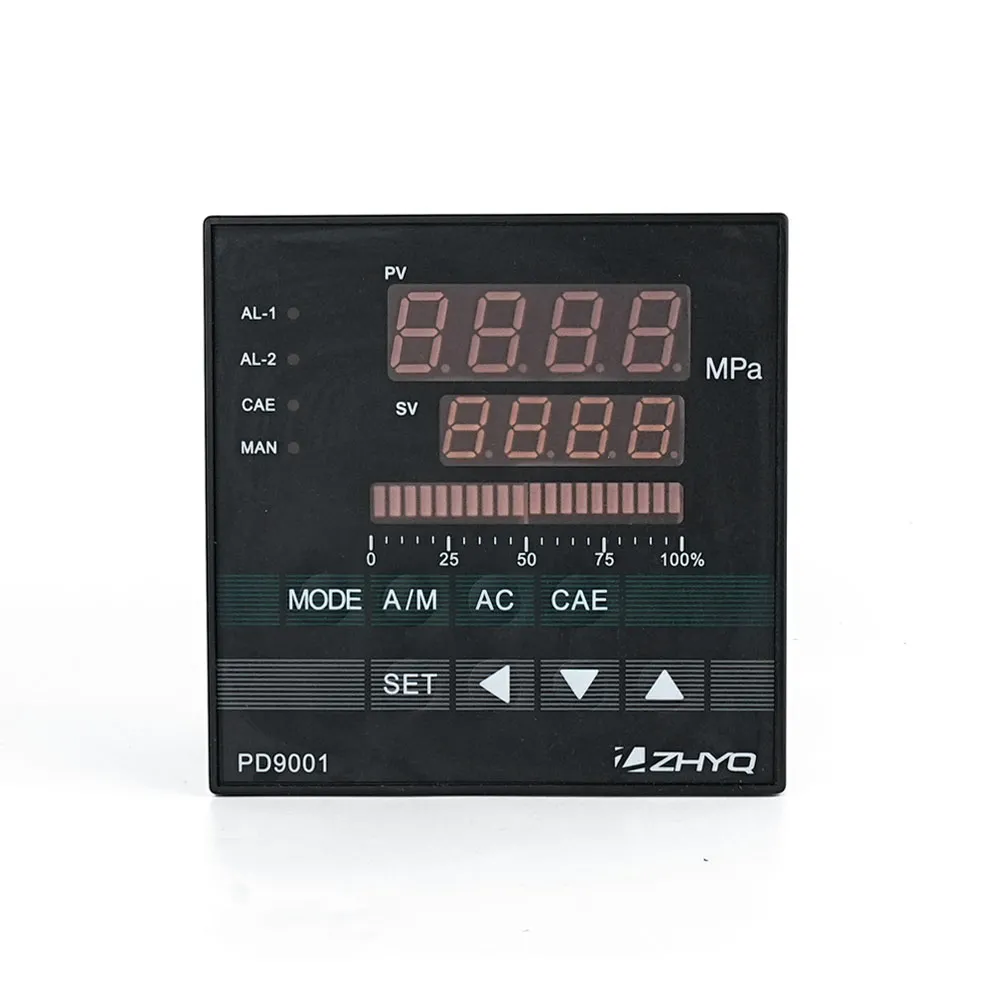

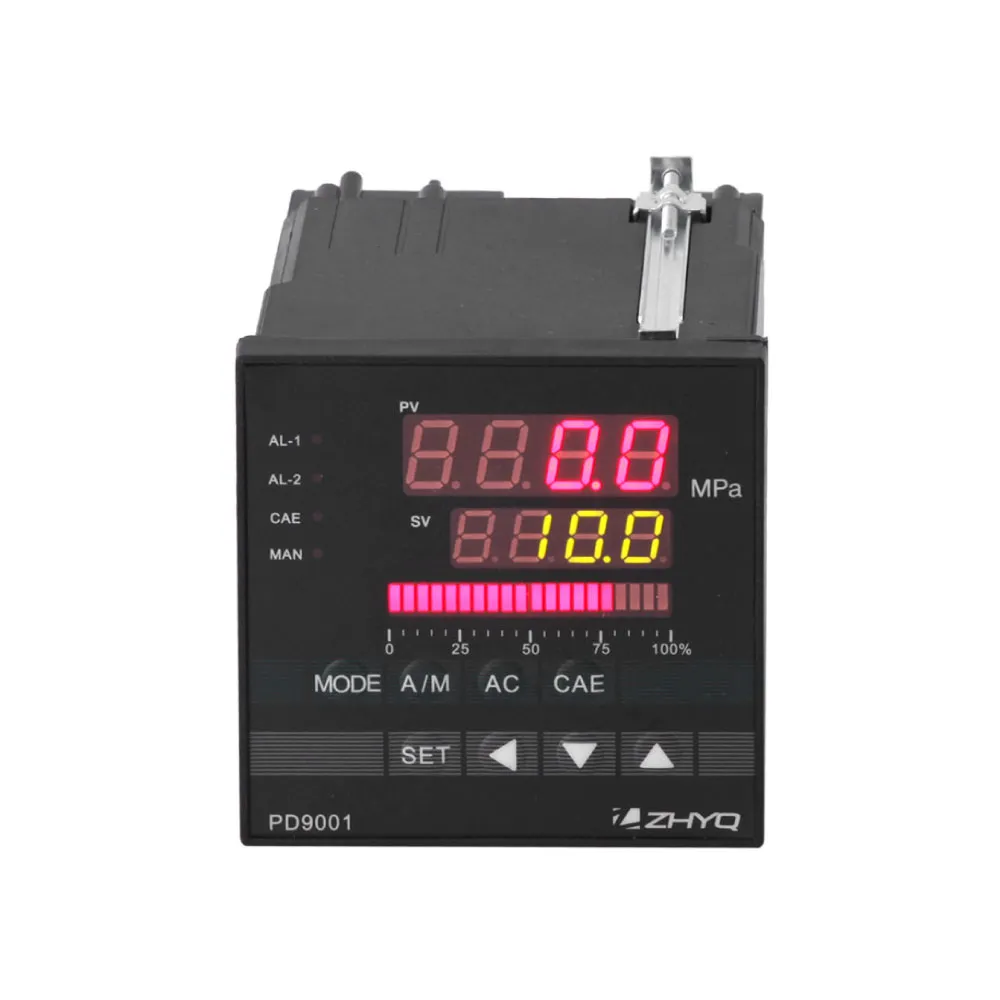

| Display | Double-layer 4-digit high-brightness digital display |
| Electronic bar display | 20 segments electronical bar indicate the output power |
| Display Range | 0000 – 9999 (With decimal point) |
| Accuracy | 0.2%FS ±1bit |
| Indicator | AL-1 ; AL-2 ; CAE(Calibration indication) ; MAN(Manual status indication) |
| Pressure range | Programmable settings |
| Sampling frequency | 50 times/s |
| Alarm output | Two relay outputs (programmable) |
| Singal input | 2mV/V ; 3.3mV/V ; 0～10mA ; 0～20mA ; 4～20mA ; 0～5V ; 1～5V ; 0～10V |
| PID output | 4～20mA ; 0～5V ; 0～10V |
| Working ambient | 0 – 55 ℃ (Temperature) ; ≤ 80％ RH (humidity) |
| Power supply | 85 – 265 VAC, 50Hz – 60Hz |
| Dimension | 96mm x 96mm x 100mm |
| Mounting hole size | 92mm x 92mm |
Features
1. PID adjustment control can be performed
2. Manual and automatic switching is possible without disturbance
3. Accurate display and strong anti-interference ability
4. Can replace similar products
Application
1. Gas pipeline/storage tank pressure stabilization control
2. Hydraulic and pneumatic transmission system: hydraulic press pressure precision control, pneumatic actuator pressure regulation
3. Chemical and petroleum refining: reactor pressure safety control, distillation tower operating pressure optimization
4. Power and energy equipment: boiler steam pressure regulation, gas turbine intake pressure control
5. Food and pharmaceutical process: sterilization kettle pressure coordinated control, vacuum packaging machine pressure control
6. Sewage treatment equipment pressure control
