On-site Display Pressure Transmitter

Description

Technical Parameters

Pressure range -0.1MPa~0~0.1Mpa; 0~150MPa
Overload 150%FS
Comprehensive accuracy 0.1%FS ; 0.25%FS ; 0.5%FS ;1%FS
Long term stability ±0.1%FS/year
Non-linearity 0.1%FS
Repeatability 0.1%FS
Singal output 4‐20mA ;  0‐5V ; 0‐10V ; RS485 ; Switch-NPN ; Switch-PNP
Power supply 24(12~36V)DC
Storage temperature ‐20~85℃
Operating temperature ‐10~85℃
Compensation temperature 0~60℃
Wetted material SS304;SS316L(Customizable)
Housing material SS304
Protection grade IP65
Explosion-proof Intrinsically safe explosion-proof
Electrical Connection Hirschmann A type
Process connection G1/4 ; G3/8 ; G1/2 ; 1/2NPT ; 1/4NPT ; M14*1.5 ; M20*1.5, etc.

Features

1. The pressure value can be read on site
2. A variety of industrial standard signal outputs are available
3. Simple appearance design, high cost performance
4. Zero adjustment and full adjustment functions can be added as required
5. A variety of pressure interfaces are available

Application

1. Mechanical engineering applications
2. Measurement of various water pressures and air pressures
3. Medical and health applications
4. Food and beverage processing industry
5. General industrial control field

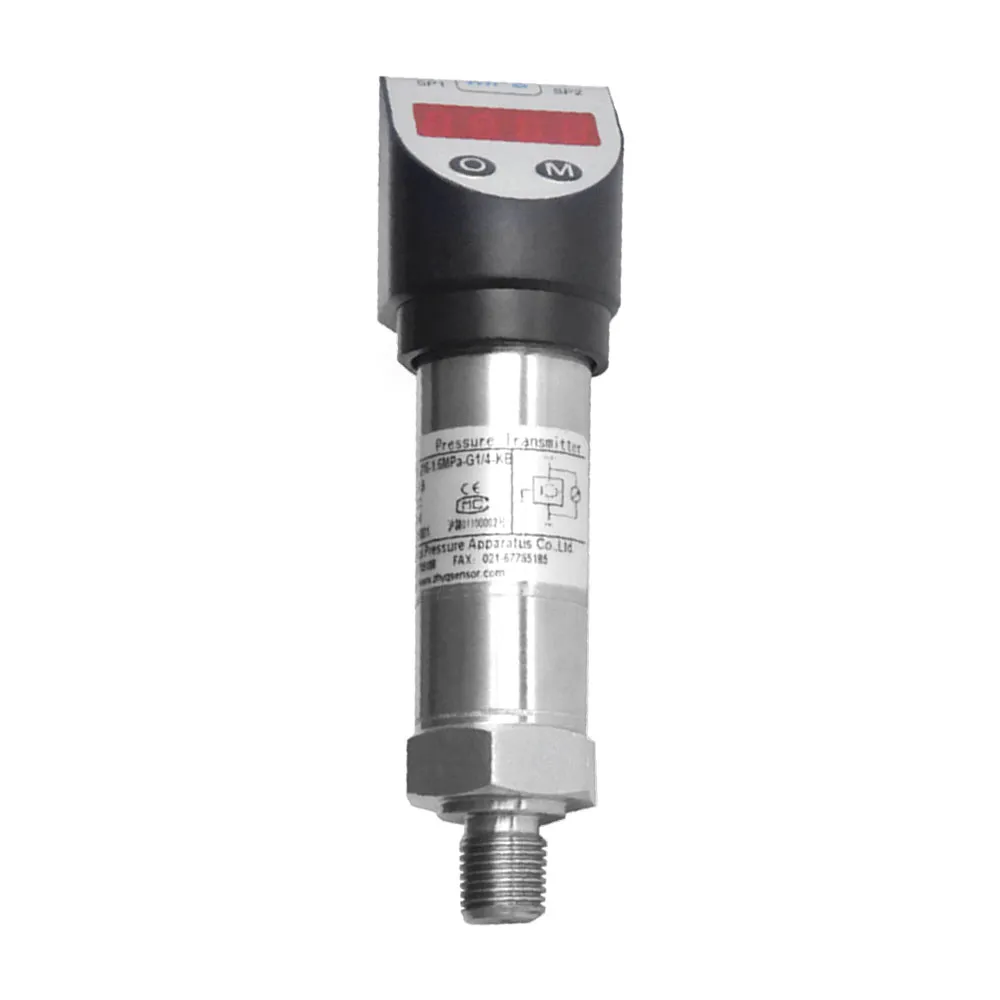

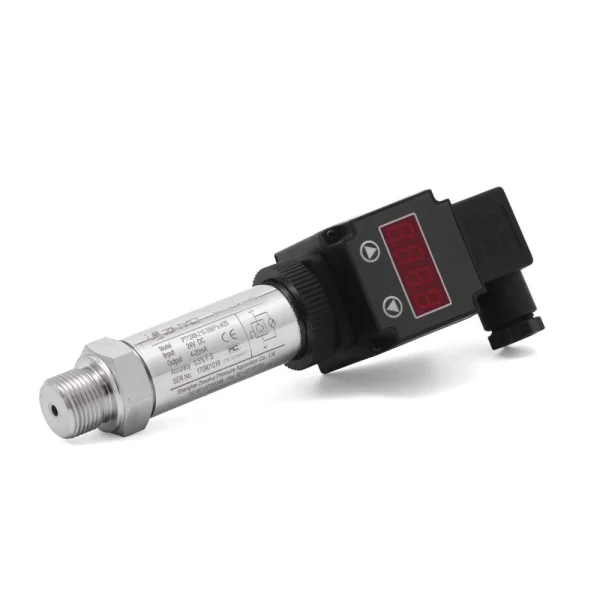

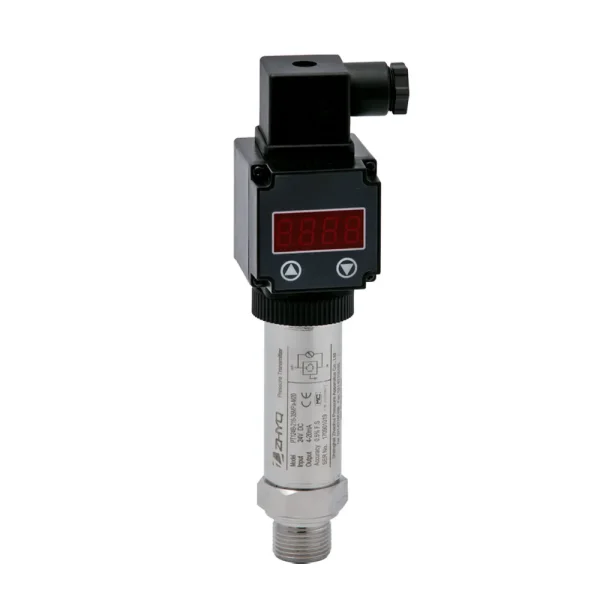

On-site Display Pressure Transmitter

Model:PT124B-216

PT124B-216 on-site display pressure transmitter is mainly used for measuring low-range pressure. This product adopts electronic ceramic technology, there is no medium liquid in the measuring element, digital display, and has the characteristics of strong overload resistance, strong impact resistance, high precision and reliability, high long-term stability, wide temperature range, and corrosion resistance.
