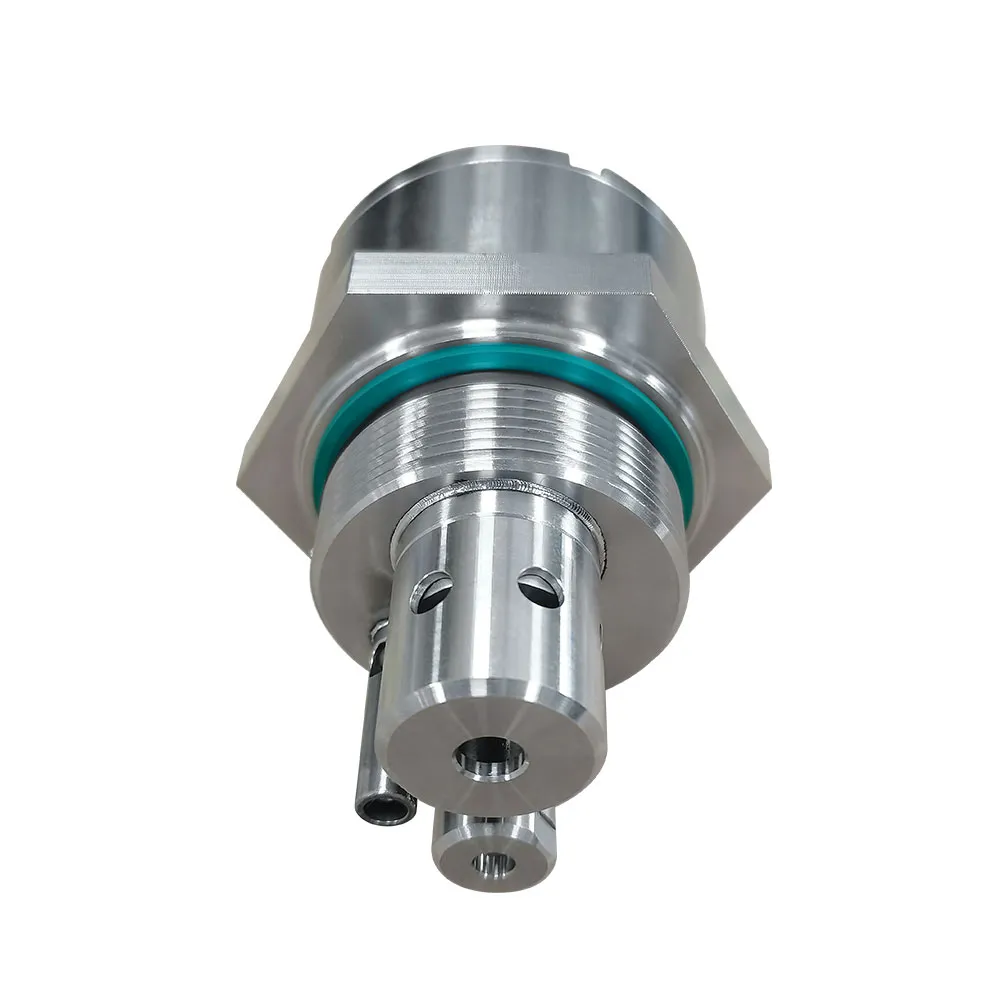

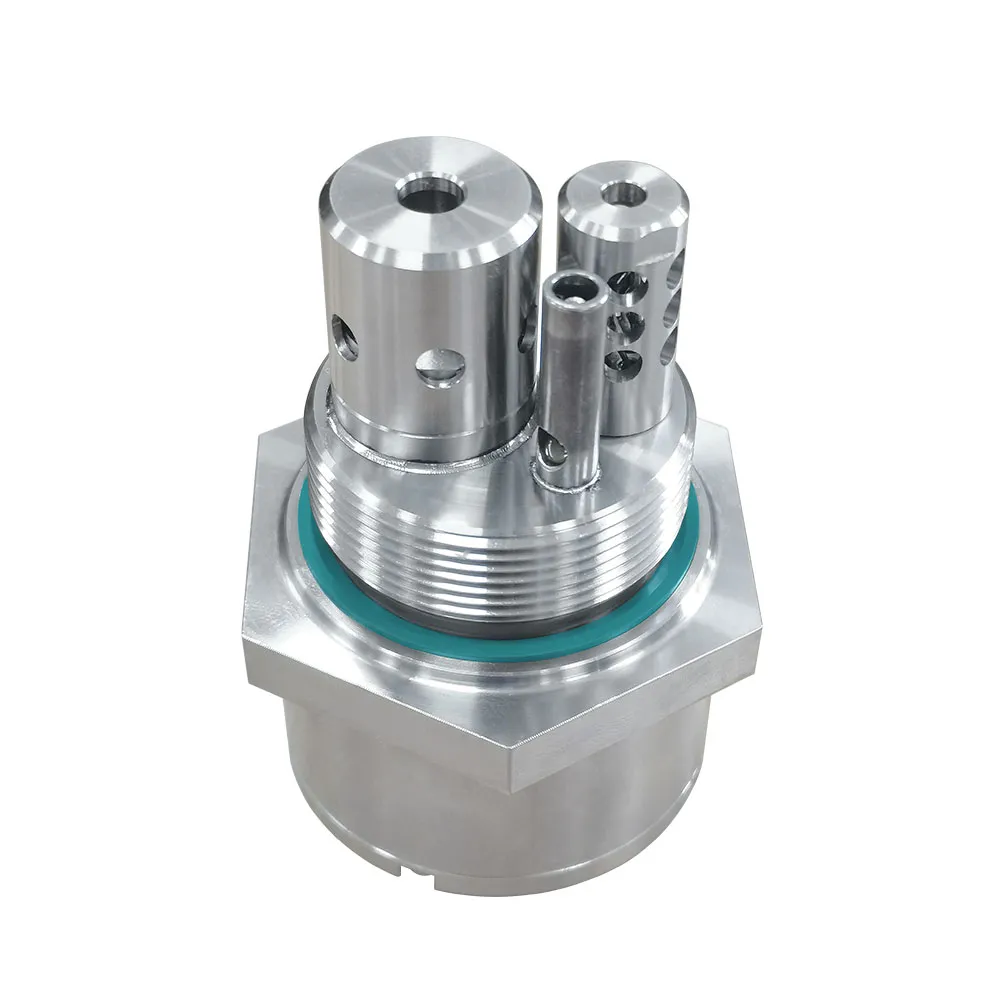

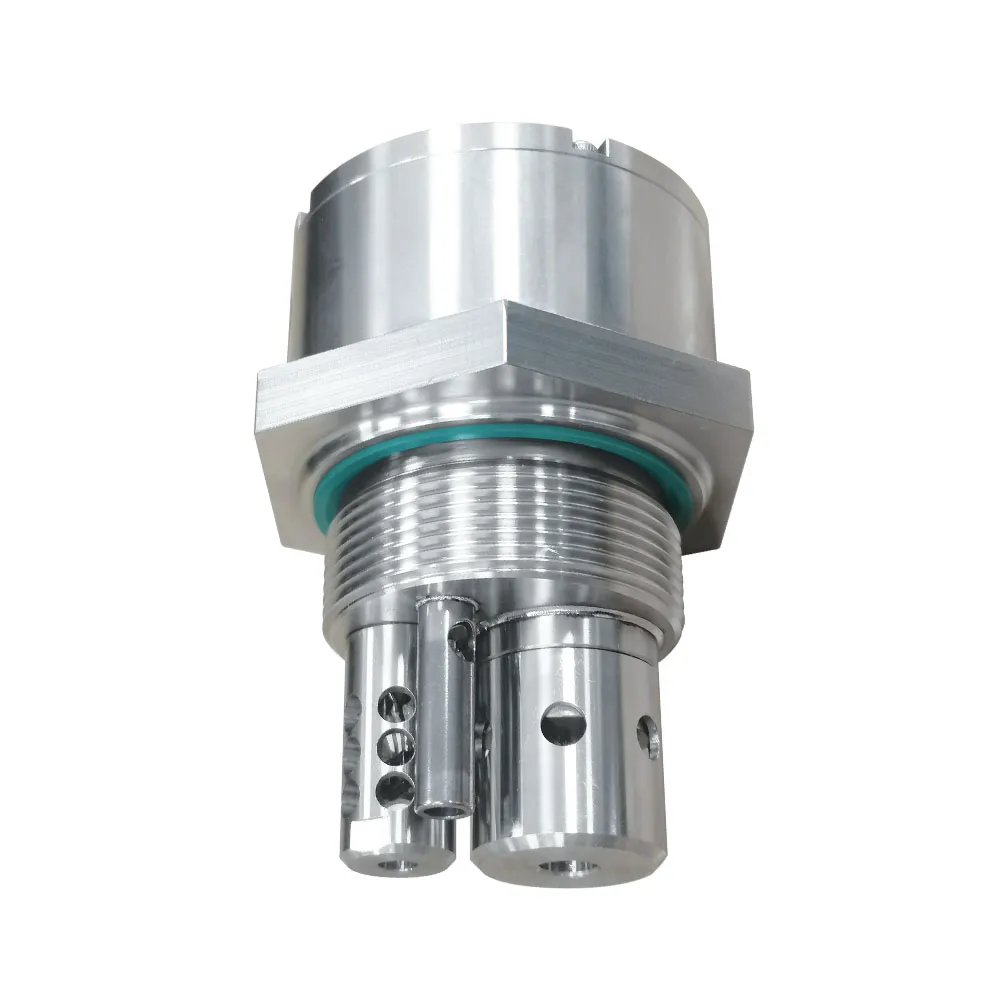

Description
Technical Parameters
| Measurement parameters | moisture (PPM) ; density (kg. M (M27)) ; dynamic viscosity (CP) ; dielectric constant ; water activity ; temperature (℃) |
| Measurement range | water content: 0-30000 ppm (calibrated according to different oil products) |
| density: 600 kg.m3~1250 kg.m3 | |
| viscosity: 1cP~400cP(500cSt) | |
| water activity: 0~1aw | |
| dielectric constant: 1~6 | |
| temperature: 0℃~100℃ | |
| Accuracy | water content: 10% or 10ppm (the larger of the two) |
| density: 2% or 5kg.m3 (the larger of the two) | |
| viscosity: 5% or 1cp (the larger of the two) | |
| water activity: 3% | |
| dielectric constant: 5% | |
| temperature: 0.5℃ | |
| Resolution | water content: 1ppm |
| density: 0.1 kg.m3 | |
| viscosity: 0.1cP | |
| water activity: 0.001 | |
| dielectric constant: 0.01 | |
| temperature: 0.1℃ | |
| Response time | less than 30 seconds (the first time) , the data is refreshed once per second |
| Digital signal | RS485 MODBUS RTU |
| Supply voltage | DC 9V-32V@RS485 ；DC20V-32V@4-20mA |
| Power consumption of the whole machine | < 20mA@24VDC RS485 |
| Probe pressure resistance | Max 10bar (If you want larger range, please consult our engineer) |
| Fluid temperature | 0℃~ 100℃ |
| Ambient temperature | -40℃~ 85℃ |
| Storage temperature | -40℃~ 80℃ |
| Housing material | SS316 ; SS304 ; Hastelloy |
| Mechanical interface | G1-1/2” |
| Weight | 550g |
| The protection grade | IP65 |
| Sealing material | FKM fluorine glue |

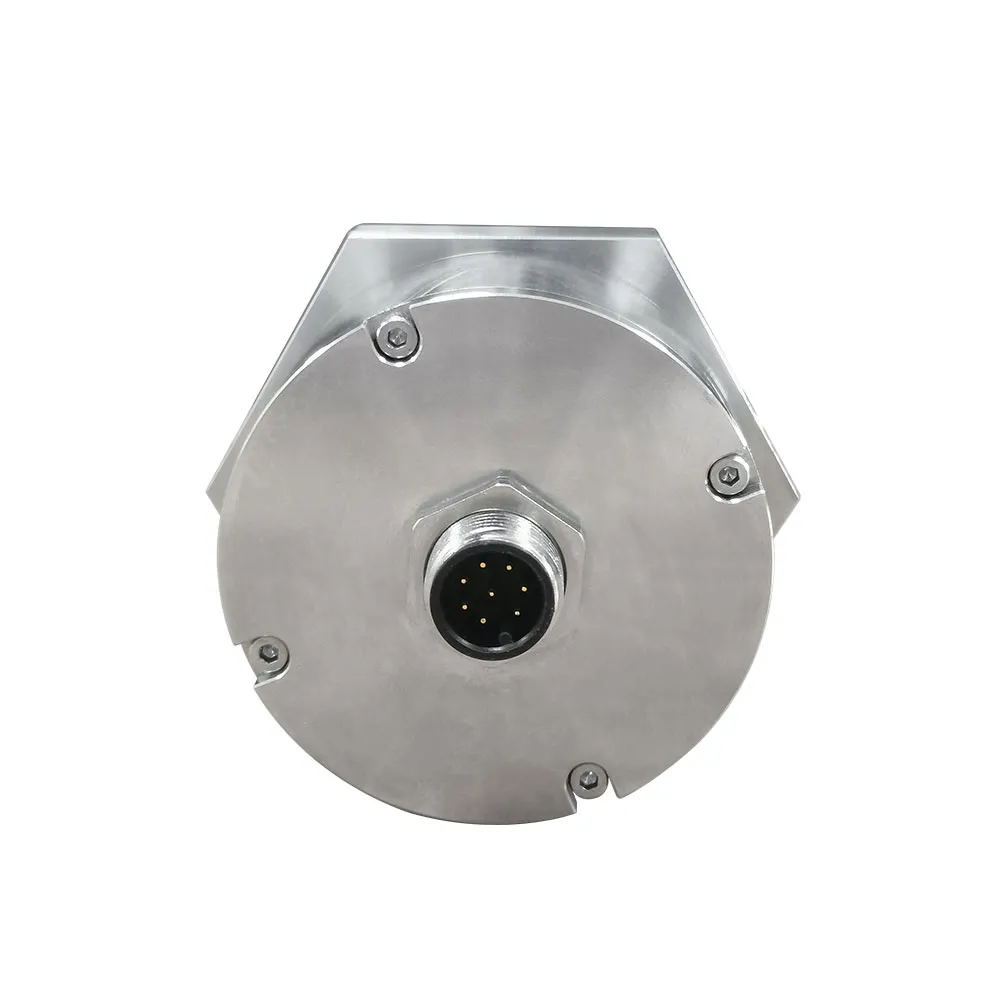

| Cable jumper | 2m M12 8 core |
| Peak flow rate | <0.3m/s |
| Explosion-proof | Ex Ia IIB T6 Ga (optional) |
| Electromagnetic compatibility | EN 61326-1 EN 61326-2-3 ICES-003 B Class |
Features
1.Up to six oil parameters-moisture, density, viscosity, water activity, dielectric constant and temperature.
2.The accruacy is up to 5 kg m3.
3.The viscosity ranges from 1 to 1~400cp, and the accuracy reaches 5%.
4.Wide allowable fluid temperature, quick response from 0℃ to 100℃, data refresh every second.
5.Measurement is not affected by external vibration.
6.Full stainless steel, suitable for online monitoring robustness requirements has excellent chemical corrosion resistance and pressure resistance.
7.No moving parts, no consumable parts, 10-year-life
8.Compact structure, easy system integration convenient field calibration integration
Application
1.Oil storage and transportation
2.Refining, oil industry
3.Wind power generation
4.Thermal power generation and other power generation industries
5.Aviation, marine, railway and other transportation industries
6.Offshore projects such as drilling rigs
7.Equipment for large construction machinery
8.Transportation vehicles
9.Seawater treatment and testing equipment
10.Oil treatment equipment
11.Chemical laboratory analysis
12.Production process quality management
13.Oil treatment and filtration system
14.Paint, ink and printing industry
15.Medical equipment
