Description
Technical Parameters
| Pressure range | -0.1～0～0.1MPa ; 0-150MPa |
| Overload | 150%FS |
| Comprehensive accuracy | 0.5%FS ; 1%FS |
| Long term stability | ±0.2%FS/year |
| Non-linearity | 0.2%FS |
| Repeatability | 0.2%FS |
| Singal output | 4‐20mA ; 0‐5V ; 0‐10V ; RS485 |
| Power supply | 24(12~36V)DC |
| Storage temperature | ‐40～85℃ |
| Operating temperature | ‐20～125℃ |
| Compensation temperature | ‐10～80℃ |
| On-site display | LCD digital display |
| Wetted material | SS304(customizable) |
| Housing material | Flameproof Aluminum housing ‐2088 |
| Protection grade | IP67 |
| Electrical Connection | Ex-proof metal gland ; M20*1.5 Ex-proof gland (external) ; M20*1.5 Ex-proof gland (internal) ; 1/2NPT Ex-proof gland (external) ; 1/2NPT Ex-proof gland (internal) ; G1/2Ex-proof gland (external) ; G1/2 Ex-proof gland (internal) ; M20*1.5 plastic gland |
| Process connection | G1/4 ; G1/2 ; 1/2NPT ; 1/4NPT ; M20*1.5, etc. |
Features
1. Use high temperature resistant sensitive components

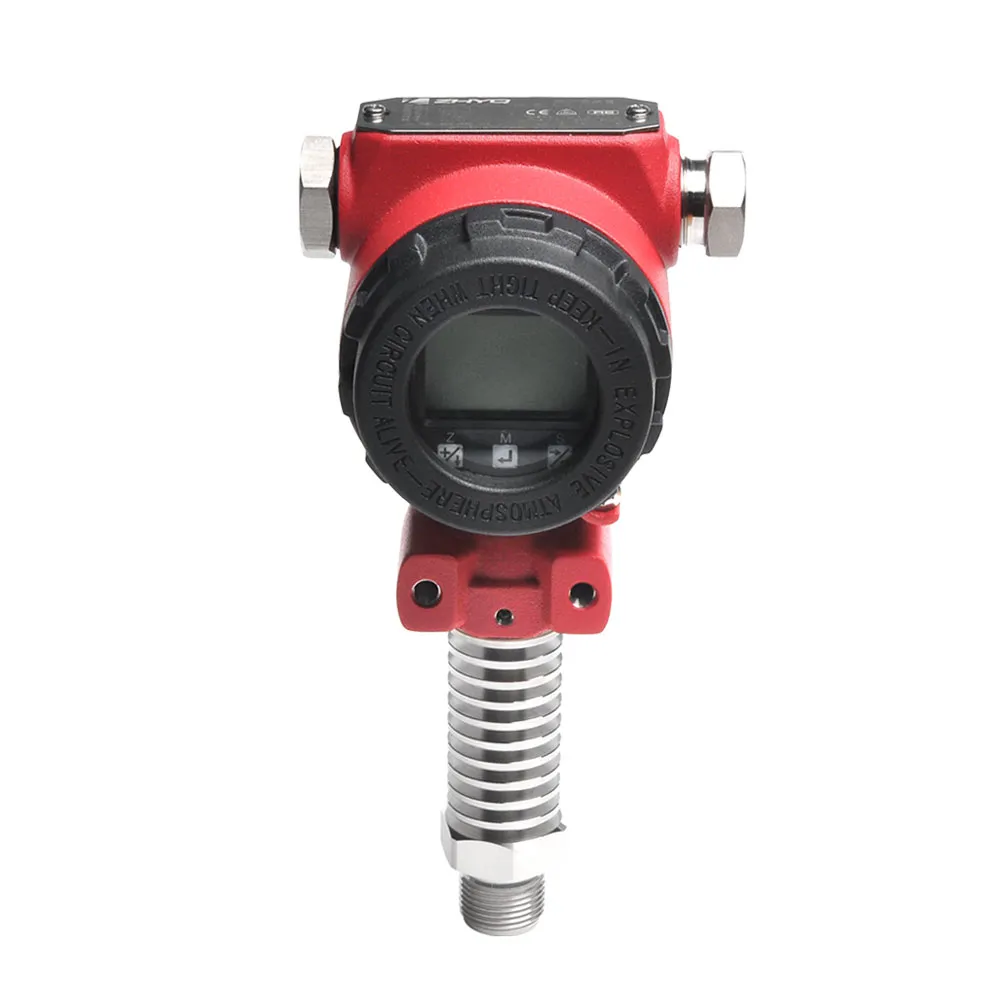

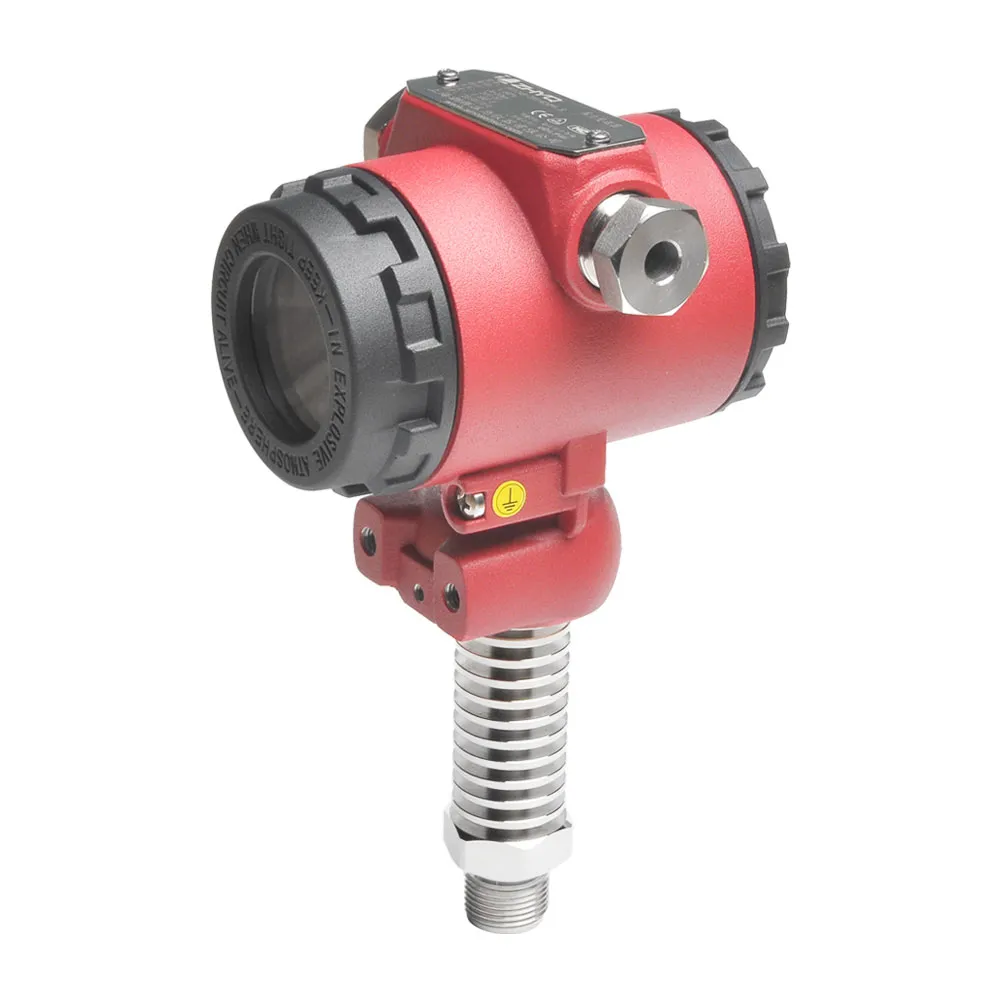

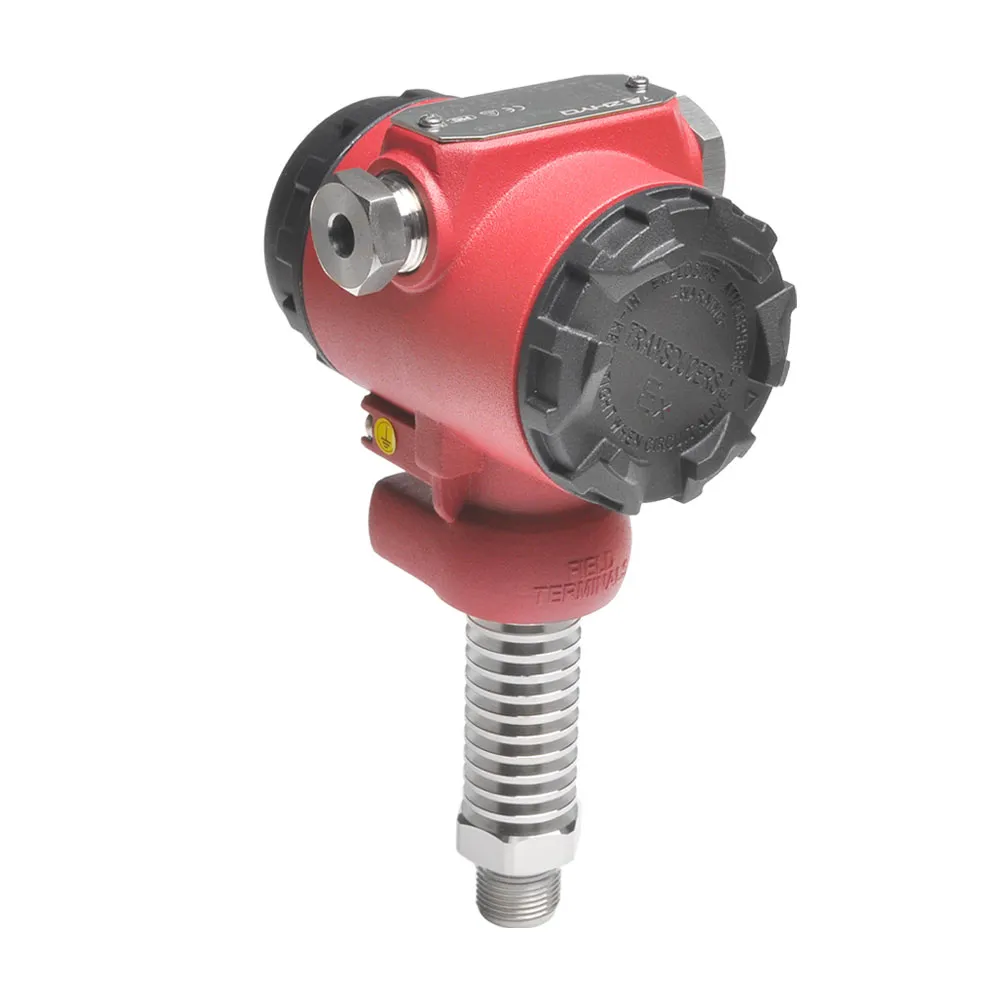

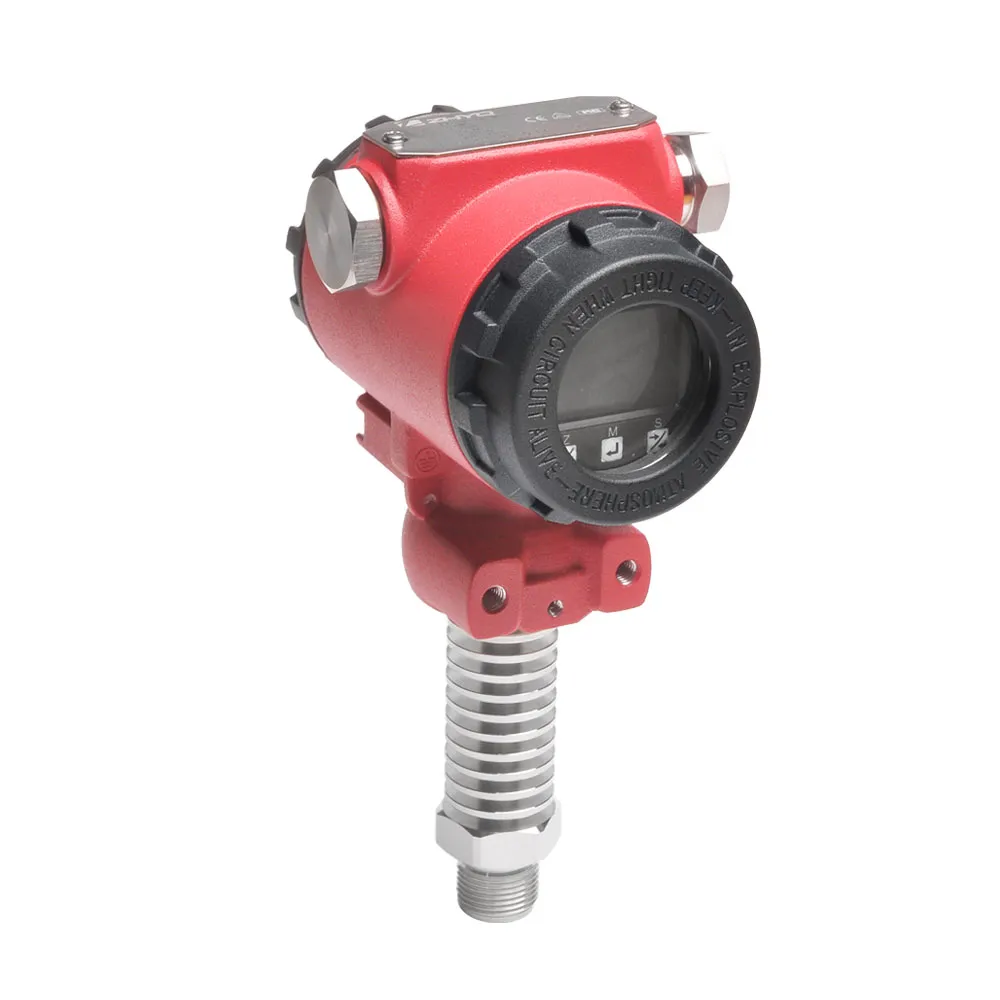

2. Flameproof explosion-proof housing with LCD display

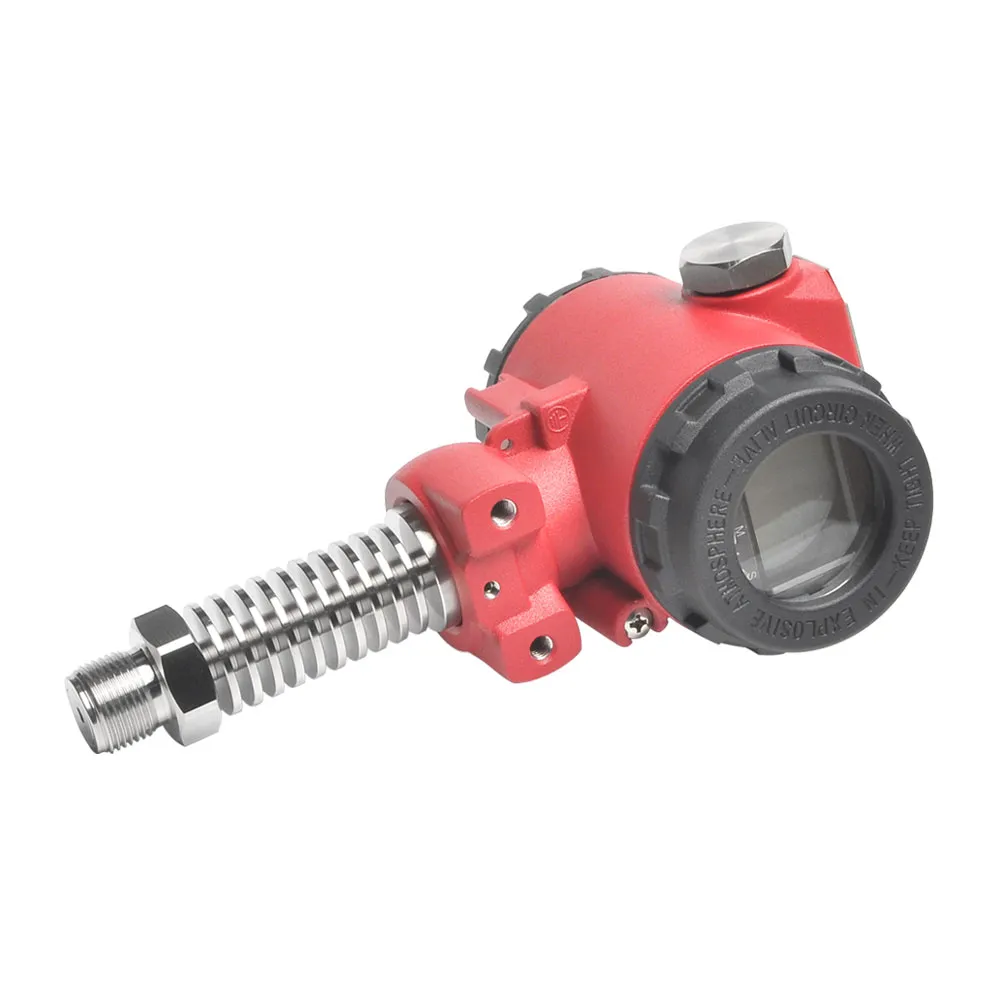

3. The measuring port and the explosion-proof housing are isolated by a heat sink device
4. Can work stably for a long time at a high temperature of 125℃
Application
1. Oil and gas industry
2. Chemical and petrochemical industry
3. Energy and power industry
4. Metallurgy, pharmaceutical production
5. Food production, winemaking
