Low Pressure Differential Pressure Sensor

Description

Technical Parameters

Application types Low pressure (monocrystalline silicon)
Pressure type Differential pressure
Measurement range -100kPa~0-10kPa~300kpa
Power supply 5V DC
Analog signal 4-20mA with HART
Digital signal RS485
Input impedance 5K~7KΩ
Output impedance 5K~7KΩ
Comprehensive accuracy ±0.1%FS ; ±0.25%FS ; ±0.5%FS
Operating temperature -40℃~85℃
Long term stability ±0.05%/year
Insulation resistance 100MΩ
Isolation diaphragm material SS316L ; Hastelloy C
Filling liquid Silicone oil
Natural frequency ≥10KHZ

Features

1. High accuracy
2. Good repeatability and stability
3. Calibration and temperature compensation have been completed
4. Strong ability to measure low-pressure fluctuations

Application

1. Precision control of industrial processes
2. Gas differential pressure and switch
3. Gas and liquid micro differential pressure measurement

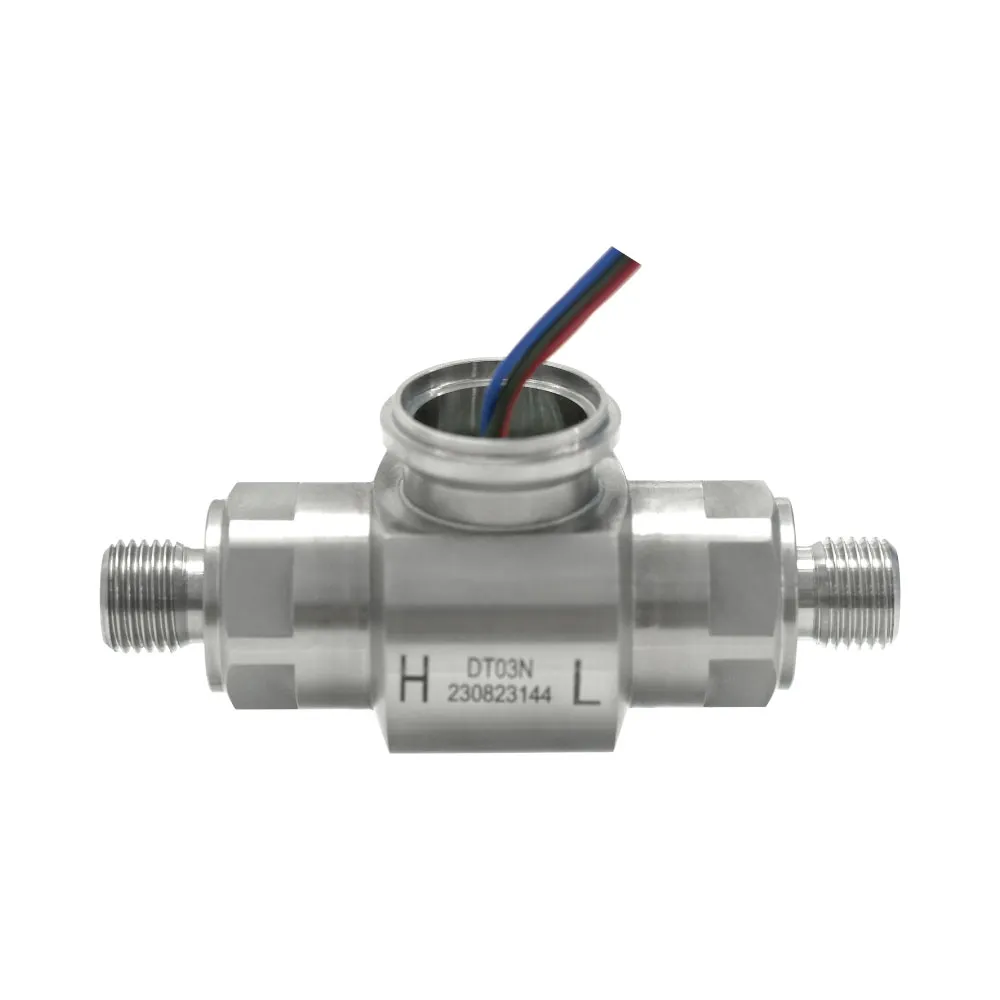

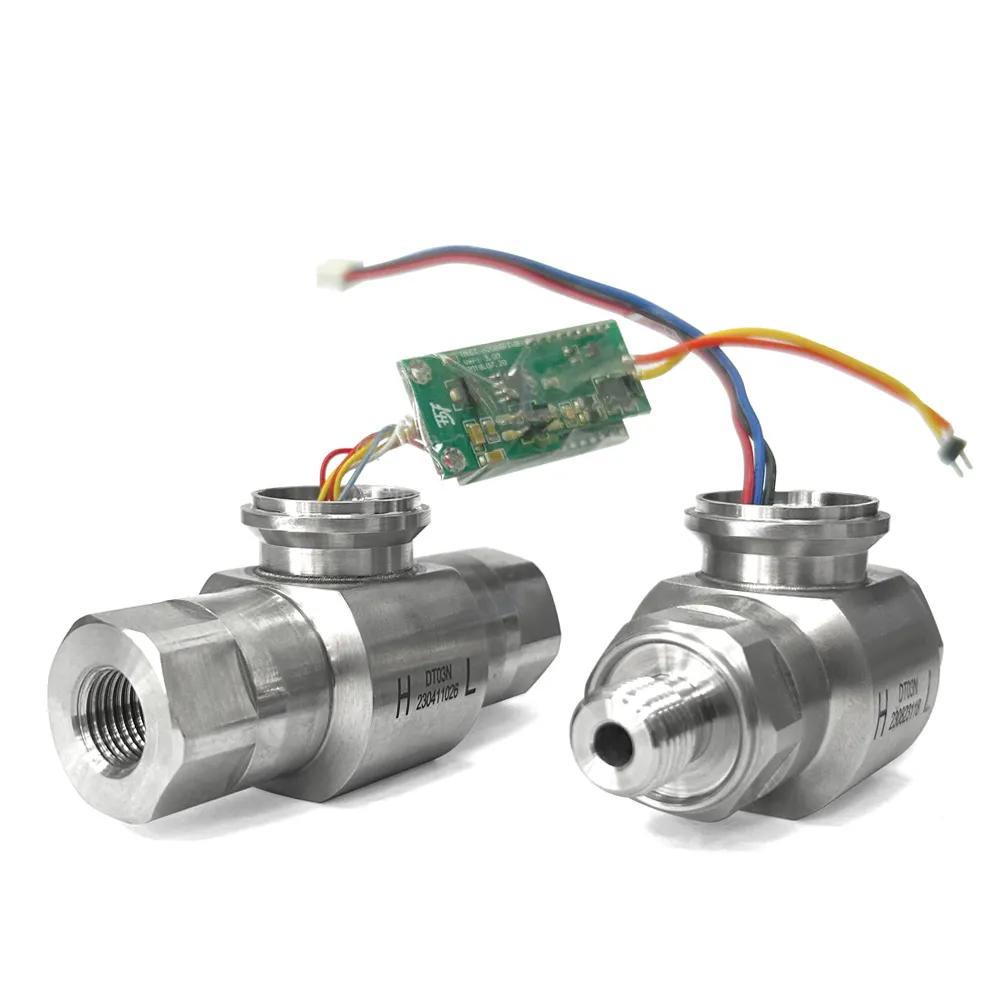

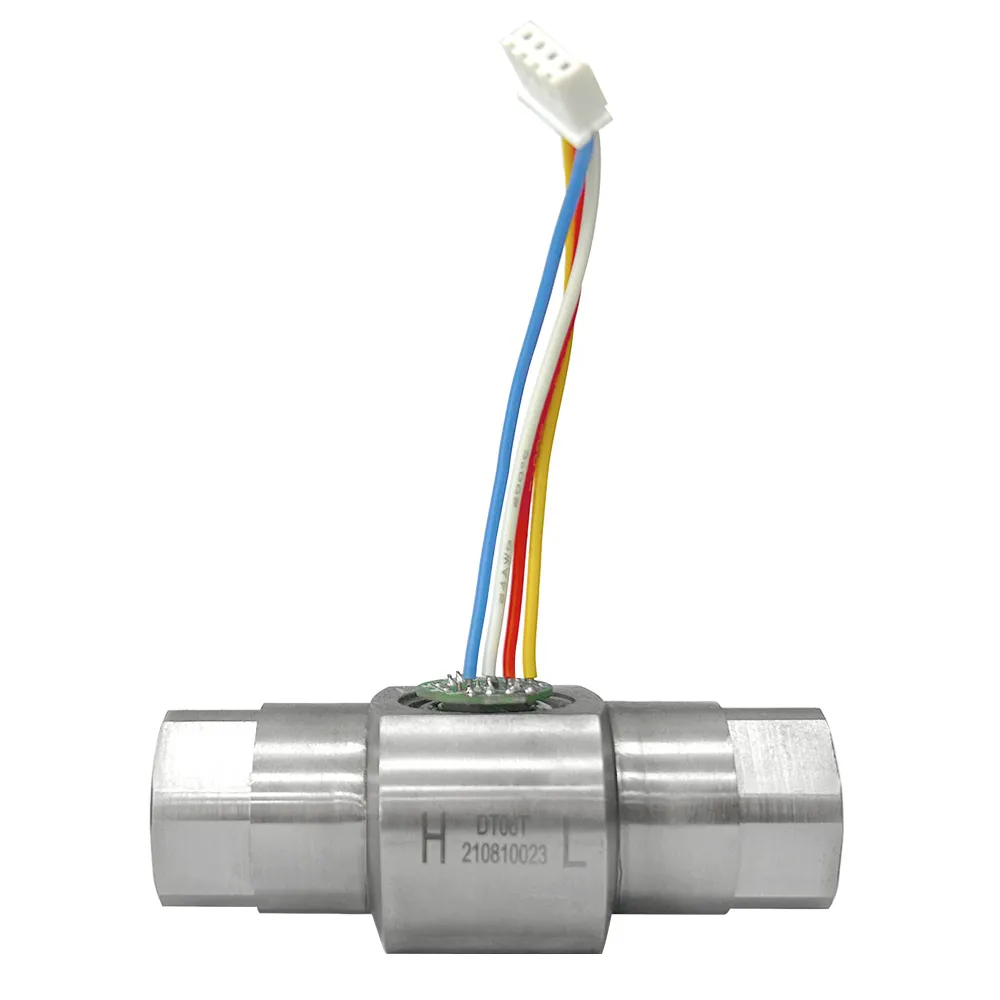

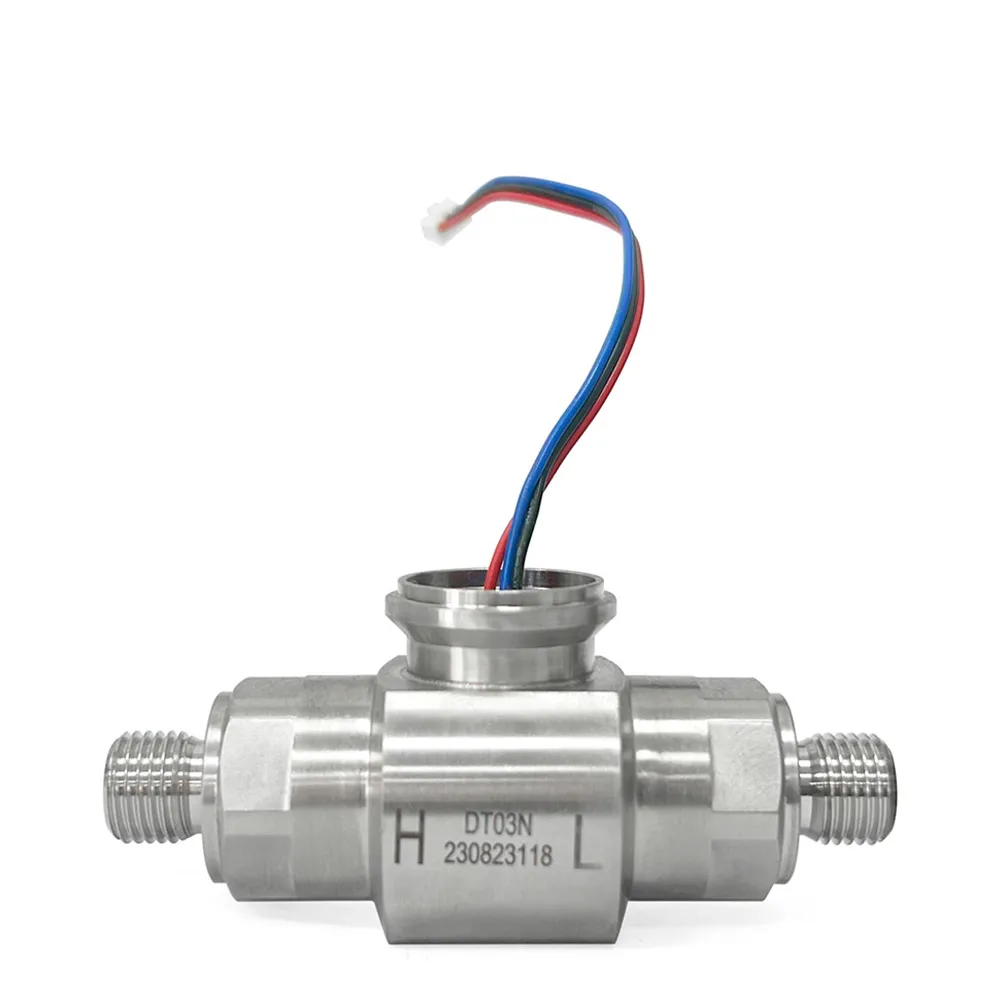

Low Pressure Differential Pressure Sensor

Model:PT124B-202X

PT124B-202X low pressure differential pressure core is a pressure core with an integrated structural design. The product uses high-purity single crystal silicon material as key components, adopts advanced MEMS technology, and is produced in combination with our company’s many years of sensor packaging experience. It has the characteristics of strong resistance to static pressure and high measurement accuracy. The product has been calibrated as required and can output digital or analog signals. It can be used directly after simple packaging.
