Description
Technical Parameters
| Measurement range | 2m H2O |
| Accuracy | 0.1%FS ; 0.25%FS ; 0.5%FS ; 1%FS |
| Long term stability | ±0.2%FS/year |
| Overload | 150%FS |
| Power supply | 12~36V DC |
| Signal output | 4~20mA ; 0-5V ; 0-10V ; RS485 |
| Response Time | ＜3mS |
| Electrical Connection | Gland Lead |
| Storage temperature | -40~85℃ |
| Operating temperature | -20~85℃ |
| Compensation temperature | 0～65℃ |
| Electrical housing material | Flameproof Aluminum Alloy |
| Probe material | SS304 ; SS316L |
| Protection grade | IP68(Probe) , IP67(Electrical housing) |
| Mounting interface | M33*2 ; Flange(DN50) |
Features
1. Biochemical products, oil storage tanks
2. Food and drug process control
3. Other production process measurement and control
Application
1.moist proof, frost proof, seepage prevention
2.Various signal output for industrial standard, flexible calibration
3.High accuracy, good stability
4.High performance pressure-sensitive core with small temperature drift

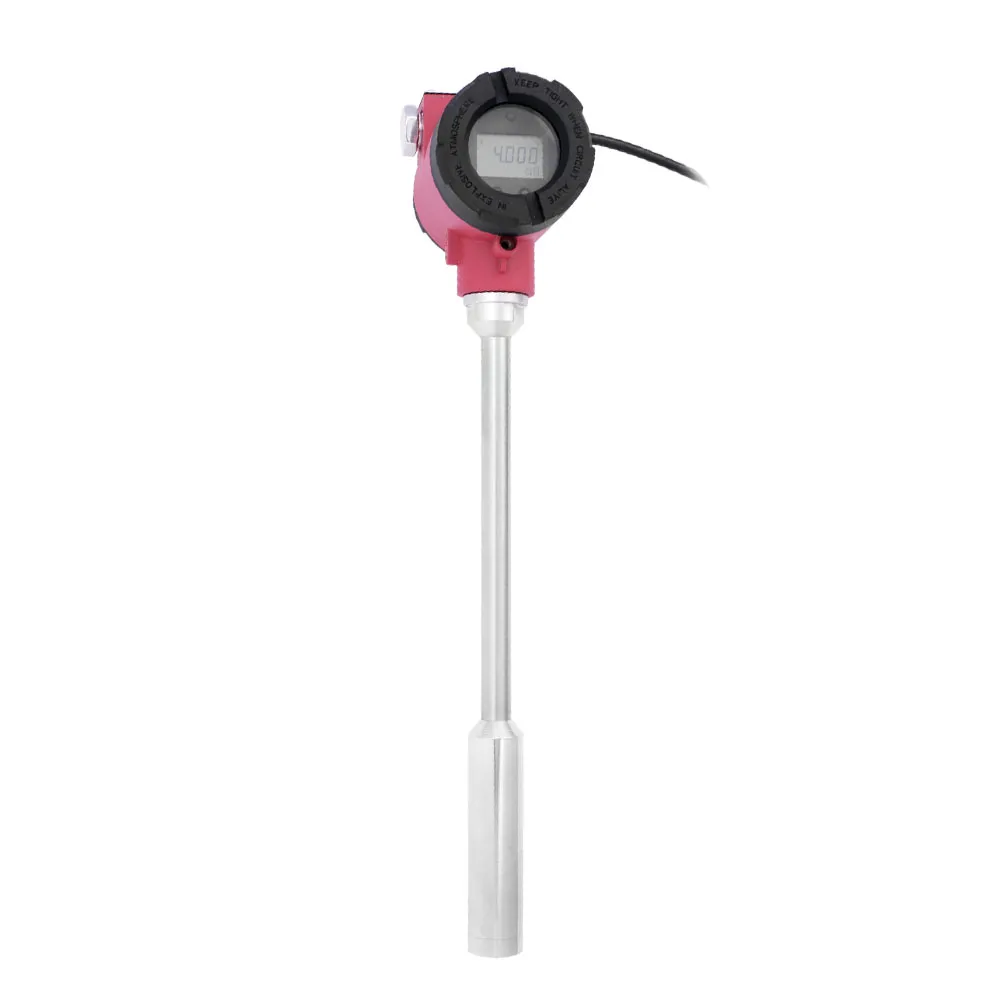

5.With LCD on-site display, on-site adjustment
