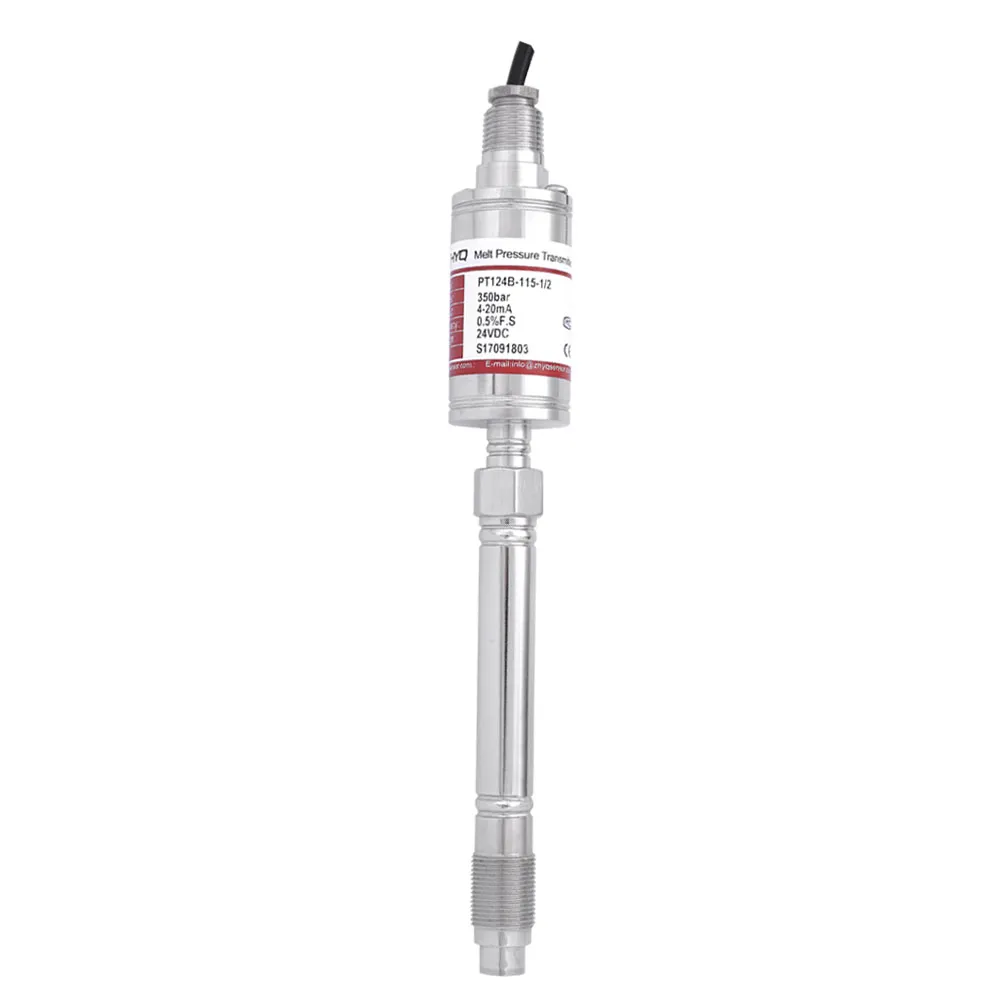

Description
Technical Parameters
| Pressure range | 0~5MPa~200MPa |
| Overload | 150%FS |
| Comprehensive accuracy | ±1%FS(including linearity , repeatability & hysteresis) |
| Singal output | 4-20mA;0-10V;0-5V |
| Power supply | 24(12~36V)DC |
| Internal filling medium | Mercury |
| Wetted material | Stainless Steel Coated with 15-5PH |
| Length of rod | 152;200;250;305;400mm |
| Standard cable | 5000mm |
| Optional cables | 1000;3000;8000;10000mm |
| Operating temperature | Max 400℃ |
| Protection grade | IP67 |
| Insulation resistance | 100MΩ / 250V |
| Zero point adjustment | Support |
| Full scale adjustment | Support |
| Internal calibration | 80% |
| Electrical Connection | 1/2NPT Gland Lead |
| Process connection | 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5 ; G3/4 |
| Temperature measuring element | J、K、E、PT100(optional) |
Features
1. Internal 80% calibration signal
2. All stainless steel welded structure
3. Good stability and repeatability
4. Intrinsically safe explosion-proof design
5. High cost performance and long service life
Application
1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment
