Intelligent LCD Display Melt Pressue Transmitter

Description

Technical Parameters

Pressure range 0~5MPa~200MPa
Overload 150%FS
Comprehensive accuracy ±1%FS(including linearity , repeatability & hysteresis)
Singal output 4-20mA;0-10V;0-5V
Power supply 24(12~36V)DC
Internal filling medium Mercury
Wetted material Stainless Steel Coated with 15-5PH
Length of rod 152;200;250;305;400mm
Standard cable 5000mm
Optional cables 1000;3000;8000;10000mm
Operating temperature Max 400℃
Protection grade IP67
Insulation resistance 100MΩ / 250V
Zero point adjustment Support
Full scale adjustment Support
Internal calibration 80%
Electrical Connection Gland Lead
Process connection 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5 ; G3/4

Features

  • High-standard quality
  • Accuracy better than ±0.5%
  • Stainless steel wetted parts
  • Internal 80% Shunt Calibration
  • Good stability and repeatability
  • Exposed, bendable capillary

Application

  • It can be widely used in various plastic extrusion lines for pressure measuring and control, such as chemical fiber manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical.

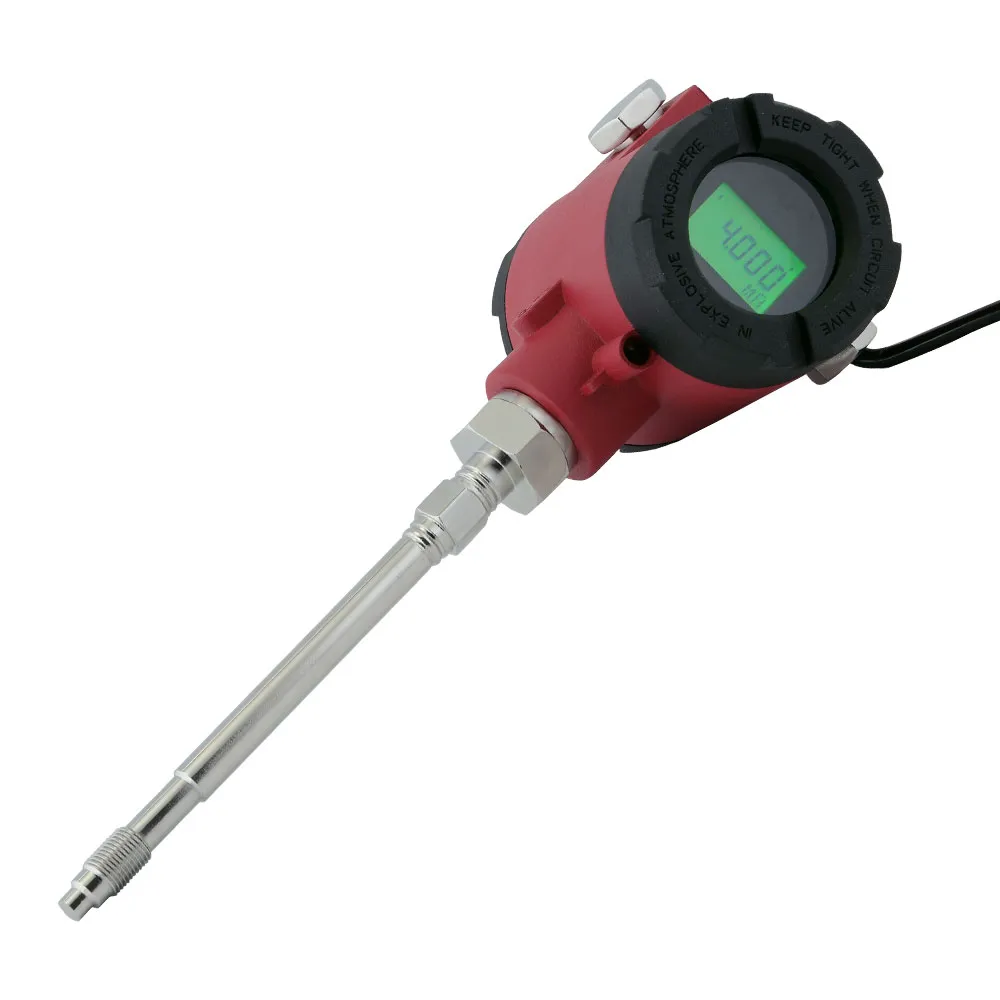

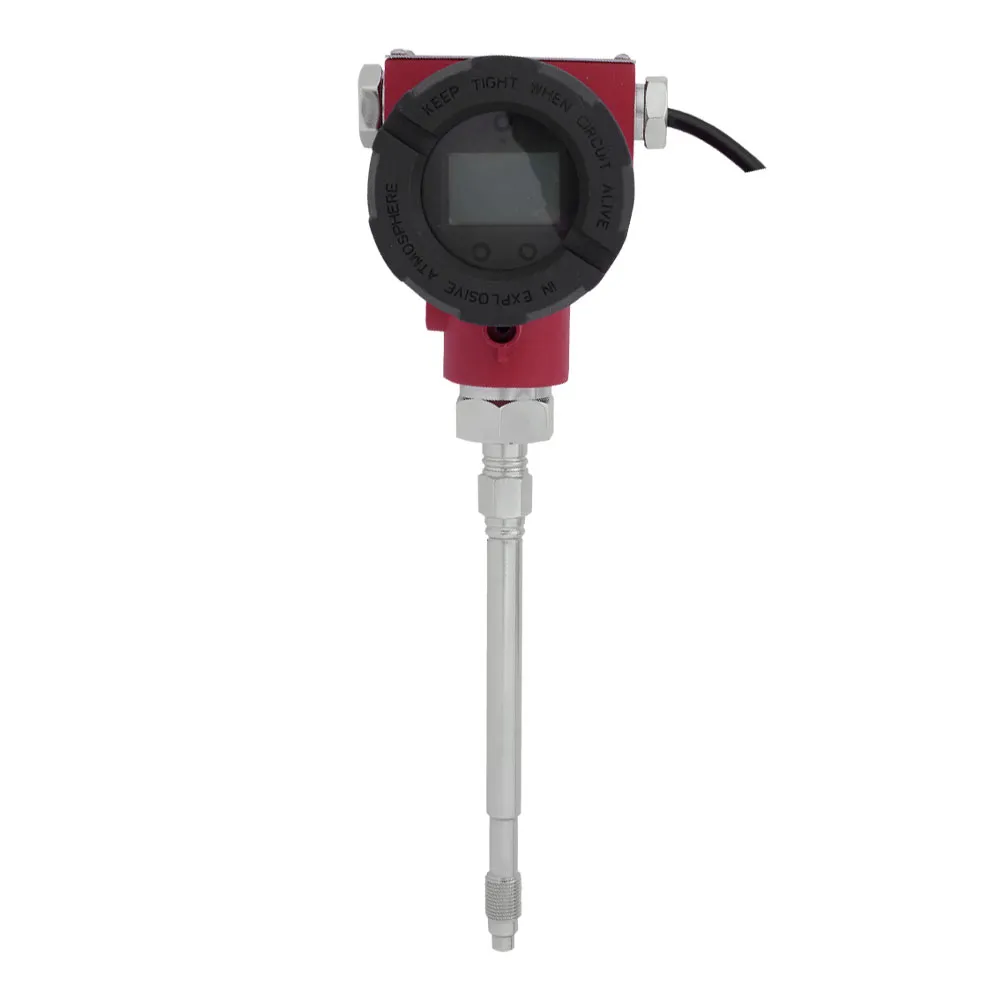

Intelligent LCD Display Melt Pressue Transmitter

Model:PT124B-119

PT124B-119 intelligent LCD display melt pressure transmitter is a high-precision, high-stability pressure measuring instrument designed and produced using digital circuit compensation technology. It uses an aluminum alloy explosion-proof housing and has an LCD display. It can also be used in two-wire 4-20mA HART protocol output occasions.
It is mainly used for pressure measurement and control of high-temperature fluid media in chemical fiber spinning, polyester, and other high-temperature fluid equipment.
