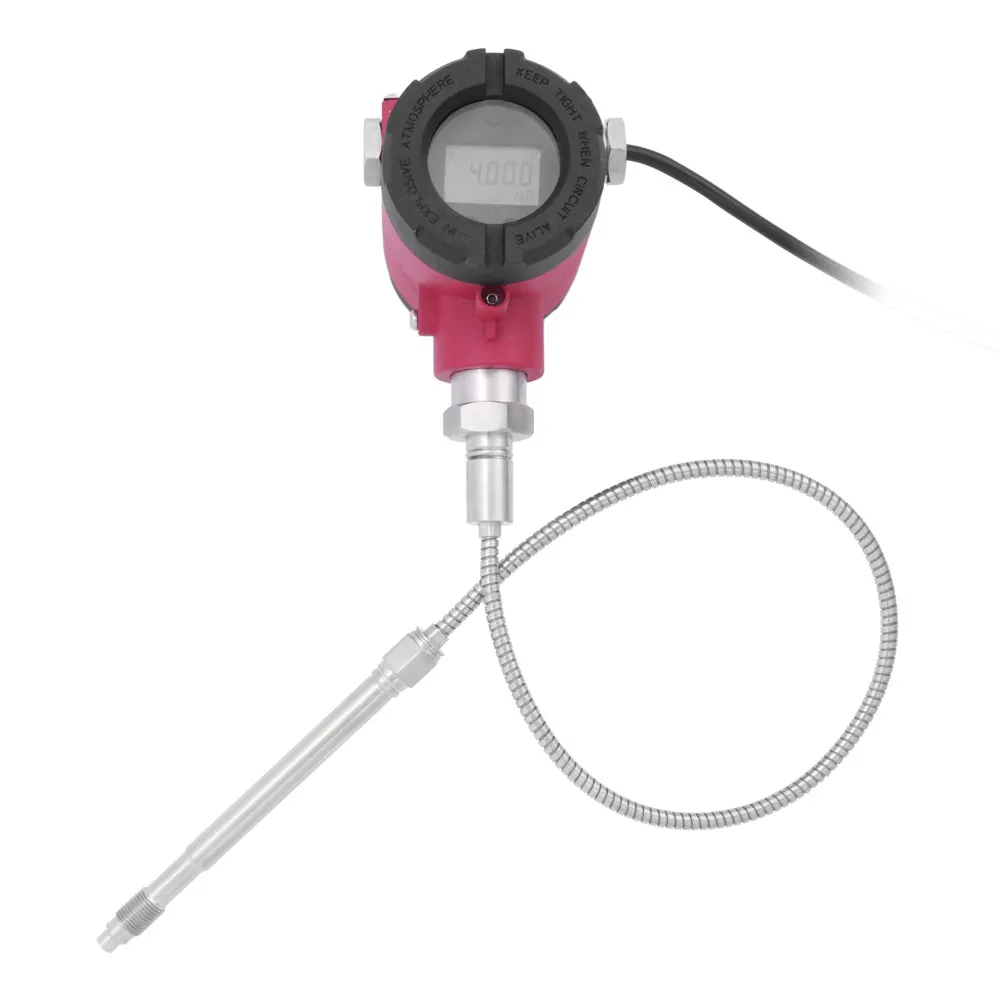

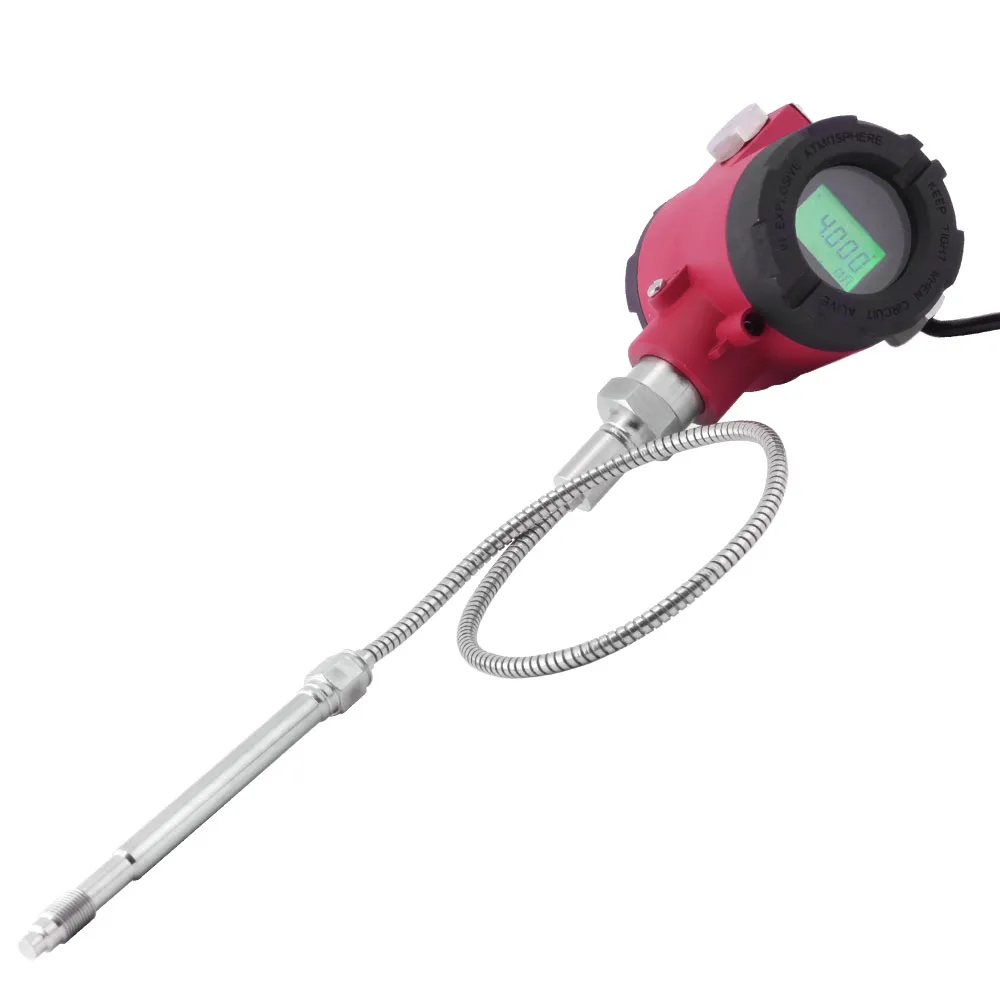

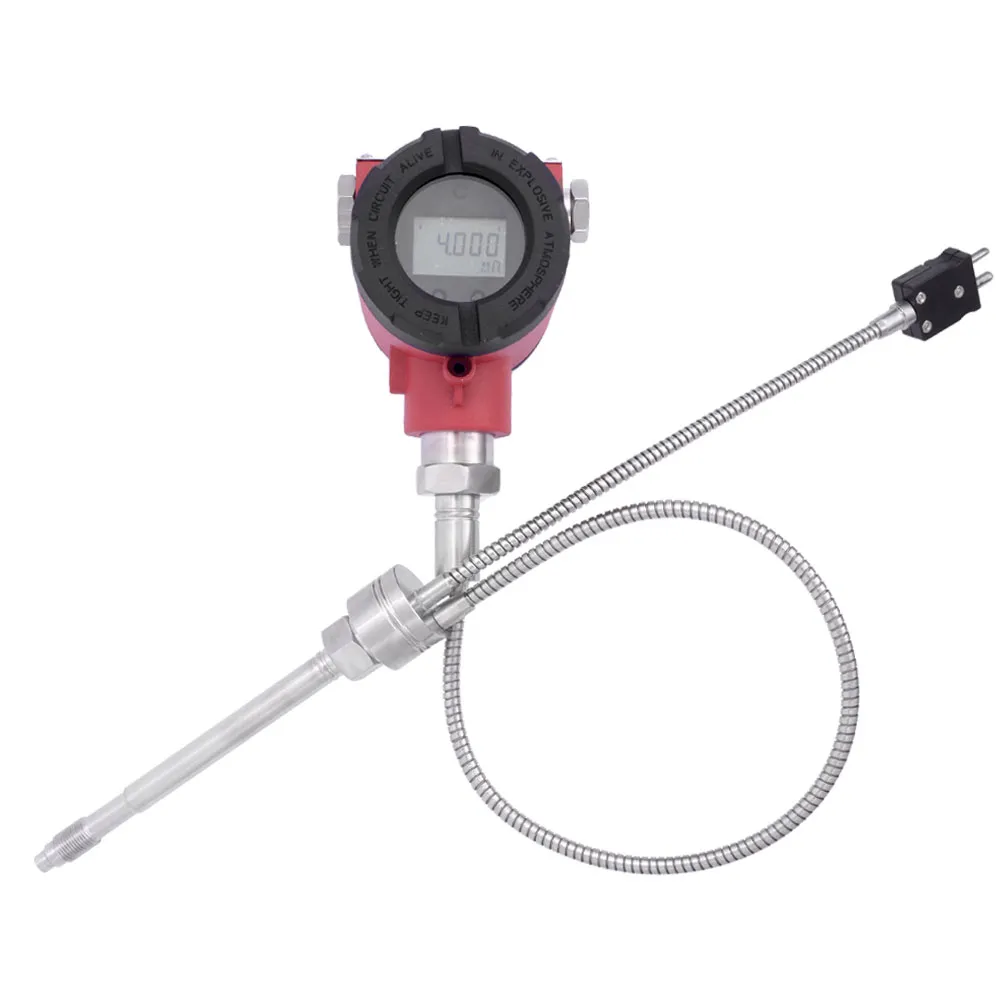

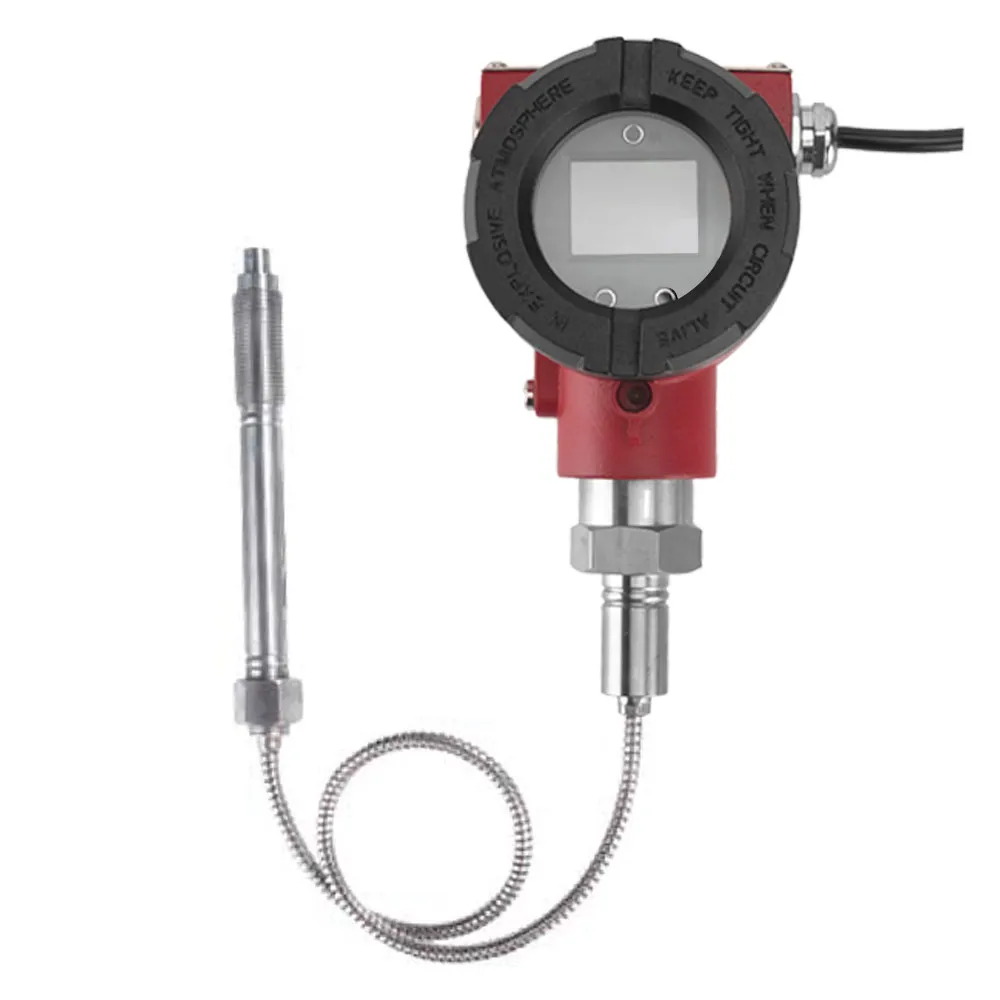

Intelligent LCD Display Capillary Melt Pressue Transmitter

Description

Technical Parameters

Pressure range 0~5MPa~200MPa
Overload 150%FS
Comprehensive accuracy ±1%FS(including linearity , repeatability & hysteresis)
Singal output 4-20mA;0-10V;0-5V
Power supply 24(12~36V)DC
Internal filling medium Mercury
Wetted material Stainless Steel Coated with 15-5PH
Length of rod 152;200;250;305;400mm
Standard cable 5000mm
Optional cables 1000;3000;8000;10000mm
Operating temperature Max 400℃
Protection grade IP67
Insulation resistance 100MΩ / 250V
Zero point adjustment Support
Full scale adjustment Support
Internal calibration 80%
Electrical Connection Gland Lead
Capillary length 460;760mm
Process connection 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5 ; G3/4
Temperature measuring element JKEPT100(optional)

Features

1. Internal 80% calibration signal
2. LCD on-site display
3. Good stability and repeatability
4. Aluminum alloy explosion-proof housing
5. Anti-interference circuit, stable signal output

Application

1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment

Intelligent LCD Display Capillary Melt Pressue Transmitter

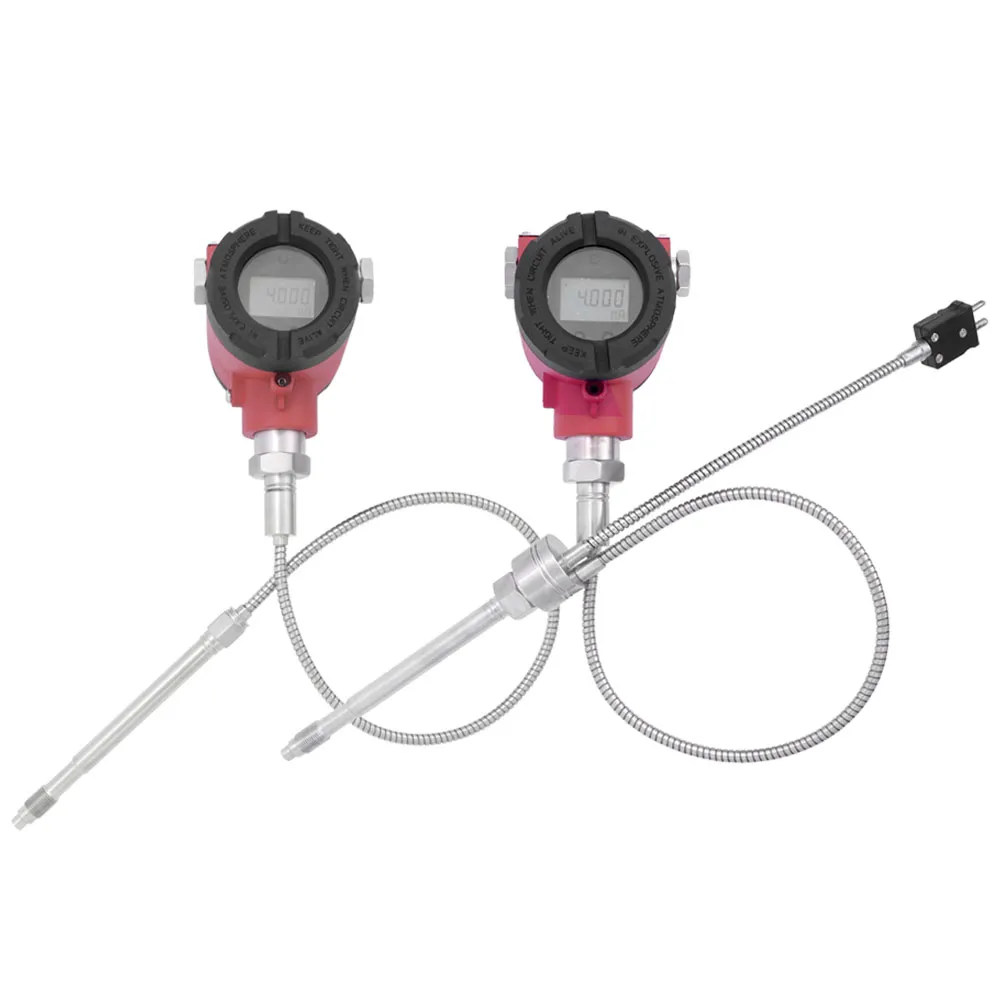

Model:PT124B-129/129T

PT124B-129/129T intelligent LCD display capillary melt pressure transmitter is a high-precision, high-stability pressure measuring instrument designed and produced using digital circuit compensation technology. It uses an aluminum alloy explosion-proof housing and has an LCD display. It can also be used in two-wire 4-20mA HART protocol output occasions.
It is mainly used for pressure measurement and control of high-temperature fluid media in chemical fiber spinning, polyester, and other high-temperature fluid equipment.
