Intelligent Digital Pressure & Temperature Panel Indicator

Description

Technical Parameters

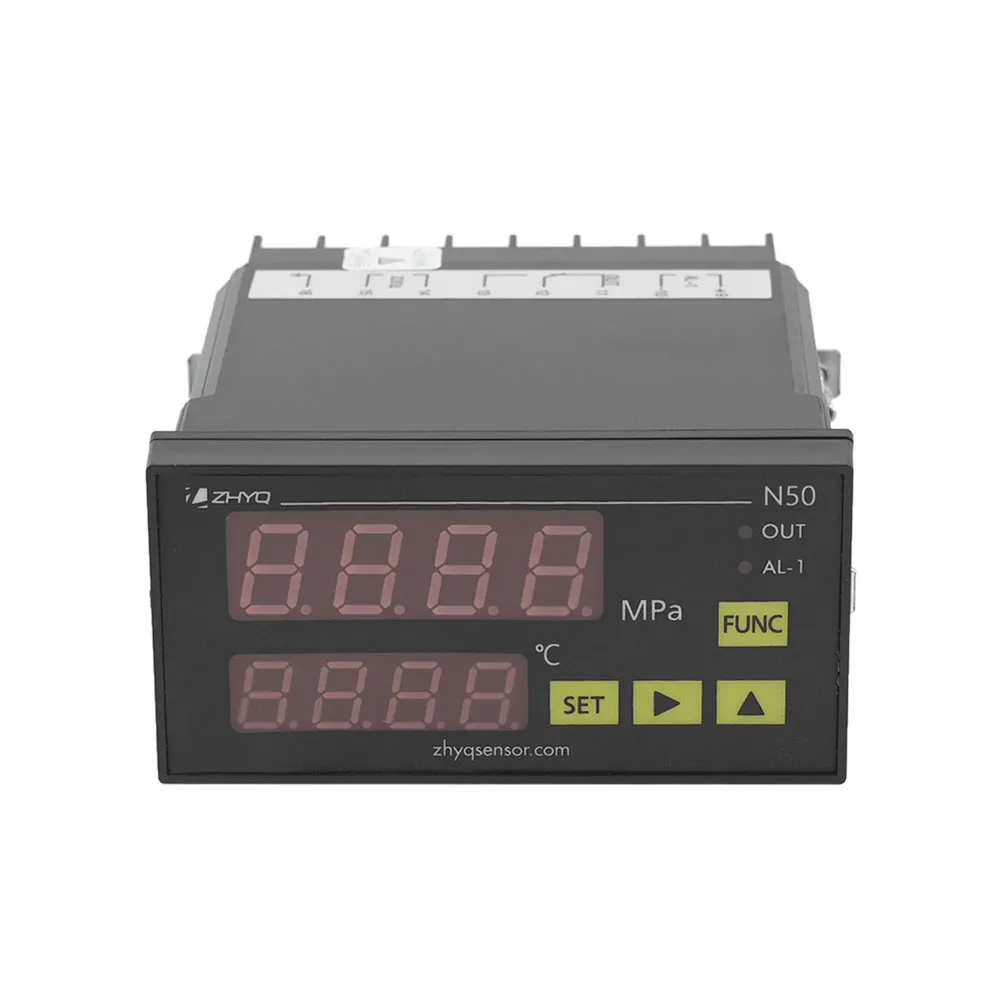

Display Double-layer 4-digit high-brightness digital display
Display resolution 0001
Display Range 0001 – 9999 (Pressure) , 000.1 – 400.0 (Temperature)
Accuracy 0.2%FS ±1bit

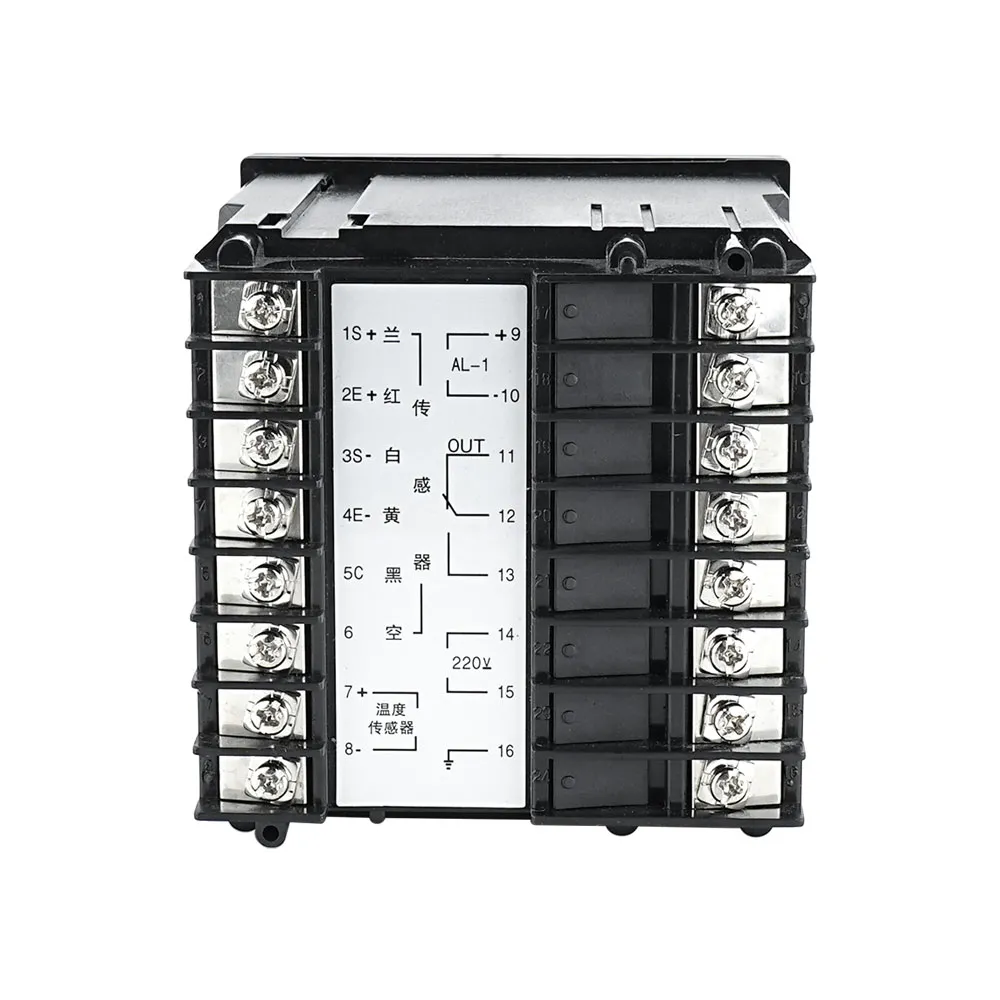

Indicator Calibration Indicator, Function Output Indicator, AL-1 & AL-2 Alarm Indicator
Pressure Input 2mV/V , 3.3mV/V (Pressure Sensor)  ; 0-10mA/0-20mA/4-20mA/0-5V (Pressure Transmitter)
Temperature Input K, J, E Thermocouple Input
Data Gathering Speed 20 Times/Second
Power Input 9VDC (Sensor) ; 24VDC (Pressure Transmitter)
Output Control Voltage or current output that is linear to a full-scale signal
Main Alarm Output Upper alarm with relay output (220V 1A) , Upper alarm light on (OUT) [valid for pressure only]
Auxiliary output Auxiliary output can be configured with different function modules and set by the instrument to meet different output requirements.
Alarm Range 0001-9999MPa (Pressure) ; 000.0-400.0 (Temperature)
Calibration Indicator Display 80% of full scale (sensor should be unloaded),Calibration indicator light on (CAE)
Working ambient 0 – 55 ℃ (Temperature) ; ≤ 80% RH (humidity)
Power Supply 85 – 265 VAC 50Hz – 60Hz

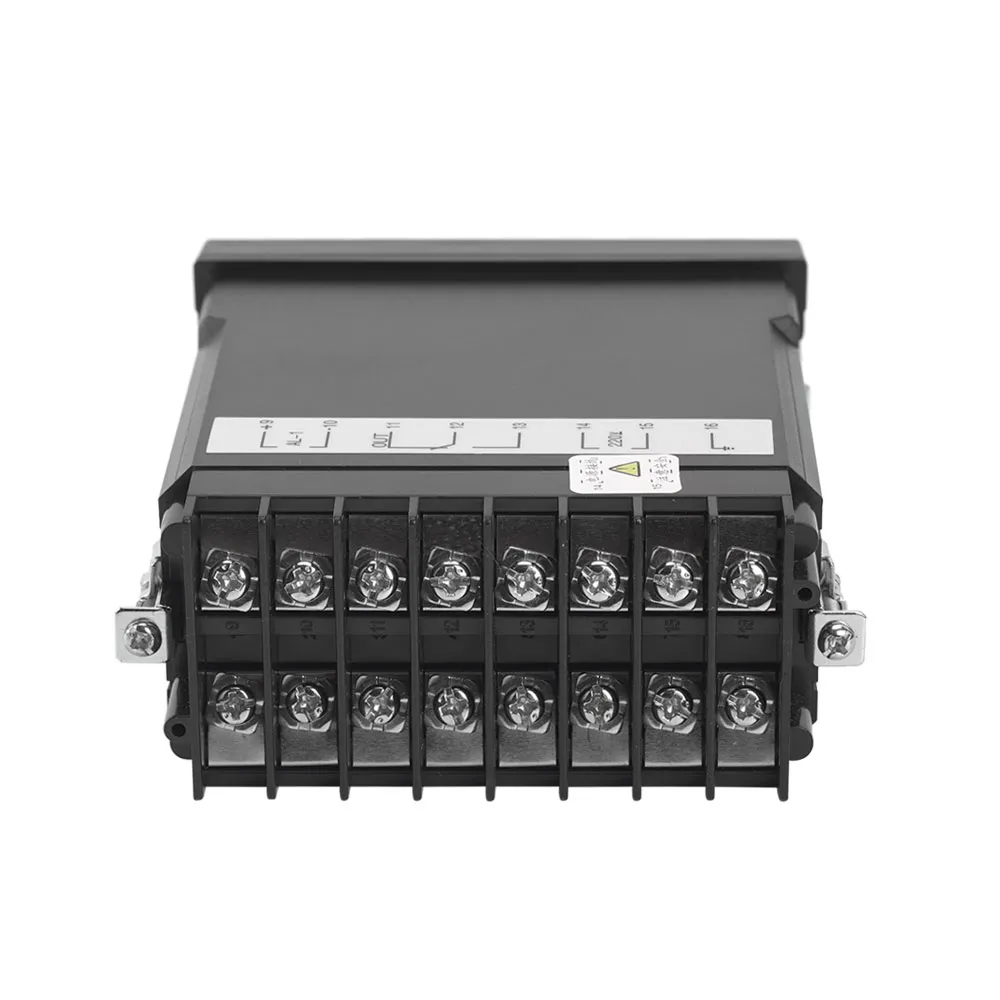

Dimension 96mm x 96mm x 100mm (N60)
96mm x 48mm x 100mm (N50)
48mm x 96mm x 199mm (N10)
Mounting hole size 92mm x 92mm (N60)
92mm x 44mm (N50)
44mm x 92mm (N10)
Weight 400g (N60);200g (N50);200g (N10)

Features

1. Can measure pressure and temperature at the same point
2. Can set upper and lower limit alarms
3. High-precision output control module
4. A variety of pressure interfaces are available

Application

1.Plastics molding/extrusion pressure & temperature monitoring
2.Pressure/ level/ flow monitoring

Intelligent Digital Pressure & Temperature Panel Indicator

Category

Model:N10/N50/N60

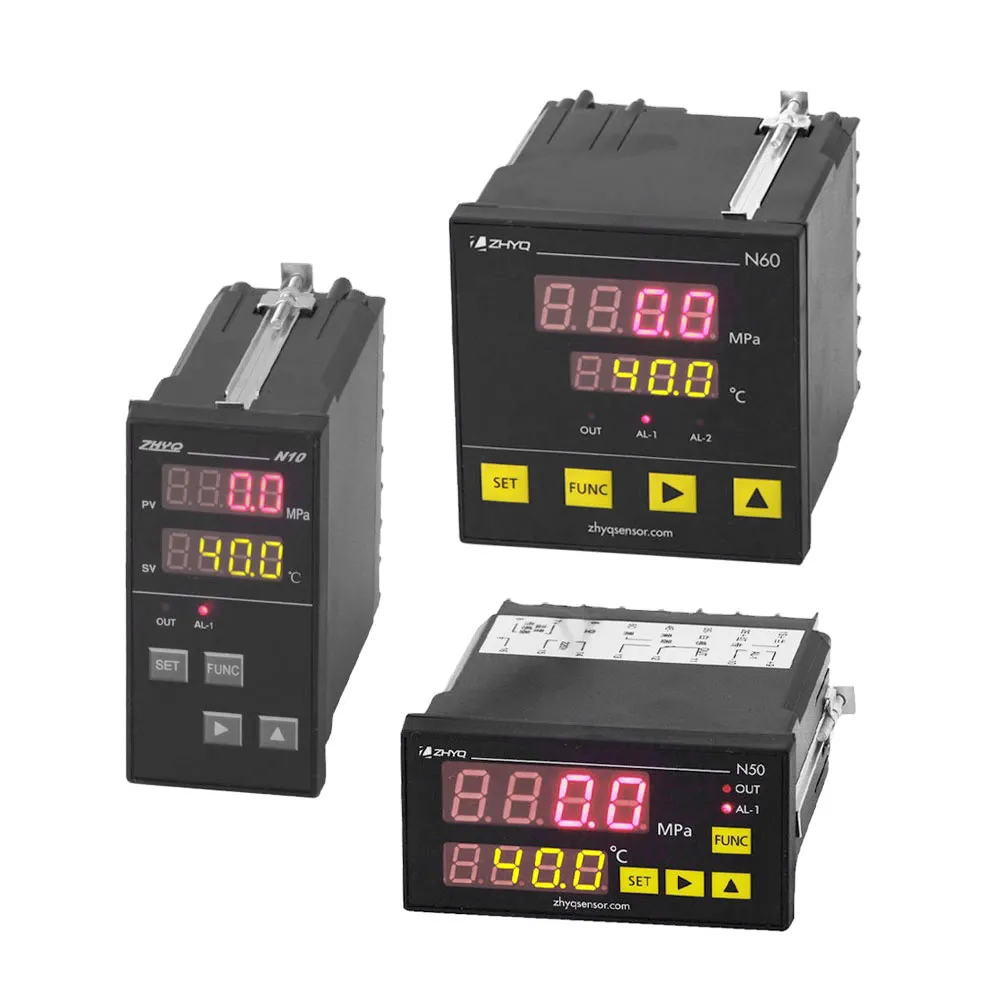

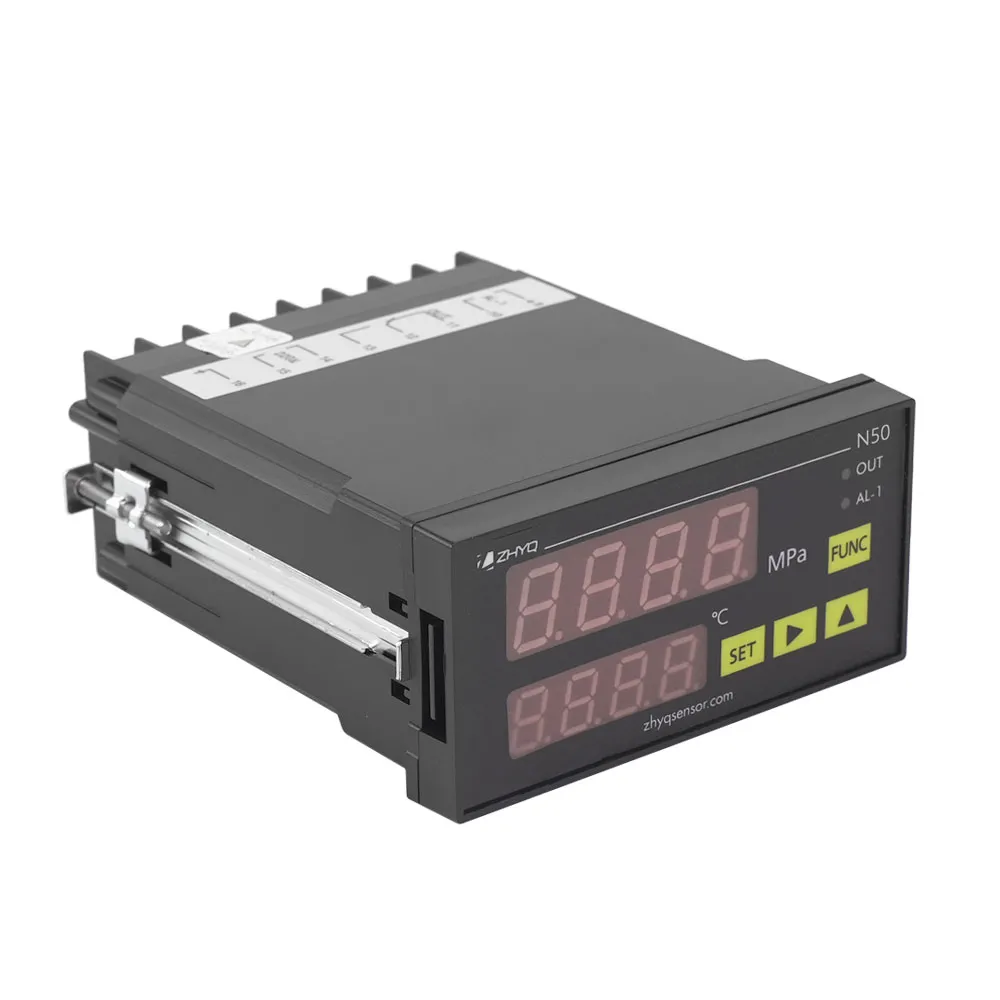

N-series digital intelligent pressure & temperature indicator is designed & developed by ZHYQ. N60/N50/N10 is designed based on multiple advanced electronic technologies such as Single Chip Microcomputer, Electrically-Erasable, Anti-Interference & other technologies. This type of indicator is highly reliable with accurate measurement and anti-interference function. All three models were designed to fit in almost every installation space requirement. This indicator is often used together with our PT124B series melt pressure transmitters and PT124Y series Melt pressure gauges. N series pressure & temperature indicator can also be used with instruments from all other brand from the market. Alarm function is also available in this product. Both upper and lower limit can be set up by customer for process control purposes. All types of output can be selected as an option when purchase.
