Intelligent Digital Pressure Panel Indicator

Description

Technical Parameters

Display Double-layer 4-digit high-brightness digital display
Display resolution 0001
Display Range 0001 – 9999 (Pressure) , 000.1 – 400.0 (Temperature)
Accuracy 0.2%FS ±1bit
Indicator Calibration Indicator, FUNC, AL-1 & AL-2 Alarm Indicator
Pressure Input 2mV/V , 3.3mV/V (Pressure Sensor)  ; 0-10mA/0-20mA/4-20mA/0-5V (Pressure Transmitter)
Temperature Input K, J, E Thermocouple Input
Data Gathering Speed 4 Times/Second
Power Input 9VDC ( Match with Pressure Sensor) ; 24VDC (Match with Pressure Transmitter)
Output Control Voltage or current output that is linear to a full-scale signal
Main Alarm Output Upper alarm with relay output (220V 1A) , Upper alarm light on (OUT)
Auxiliary output Auxiliary output can be configured with different function modules and set by the instrument to meet different output requirements.
Alarm Range 0001-9999MPa (The decimal point is variable)
Calibration Indicator Display 80% of full scale (sensor should be unloaded),Calibration indicator light on (CAE)
Working ambient 0 – 55 ℃ (Temperature) ; ≤ 80% RH (humidity)
Power Supply 85 – 265 VAC, 50Hz – 60Hz
Dimension 96mm x 96mm x 100mm (N70)
96mm x 48mm x 100mm (N80)
48mm x 96mm x 199mm (N90)
Mounting hole size 92mm x 92mm (N70)
92mm x 44mm (N80)
44mm x 92mm (N90)
Weight 400g (N60);200g (N50);200g (N10)

Features

1. Can set upper and lower limit alarms
2. High-precision output control module
3. A variety of pressure interfaces are available

Application

1.Plastics molding/extrusion pressure monitoring
2.Pressure/ level/ flow monitoring

Intelligent Digital Pressure Panel Indicator

Category

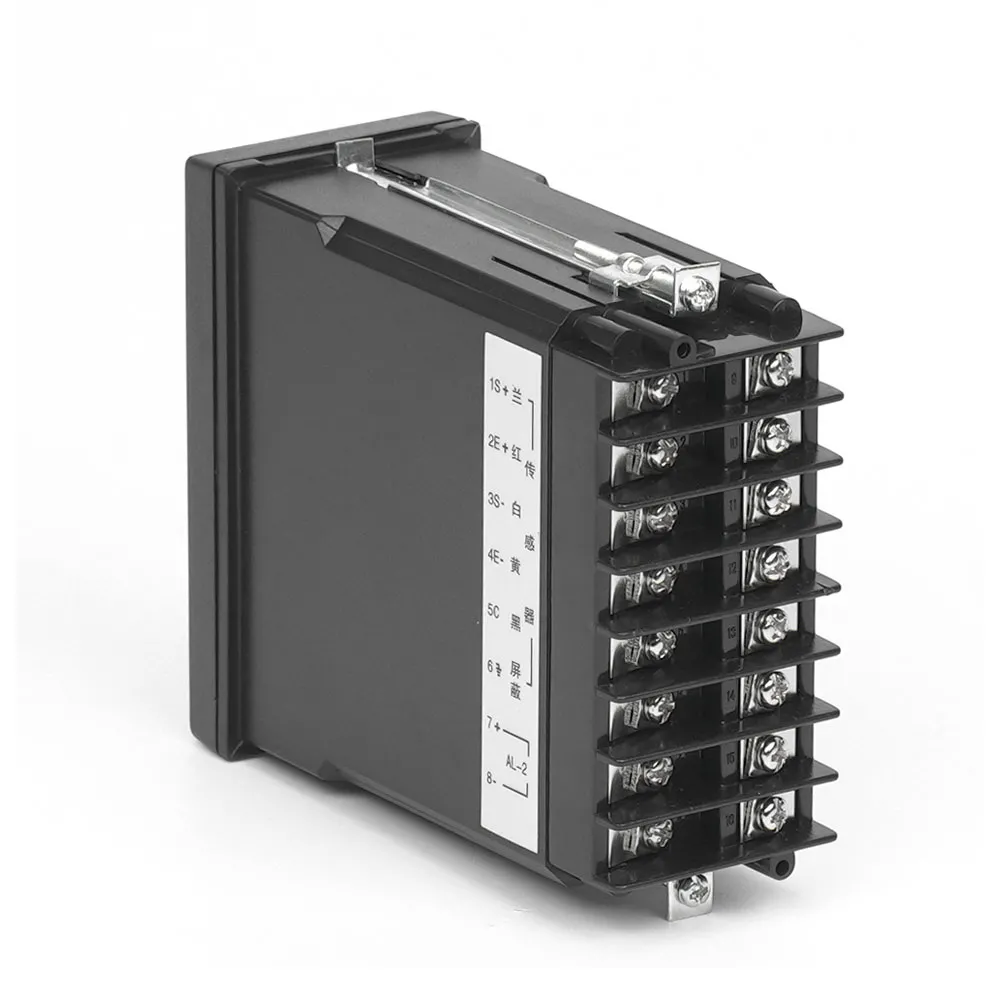

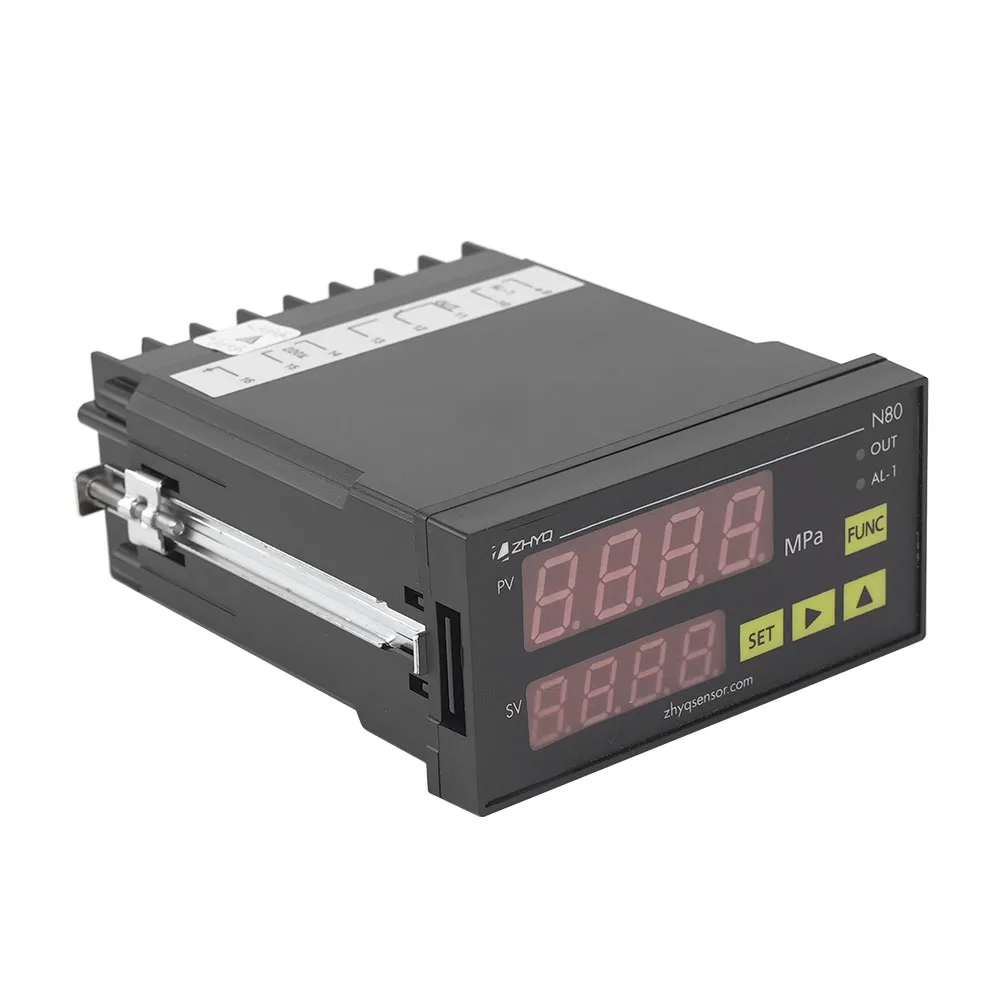

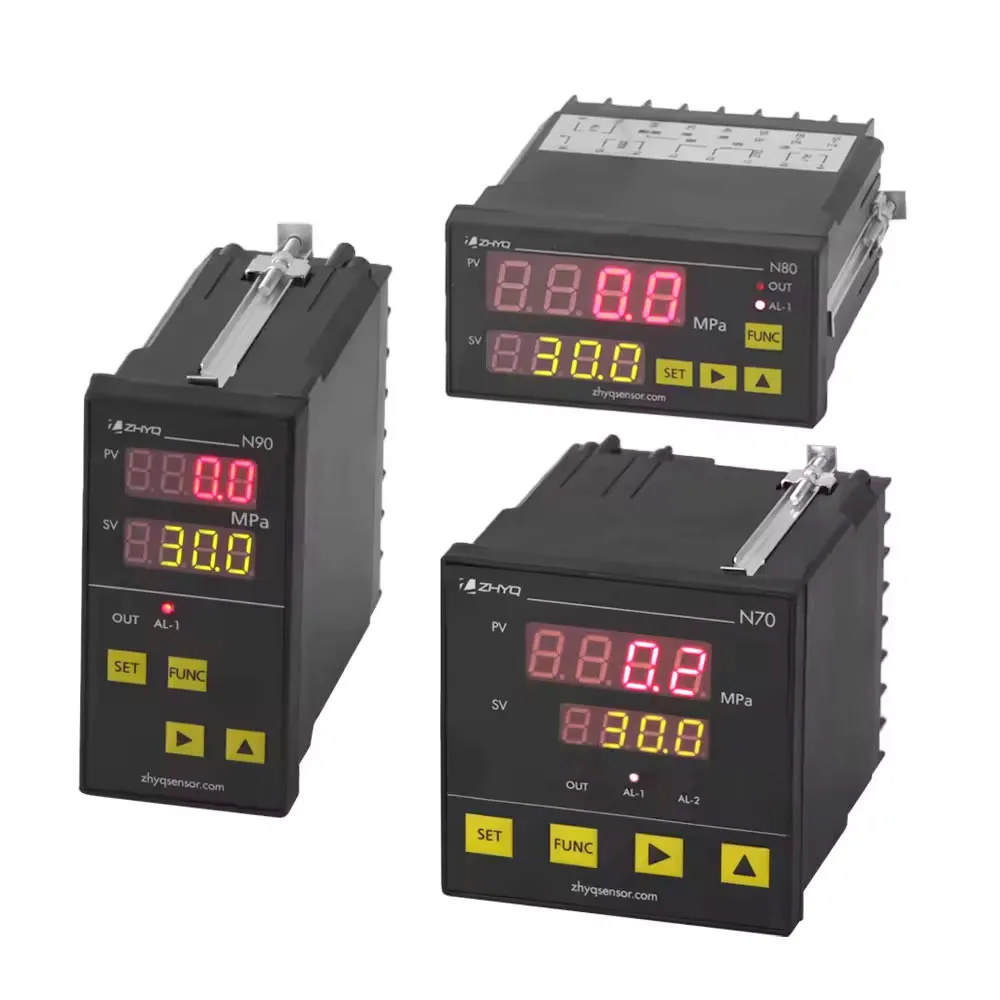

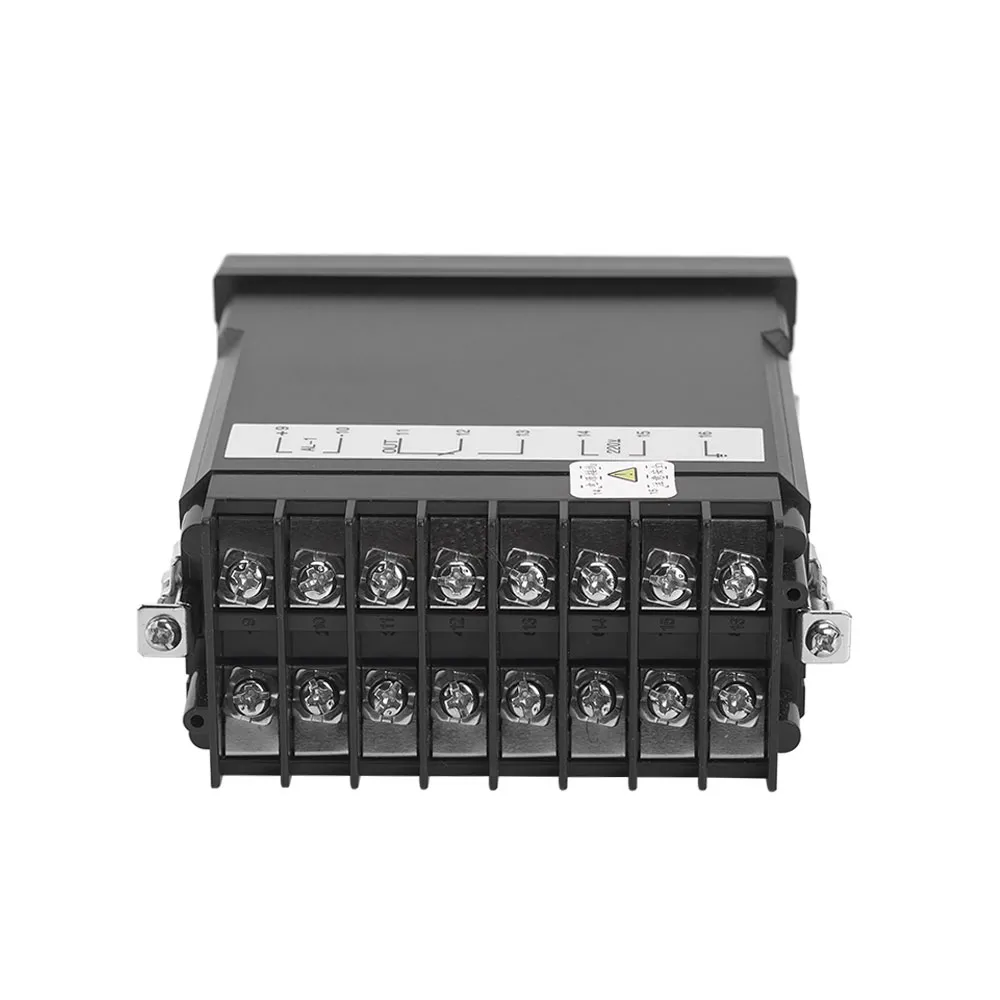

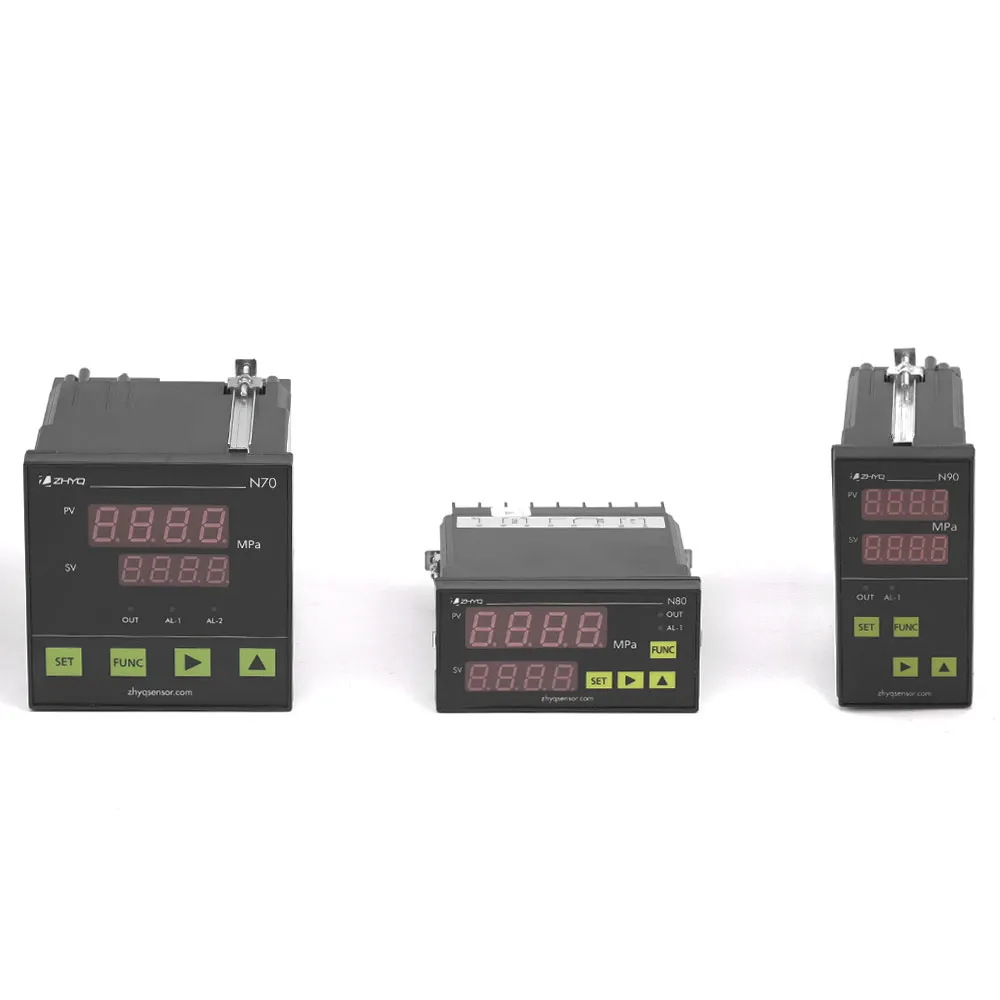

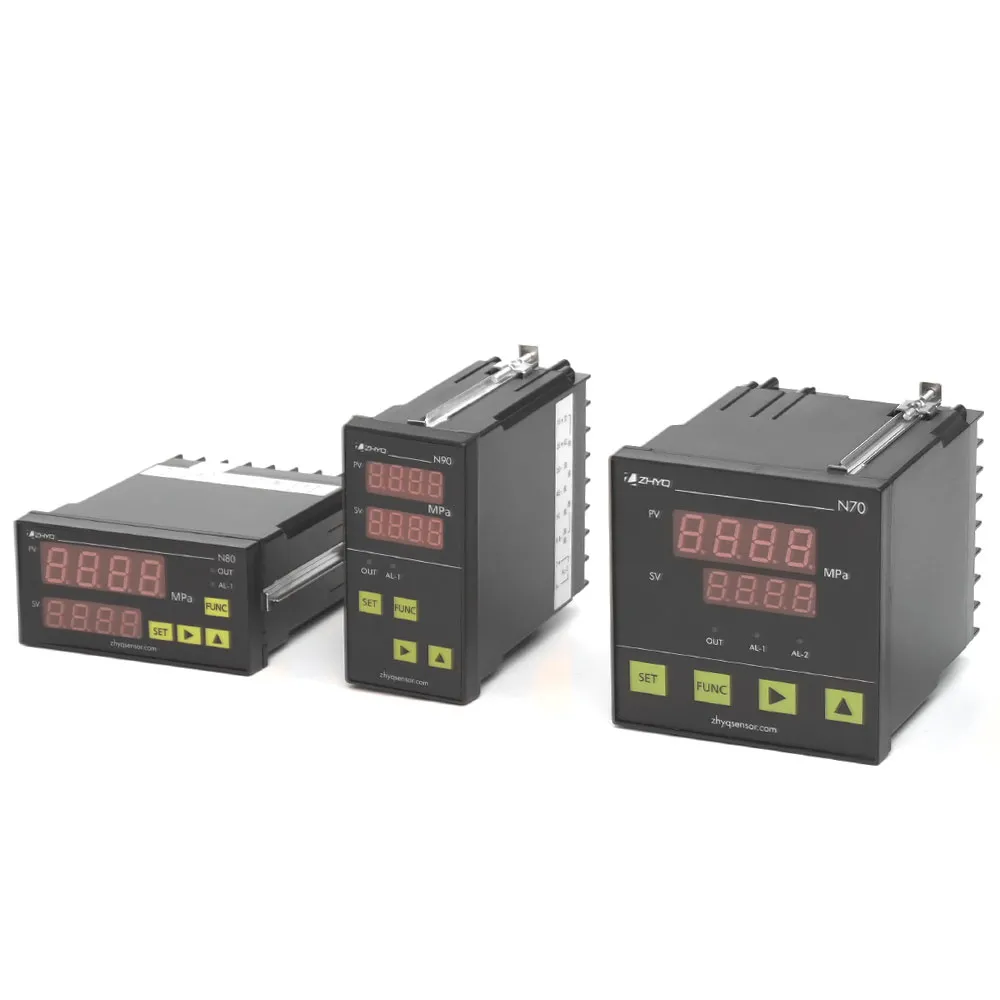

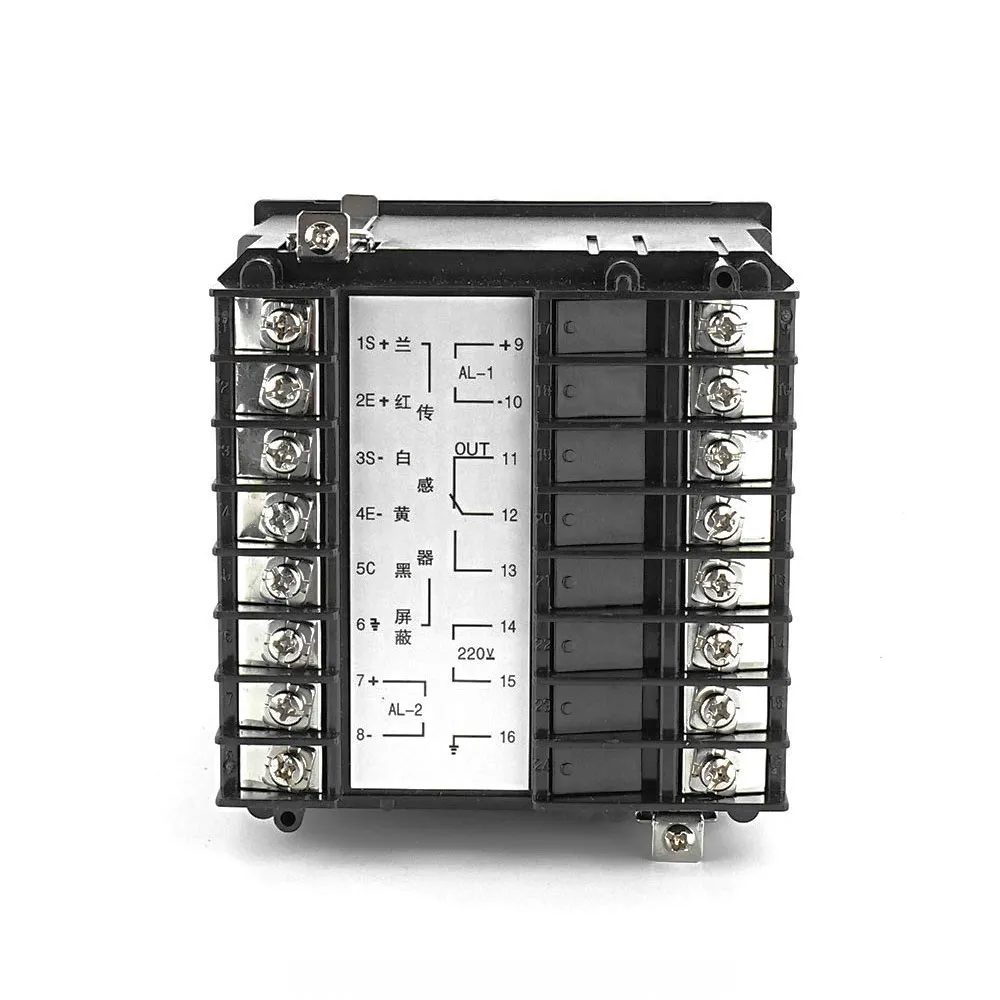

Model:N70/N80/N90

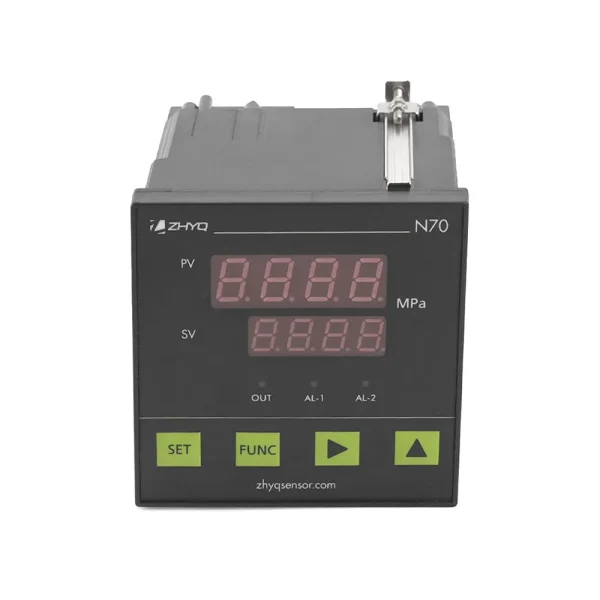

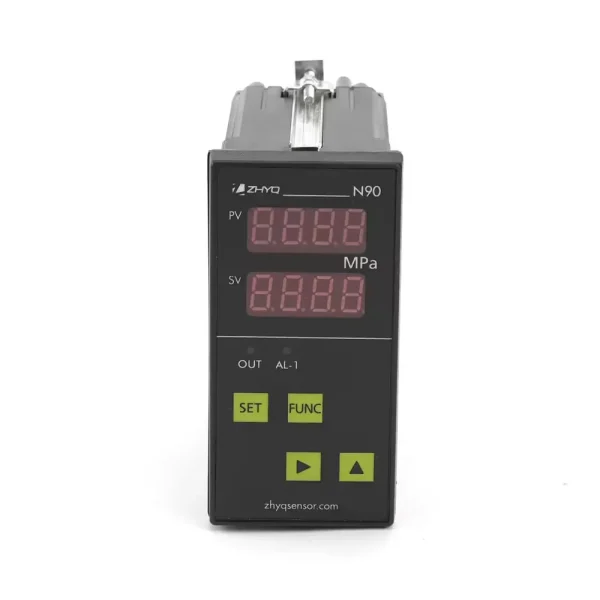

N70/N80/N90 intelligent digital pressure indicator is a product developed by our company. The whole machine is small in size, light in weight, low in power consumption, complete in functions, reliable in operation, convenient and flexible in use. It is equipped with our company’s high-temperature melt pressure transmitter, normal temperature pressure transmitter and liquid level transmitter. As a high-precision pressure measurement and control, it can be widely used in pressure display and automatic control occasions in hydraulic, petroleum, plastic, rubber, printing and dyeing, textile and other industries. It can also be used in conjunction with pressure transmitters from other manufacturers. It can set upper and lower limit alarms, has light-emitting tube alarm indication, and relay contact output to control external actuators. It has high-precision voltage output module, current output module, relay output control module and communication module for users to choose.
