Description
Technical Parameters
| Pressure range | 0~5MPa~150MPa |
| Overload | 150%FS |
| Power supply | 24(12-36V) DC |
| Signal output | 4-20mA |
| Display mode | Digital display |
| Accuracy | ±1%FS |
| Dial diameter | 100mm |
| Operating temperature | Max 400℃ |
| Rigid stem length | 152 ; 200 ; 250 ; 305 ; 350 ; 400mm |
| Capillary length | 460 ; 760 ; 1000 ; 1500 ; 2000mm |

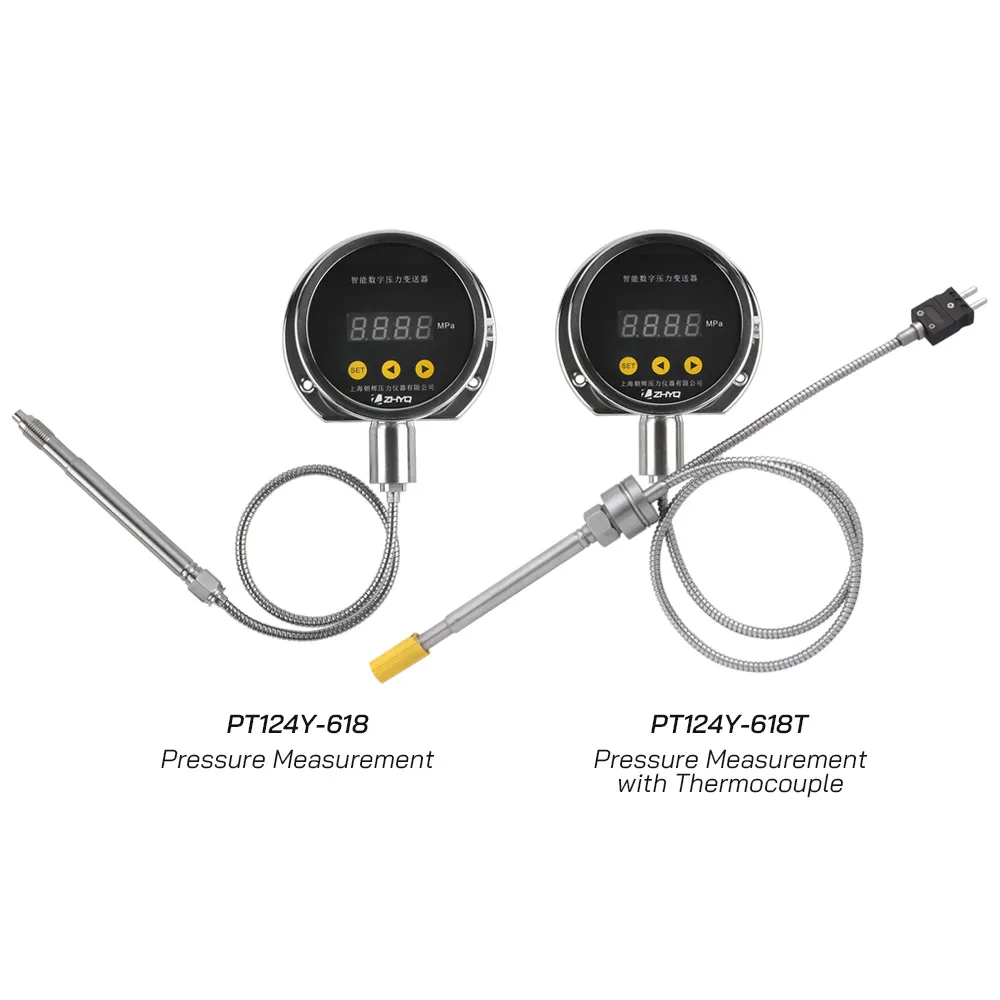

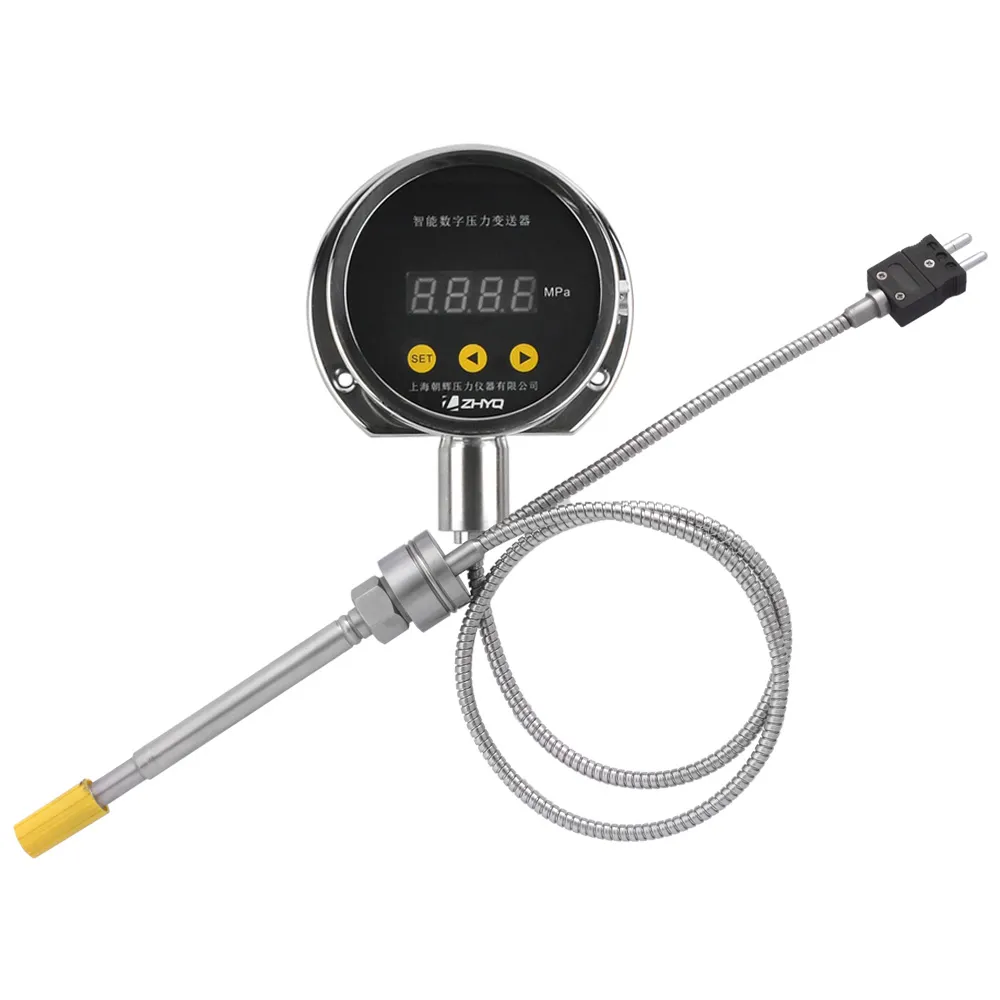

| Temperature measuring element | J、K、E、PT100(optional) |

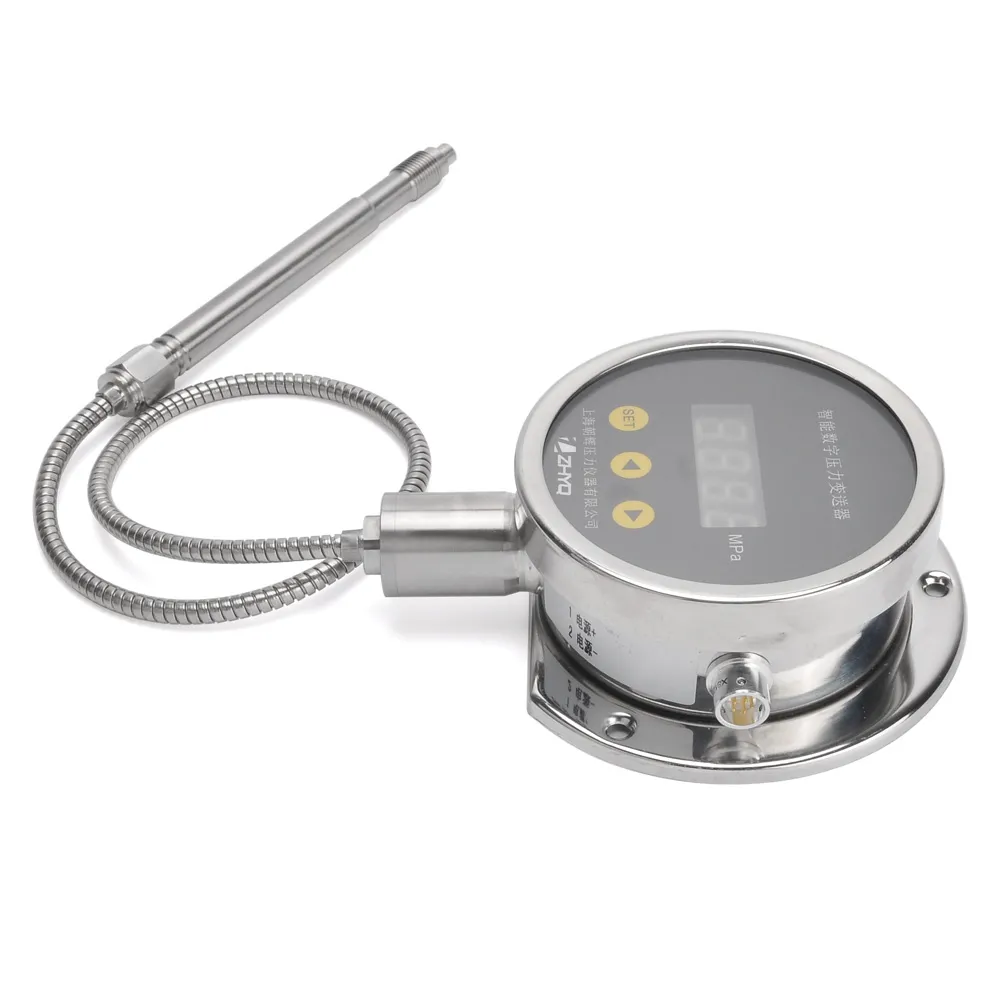

| Electrical Connection | 5PIN |
| Process connection | 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5 |
Features

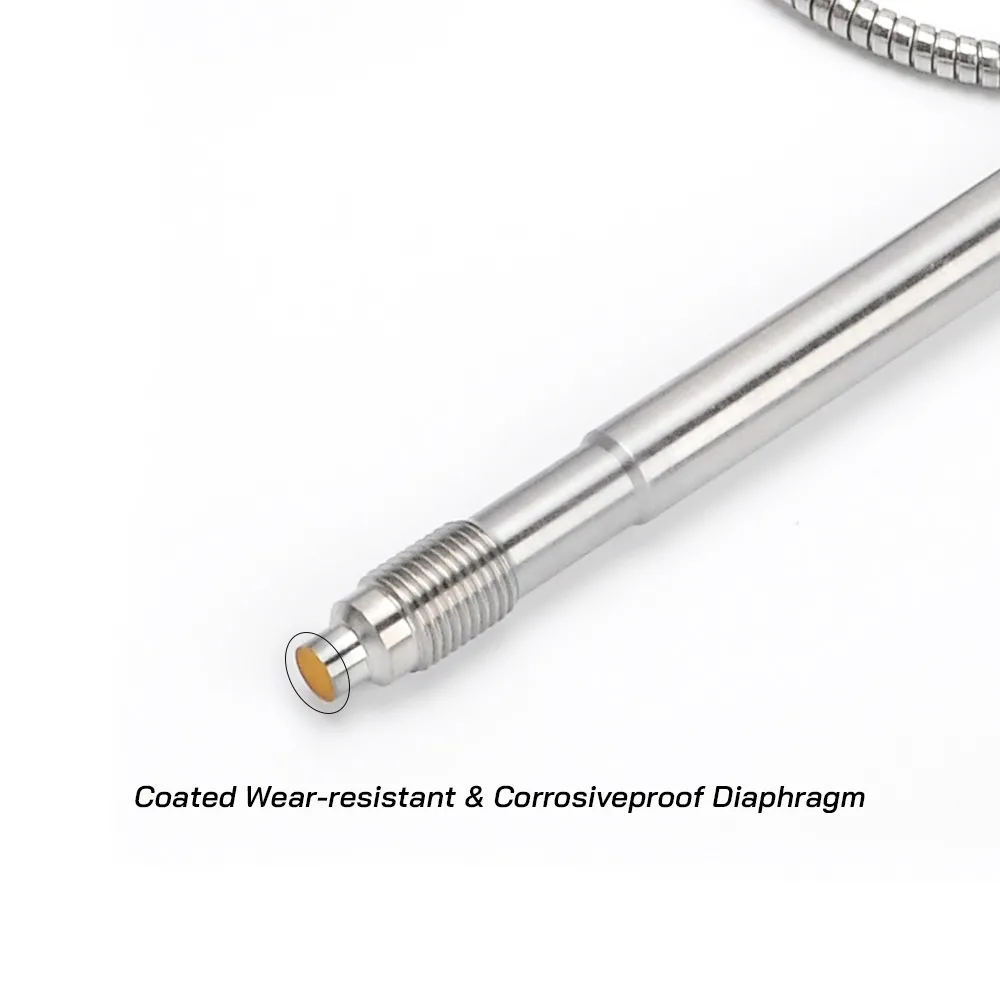

1.All stainless steel encapsulation
2.Small temperature drift, high precision, accurate measurement
3.Can measure pressure & temperature at the same measuring point
4.Good stability, high reliability
5.Can be equipped with amplified signal output
Application
1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment
