Inline Vibration Viscometer

Description

Technical Parameters

Measurement range 0-500mpa.s ; 0-1000mpa.s ; 0-5000mpa.s ; 0-10000mpa.s ; 0-100000mpa.s
Accuracy ±0.5%
Temperature measure range 0-500℃
Temperature accuracy 0.002
Sensor pressure range <25Mpa
Signal response time 2s
Material SS316L (Hastelloy C alloy is optional)
Standard High polish
Environmental IP68
Protection IP67
Power 24V DC
Output Viscosity / Temperature 4~20mA DC
Modbus-RTU protocol RS485
Ex-proof grade ExdIIBT4
Calibration Standard sample solution
Viscosity unit 9 types are optional
Process connection Flange (DN40,PN4.0) / Thread(M42*1.5)

Features

1. Real-time online continuous measurement.
2. Fast response speed
3. High precision and sensitivity
4. Wide range measurement
5. Compact structure, easy installation
6. Low maintenance cost
7. Suitable for high temperature, high pressure and high viscosity environment

Application

1. Petroleum refining
2. Chemical synthesis
3. Dairy processing
4. Beverage production
5. Pulp preparation
6. Pharmaceutical preparation production
7. Paint production
8. Ink production

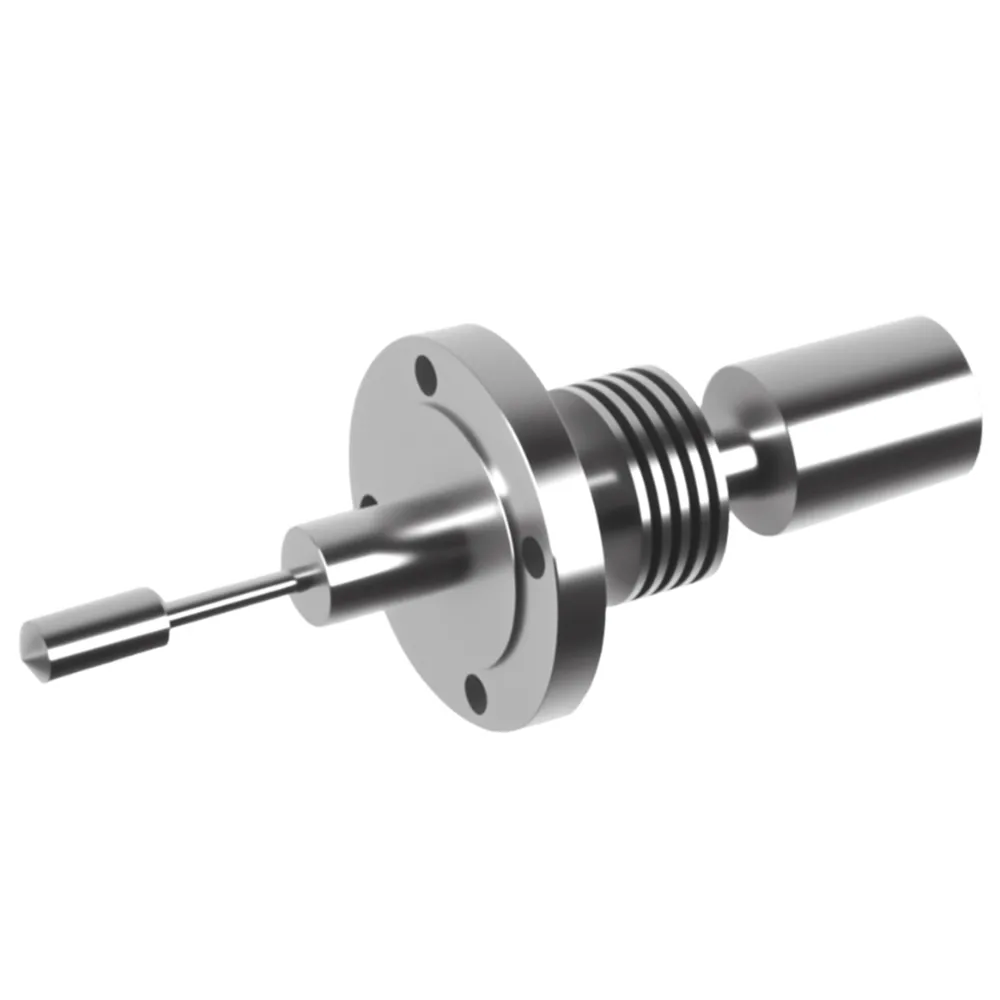

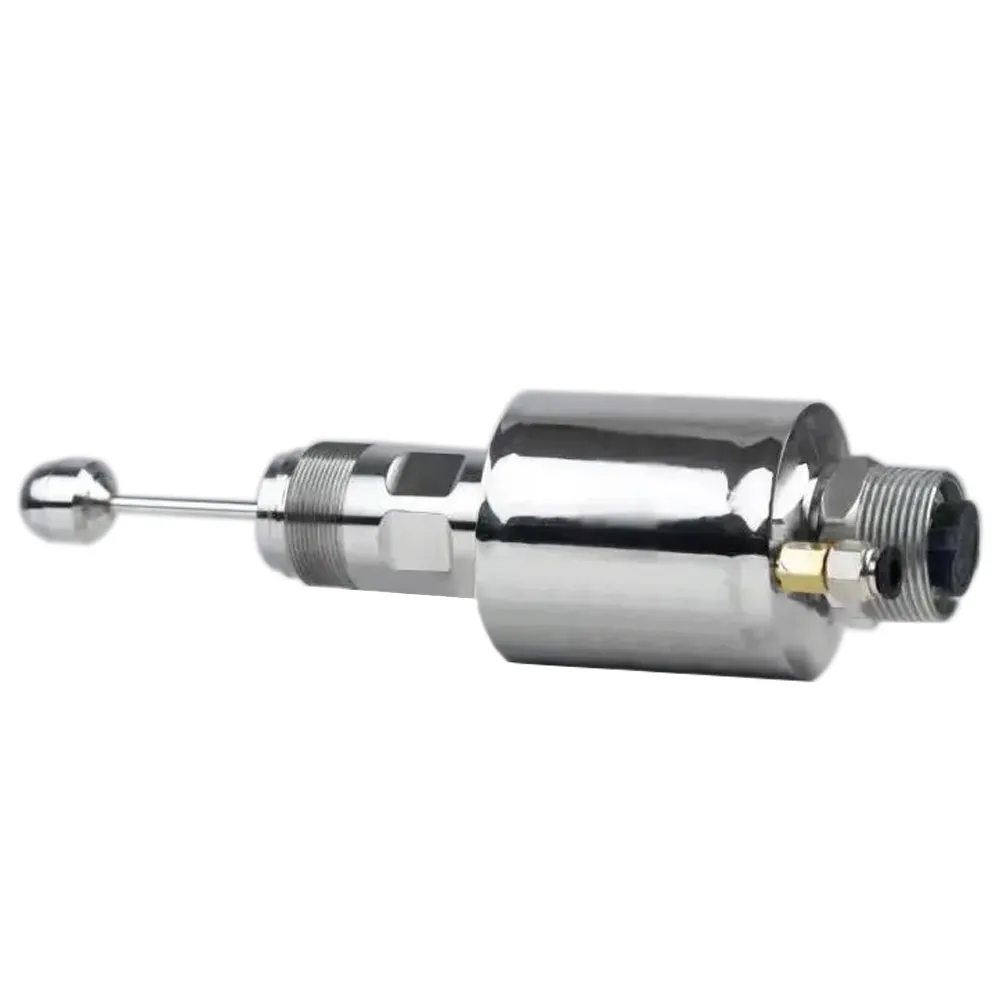

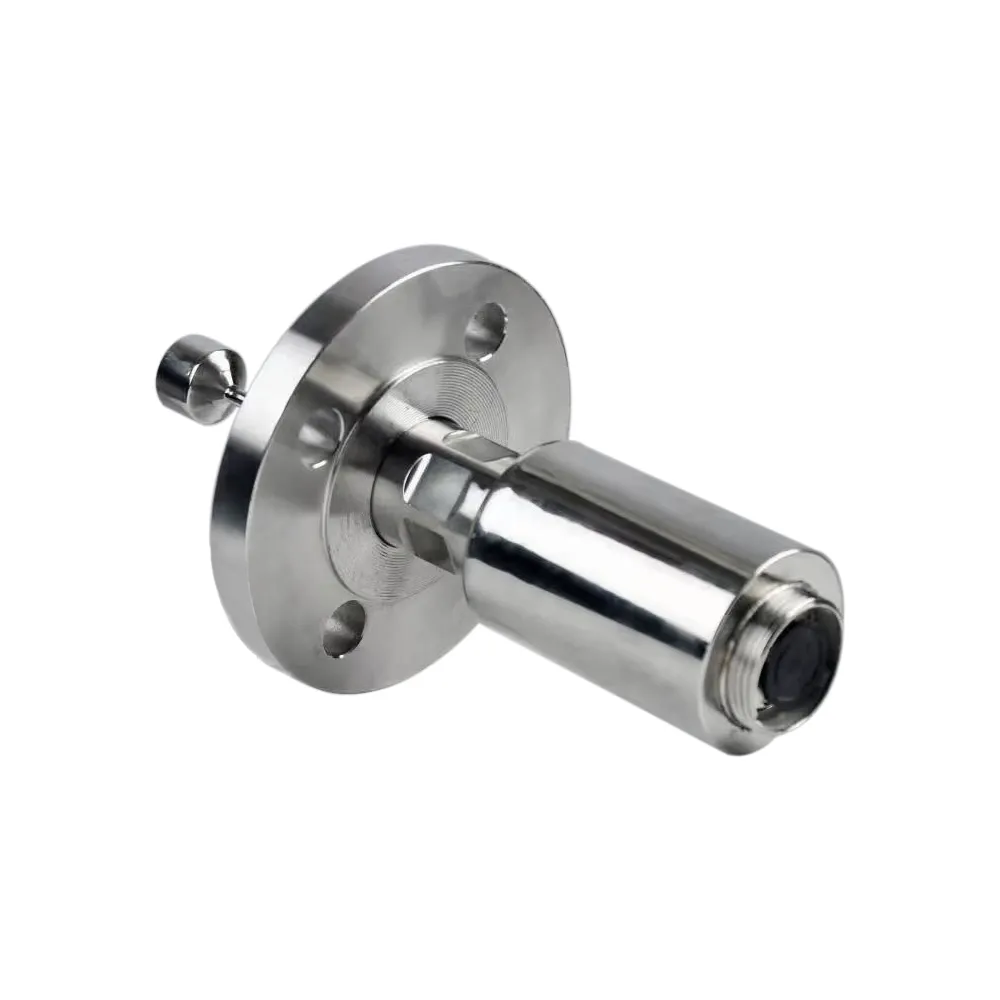

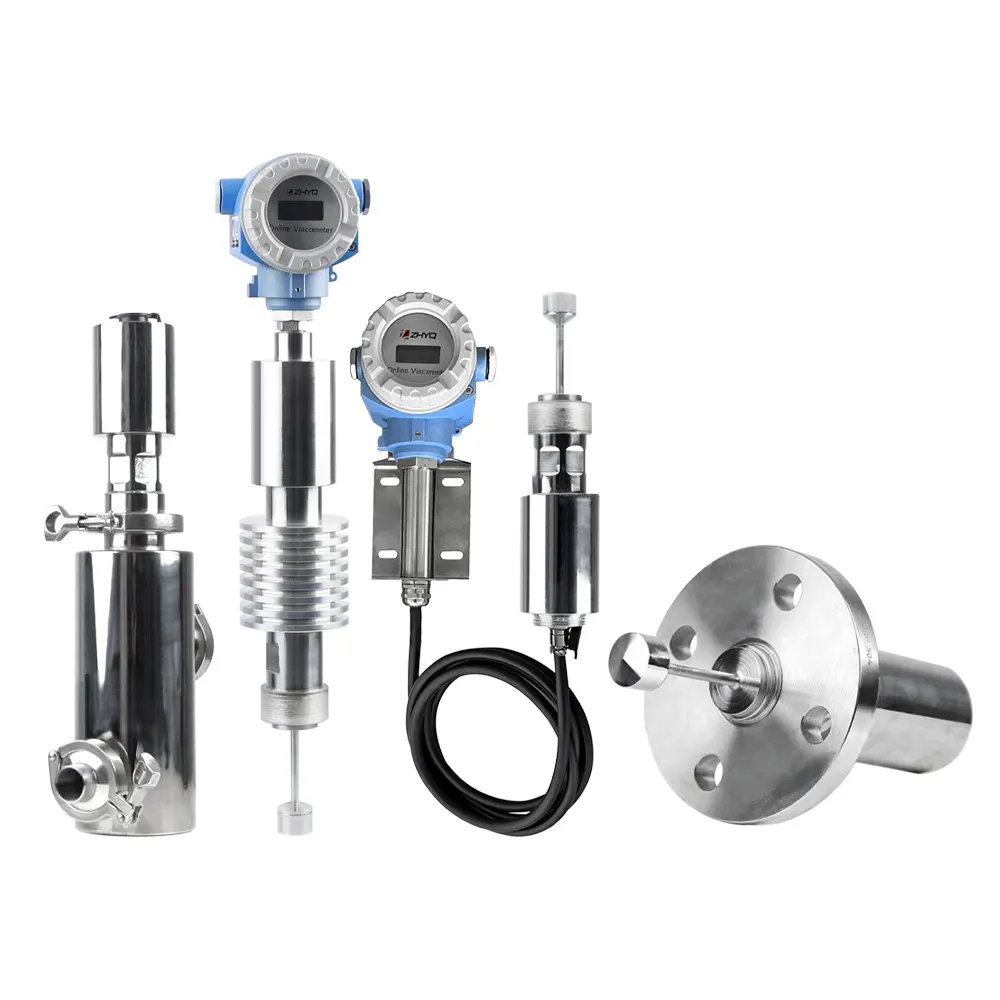

Inline Vibration Viscometer

Model:CNZ-661

Inline vibrating viscometers are suitable for a wide range of media in various industries, including petroleum and petrochemicals, hot melt adhesives, polyamide resins, food chemicals, glass and chemical fibers, paints, waterproof coatings, silicones, latex plastics, extruders, glass, insulating varnishes, civil explosives, and scientific research institutions. In practical engineering and industrial production, online fluid viscosity measurement is often required to improve production efficiency. Online measurement of liquid viscosity during the process provides data on the liquid’s rheological behavior, which is valuable for predicting process control, conveyability, and operability during use. Liquid properties are often correlated with changes in other product characteristics, such as color, density, stability, solids content, and molecular weight. Online viscosity measurement is the most convenient and sensitive method for measuring these properties. During production, online viscosity measurement, performed within the technical requirements of the process, can minimize product scrap and production line downtime.
