Inline Tuning Fork Densitometer

Description

Technical Parameters

Accuracy (standard conditions) ±0. 001g/cm ±0.5 (v/v,m/m)
Working range 0~2g/cm3 0~100%
Repeatability ±0. 0001g/cm3 ±0.1%
Process temperature effect (corrected) ±0. 0001g/cm3 ±0.1% /℃
Process pressure effect (corrected) Ignore
Process temperature Standard: -25°C~+120°C (Customized: -25°C~+150°C)
Ambient temperature -25°C~85°C
Temperature accuracy 0.5°C
Built-in temperature sensor Temperature chip
Wetted parts 316L, Hastelloy, titanium alloy, ceramics, etc.
Fork tine polishing Standard polishing, PTFE coating, electrolytic polishing
Housing IP67, Aluminum Alloy
Max working pressure Standard ≤0.4MPa
Customized ≤2MPa
Test pressure Tested at 1.5 times the max working pressure
Process connection type Flange/Clamp/Thread
Power supply requirements 1. > 24VDC, 100mA; 2. 220VAC to 24VDC power converter (optional)
Output Four-wire, 4-20mA, RS485 or Hart protocol
Electrical interface M20*l. 5
Viscosity requirements 0-2000cP (Depending on the specific characteristics of the medium)

Features

1. Fully integrated “plug and play, maintenance-free” digital measurement for monitoring and control
2. Continuous measurement
3. No moving parts, low maintenance
4. Available in 316L, Hastelloy alloy, Zirconium and other materials
5. Density, standard density or special calculated value (solid percentage, API, specific gravity, etc.), 4-20 mA output
6. Provide temperature sensor
7. Pass explosion-proof certification

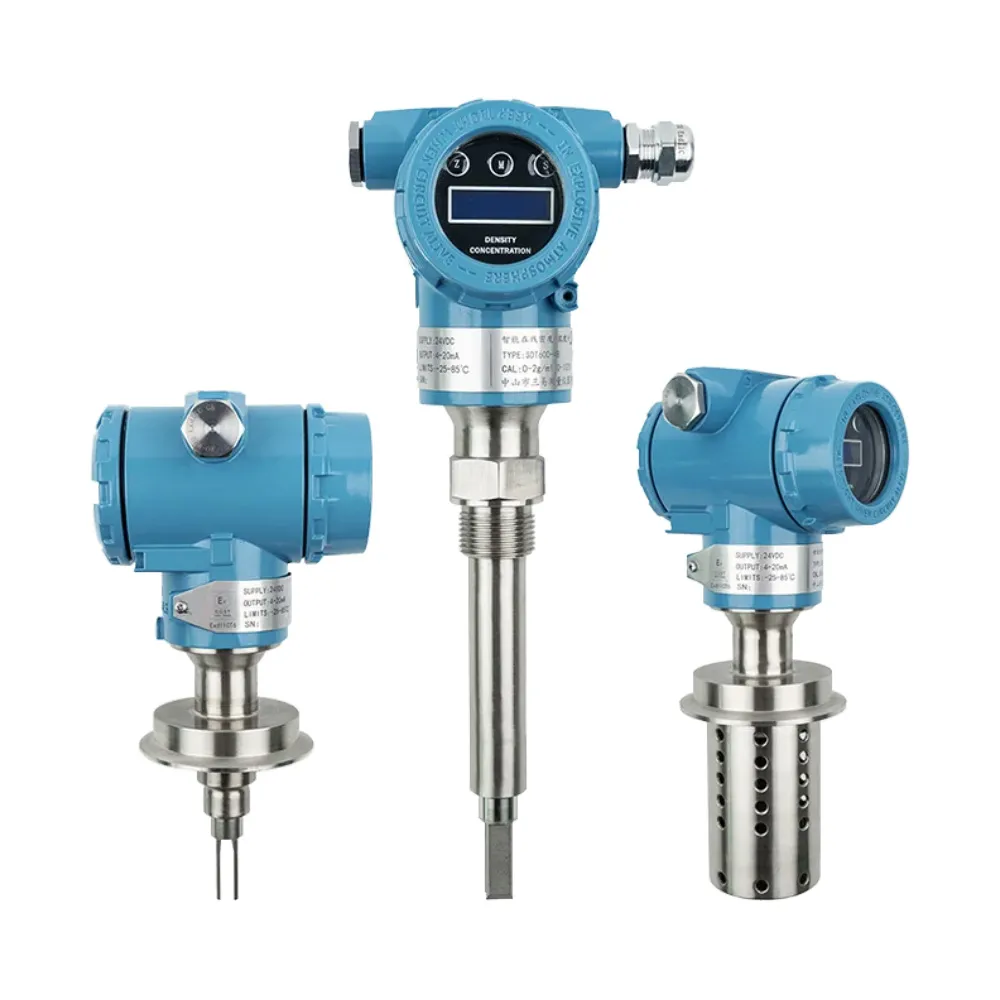

8. Long rod type is suitable for use in open tanks and sealed tanks
9. The maximum length of the long rod can reach 4 meters
10. A small amount of solids and bubbles are allowed
11. Not easily affected by temperature and pressure
12. Direct insertion density meter is suitable for working under high pipeline pressure

Application

1. Petrochemical industry: diesel, gasoline, ethylene, etc.
2. Chemical industry: sulfuric acid, hydrochloric acid, nitric acid, chloroacetic acid, ammonia, methanol, ethanol, brine, sodium hydroxide, freezing liquid, sodium carbonate, glycerol, hydrogen peroxide, etc.
3. Pharmaceutical industry: liquid medicine, biological liquid, alcohol extraction, acetone, alcohol recovery, etc.
4. Food and beverage industry: sugar water, juice, brewing, cream, etc.
5. Battery and electrolyte industry: sulfuric acid, lithium hydroxide, etc.
6. Environmental protection industry: desulfurization (lime slurry, gypsum slurry), denitrification (ammonia, urea), wastewater treatment MVR (acid, alkali, salt recovery), etc.

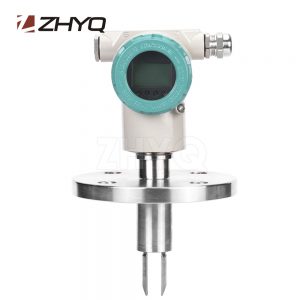

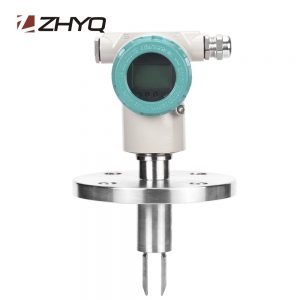

Inline Tuning Fork Densitometer

Model:PT124B-604

Inline tuning fork density (concentration) meter is used to measure the density (concentration) of liquid media in tanks and pipelines. Density (concentration) measurement is an important process control in product production technology. The tuning fork density/concentration meter can be used as an indicator of other quality control parameters such as density or concentration value. It can meet users’ various measurement requirements for density, concentration, and solid content.
