Description
Technical Parameters
| Product model | CZ-L901 | CZ-L501 | CZ-L151 |
| Measuring parameters | Refractive index (nD), temperature (T), Brix(%) | ||
| Measurement range | nD; 1.33299-1.5177 / Brix; 0.0~90.0 % | nD; 1.33299-1.42009 / Brix; 0.0~50.0% | nD; 1.33299-1.35568 / Brix; 0.0~15.0% |
| Resolution | nD; 0.0005 / Brix; 0.5% / T; 0.1℃ | nD; 0.0001 / Brix; 0.1% / T; 0.1℃ | |
| Accuracy | nD; ±0.0005 / Brix; ±0.5% / T; ±1℃ | nD; ±0.0003 / Brix; ±0.3% / T; ±1℃ | |
| Temperature compensation | 10-60℃ | ||
| Power supply | 12~24V DC | ||
| Signal output | DC 4~20mA or RS485 | ||
| Ambient temperature | 10-60℃ | ||
| Protection grade | IP65 | ||
| Operating pressure | Maximum tolerance 1Mpa | ||
| High & low limit setting | Can be set by button | ||
| Prism material | Artificial sapphire | ||
| Wetted material | Standard; SS316L (optional; 2205; Hastelloy C-276) | ||
| Process medium | Cutting oil; emulsion; sugar content; juice | ||

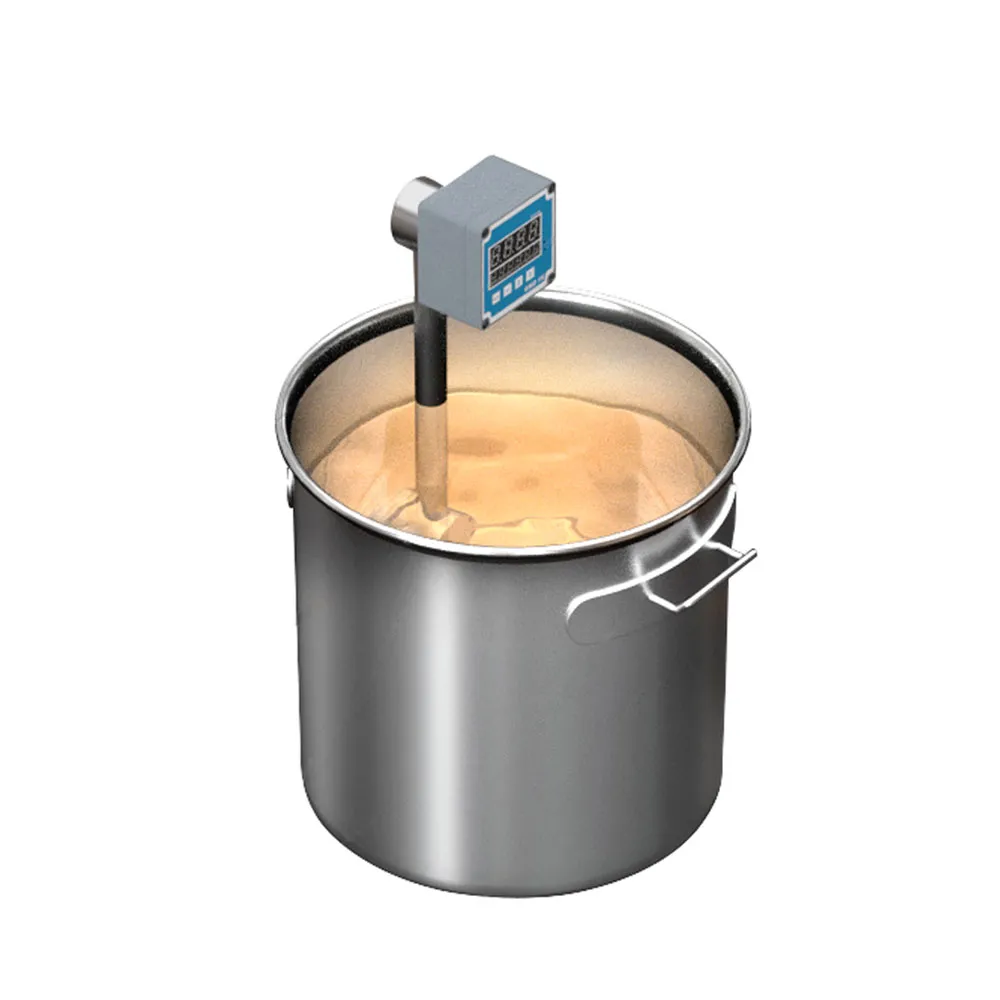

| Installation type | Immersion installation | ||

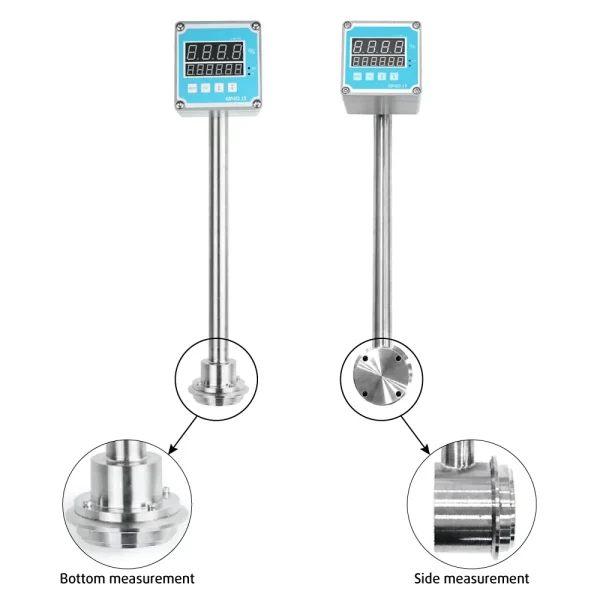

| Orientation of the measuring end | Side / Bottom | ||
| Length of rod | 400mm-1200mm (optional) | ||
| Communication Protocol | Standard: modbus (protocol can be customized) | ||
Features
1. Immersion installation, simple installation, easy maintenance, high cost performance
2. The detection prism is an optical grade sapphire prism, resistant to scratches, scratches and wear
3. With automatic temperature compensation function, the measurement accuracy is not affected by temperature
4. Definable intelligent output signal
Application
1. Real-time monitoring of soluble solids (Brix value) of products by various beverage manufacturers.
2. Continuous monitoring of soluble solids content (Brix value) in process flows such as evaporation, dissolution, mixing, dilution, and extraction.
3. Real-time detection of concentration of various industrial solutions, such as cutting oil, lubricating oil, cleaning fluid, emulsion, and release agent.
4. Concentration detection of various aqueous solutions (food, sauce, beer, wort, beverage, juice, pharmaceutical stock solution, chemical solution, slurry, etc.).
