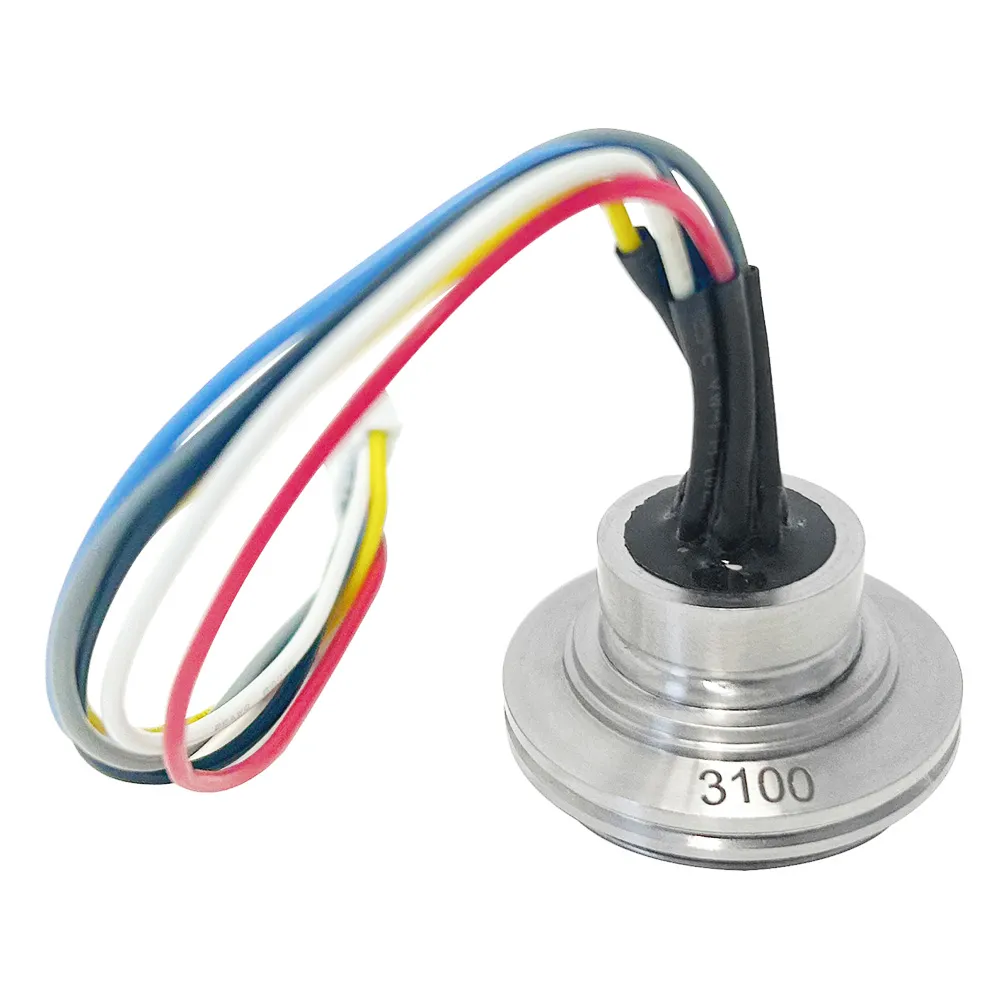

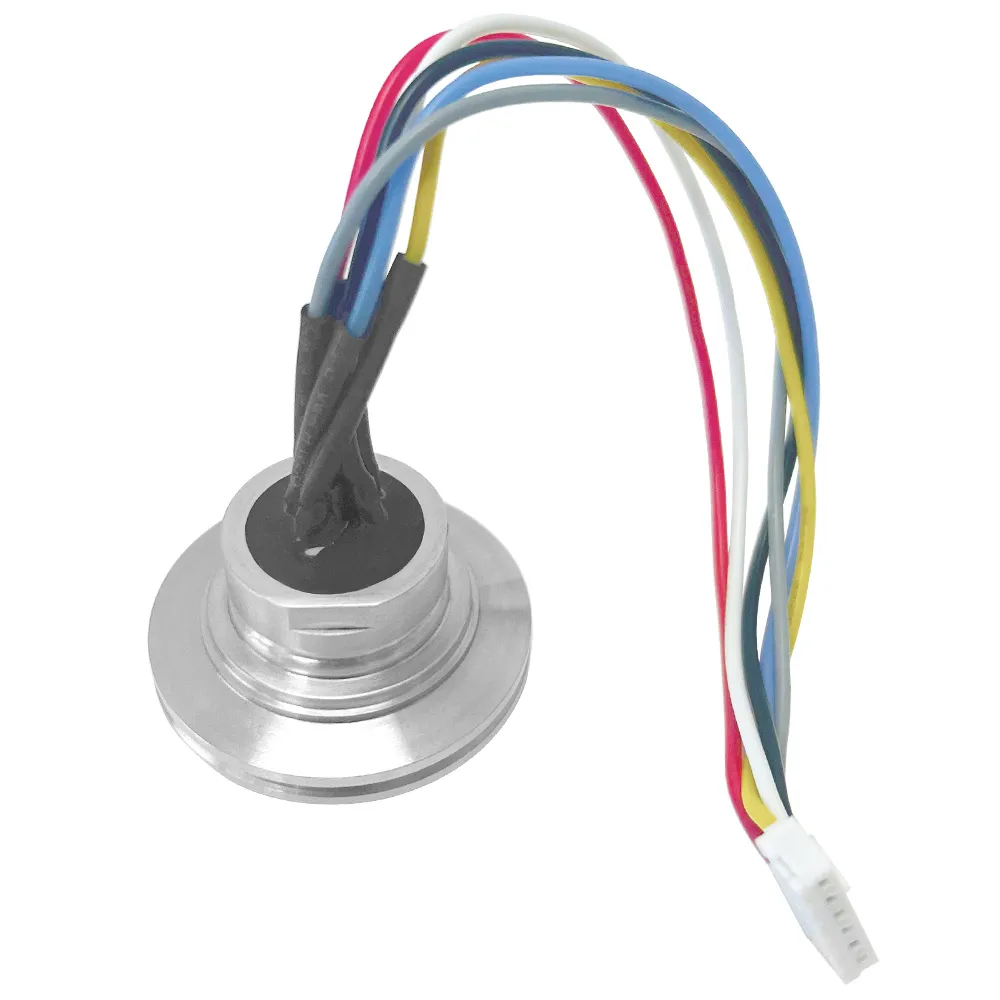

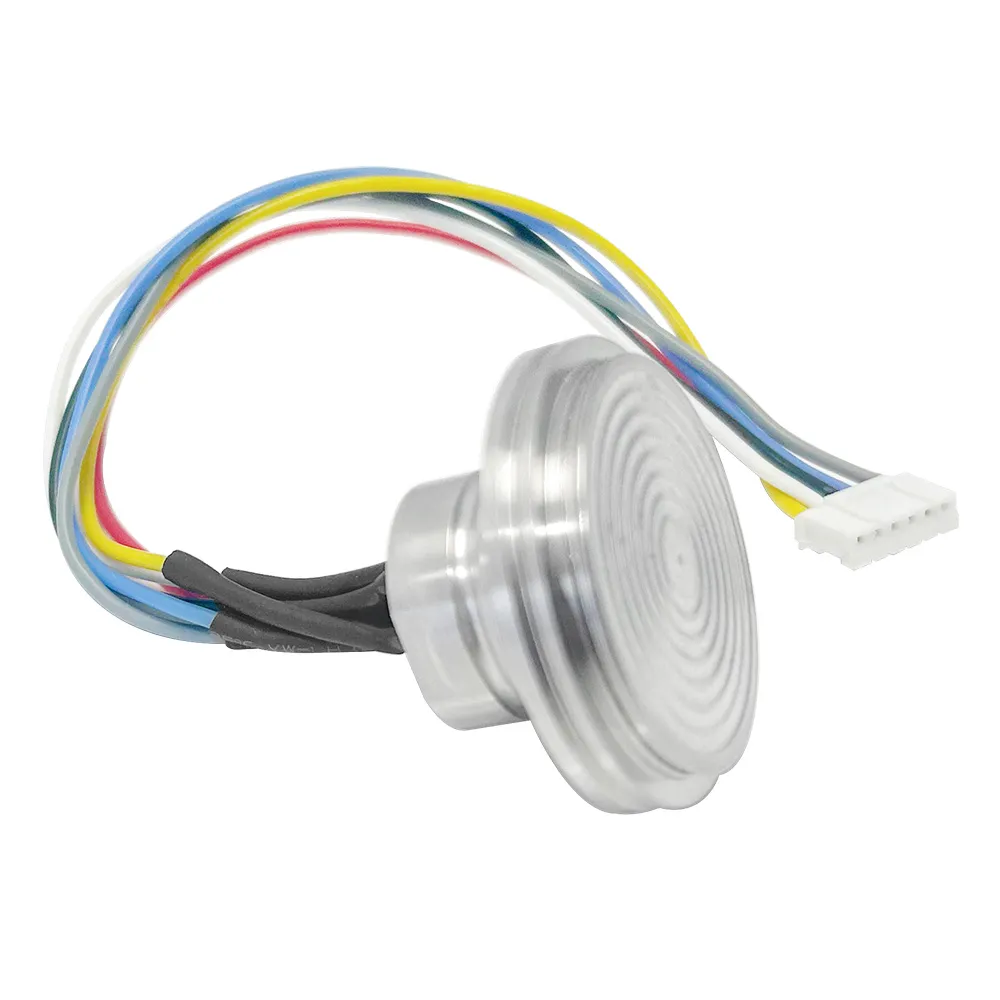

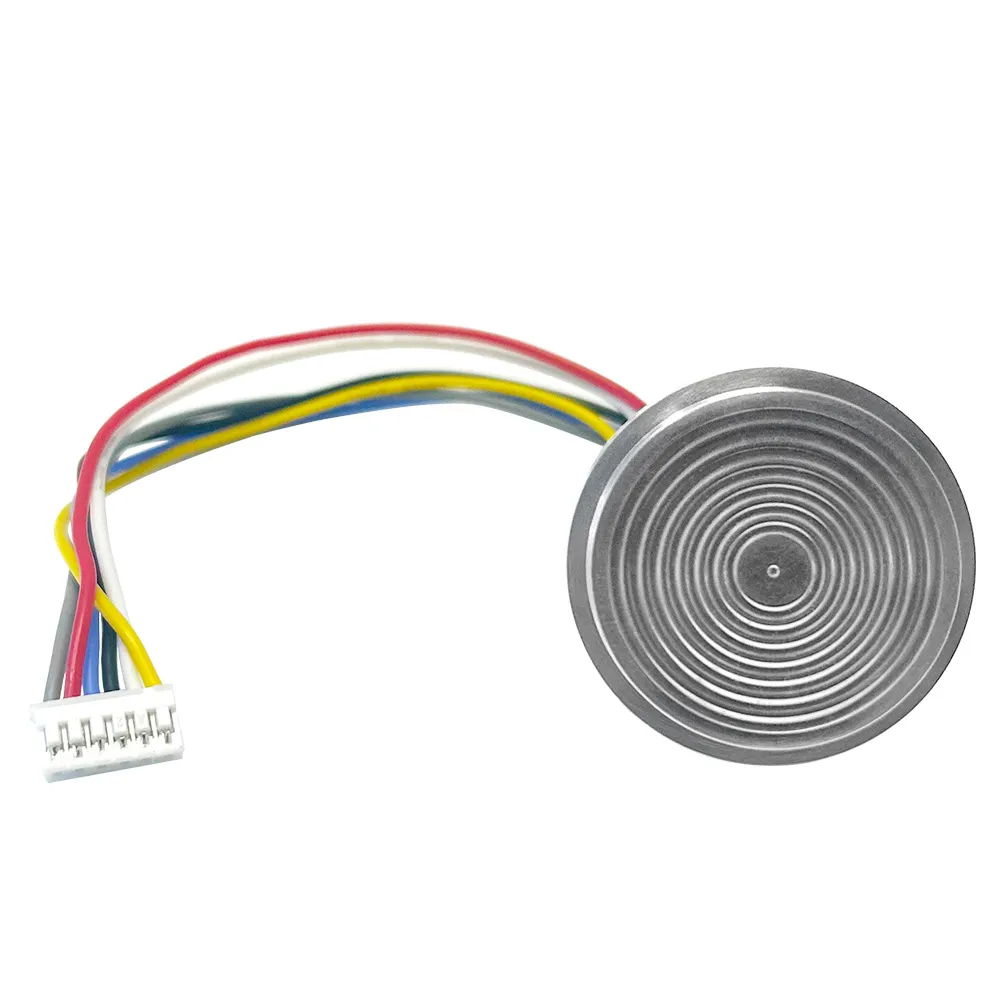

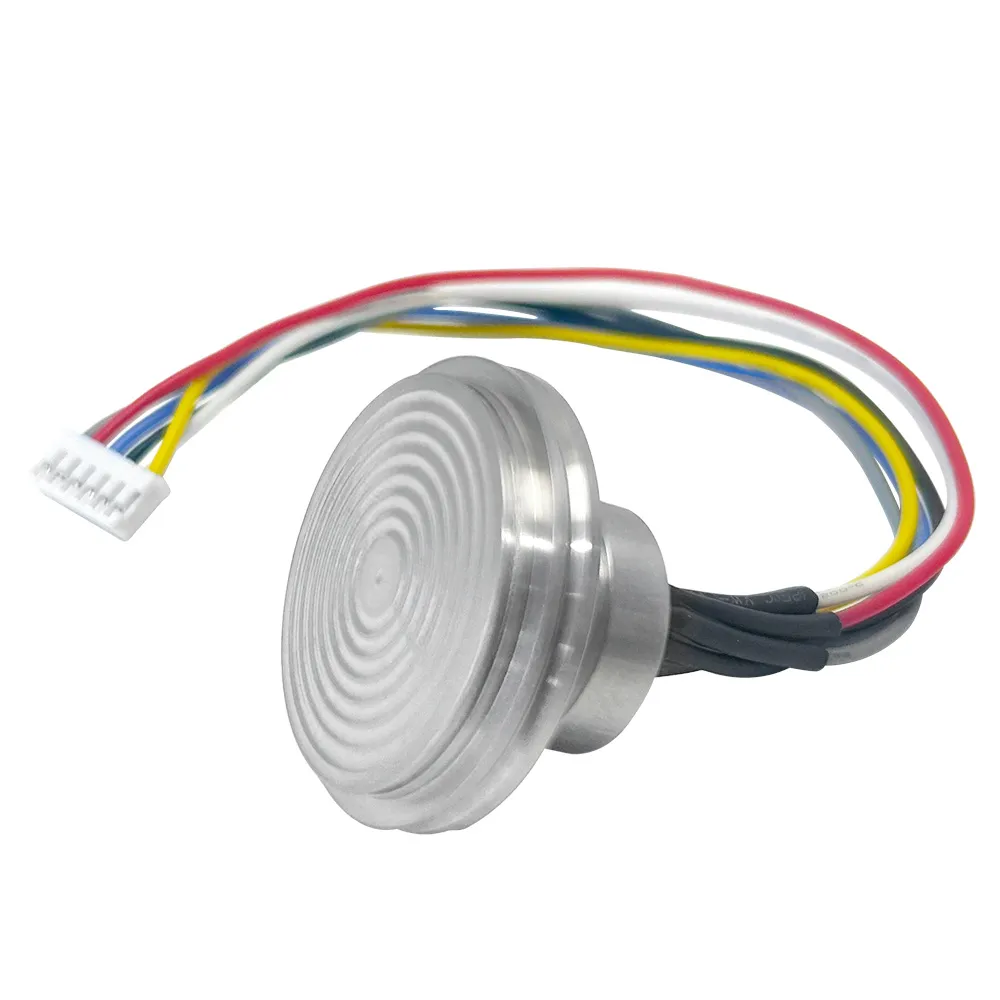

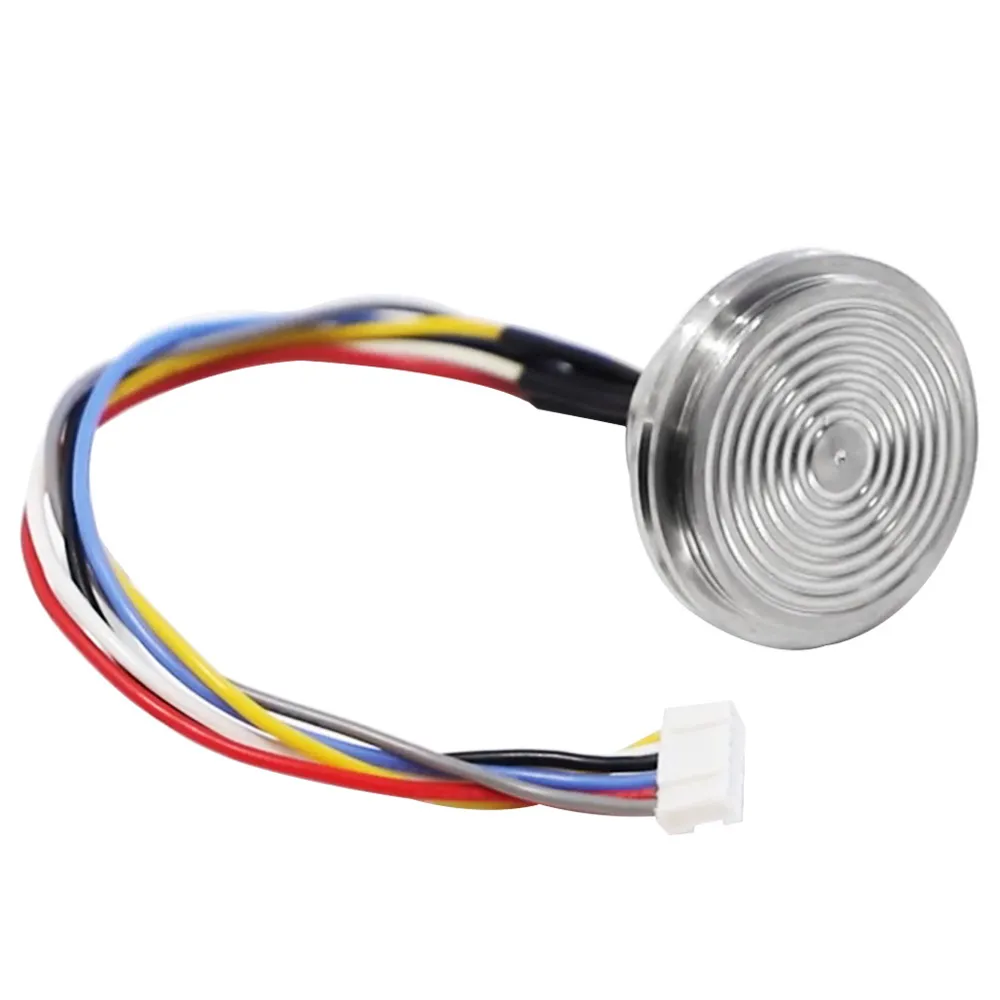

Description
Technical Parameters
| Application types | High stability (monocrystalline silicon) |
| Pressure type | G: Gauge pressure |
| A: Absolute pressure | |
| Measurement range | -100kPa~0-10kPa~5MPa |
| Input impedance | 5K～7KΩ |
| Output impedance | 5K～7KΩ |
| Full scale output | 40-120mV |
| Power supply | 5V DC |
| Comprehensive accuracy | ±0.1%FS ; ±0.25%FS |
| Operating temperature | -40℃～85℃ |
| Long term stability | ±0.05%/year |
| Overload | 200%*FS |
| Insulation resistance | 100MΩ |
| Isolation diaphragm material | SS316L ; Hastelloy C (customizable) |
| Filling liquid | Silicone oil |
Features
1. High accuracy
2. Good repeatability and stability
3. Absolute pressure/gauge pressure is optional
Application
1. Precision control of industrial processes
2. Water supply and drainage systems
3. Hydraulic systems and switches
4. Liquid level measurement
5. Gas and liquid pressure measurement
