High Pressure Micro-Melted Pressure Sensor

Description

Technical Parameters

Application types High pressure (micro-melted)
Dimension Customized thread on demand (Min: M20*1.5)
Pressure type Gauge pressure
Measurement range 0~5MPa~600MPa
Power supply and
corresponding signal output
Power supply Signal output
5V DC 0-5V ; 0.5-4.5V
(9-36) V DC 0-5V ; 0.5-4.5V
(12-36) V DC 4-20mA ; 0-10V
Analog signal 0-5V ; 0-10V ; 0.5-4.5V ; 4-20mA
Digital signal RS485 ; i2C
Input impedance 2K~6KΩ 3K~18KΩ
Output impedance 5K~7KΩ
Comprehensive accuracy ±0.5%FS ; ±1%FS(standard)
Operating temperature -40℃~125℃
Long term stability ±0.2%/year
Overload 200%FS
Insulation resistance 100MΩ
Housing material SS316L ; Hastelloy C
Natural frequency ≥10KHZ

Features

1. Max range up to 600MPa
2. Good repeatability and stability
3. Excellent sealing performance

Application

1. Industrial process control
2. Hydraulic systems and switches
3. Gas and liquid pressure measurement
4. Monitoring systems with large range requirements

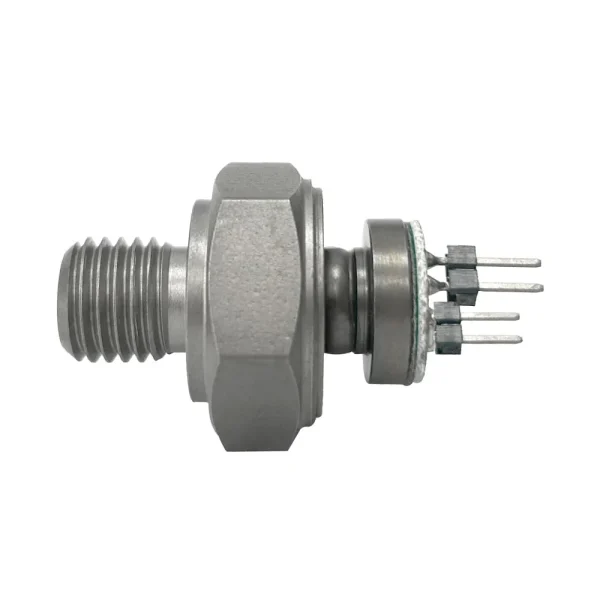

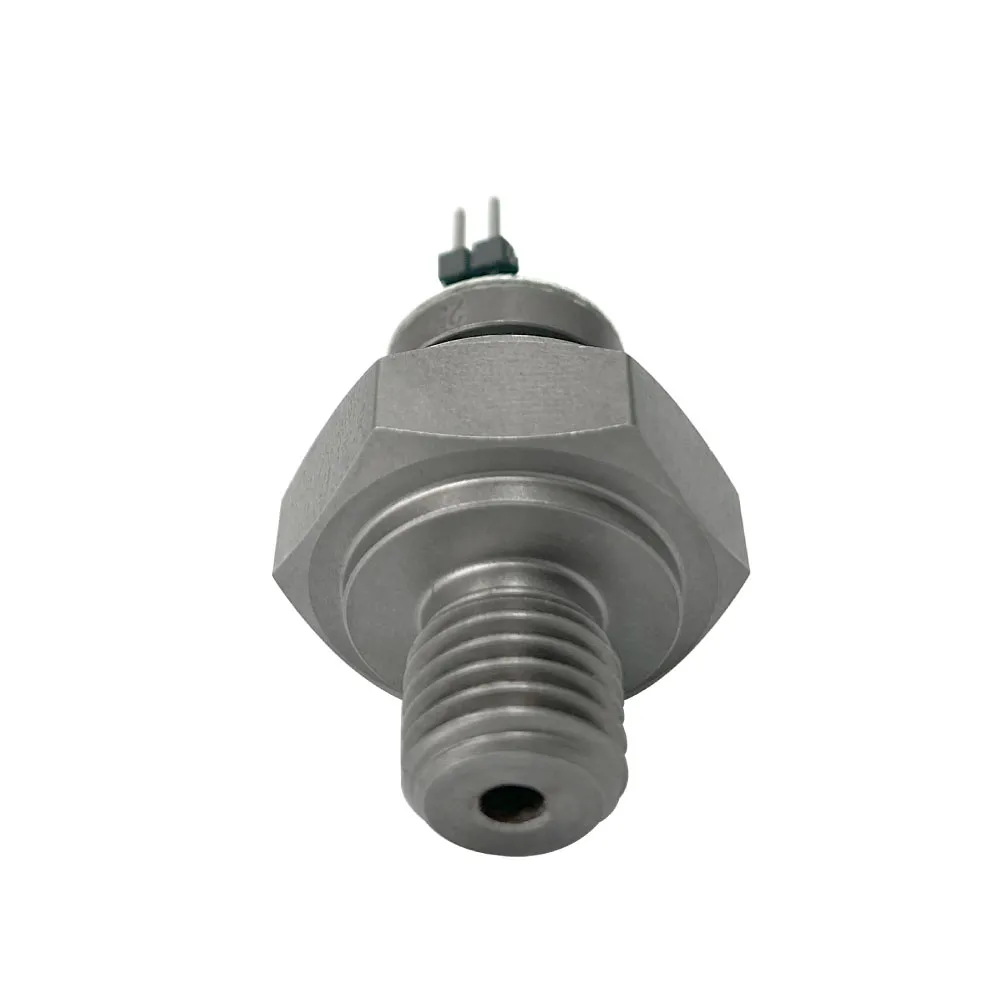

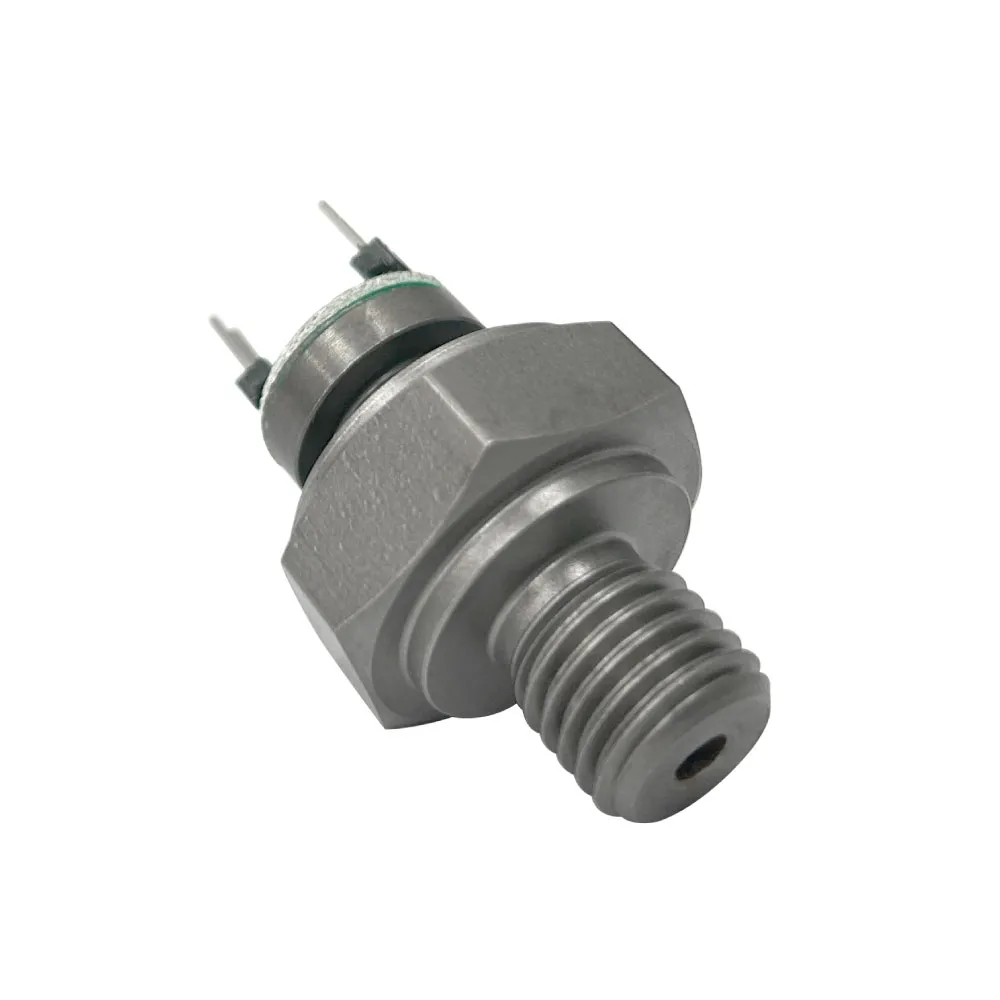

High Pressure Micro-Melted Pressure Sensor

Model:PT124B-211XB

PT124B-211XB high-pressure micro-melted pressure core is a product that uses a self-made glass micro-melted core as a key component, combined with our company’s many years of sensor packaging experience. It has no oil filling and isolation diaphragm, stainless steel structure, no “O” type sealing ring, no temperature release risk, and has the characteristics of large range and high measurement safety. The product has been calibrated as needed, can output digital or analog signals, and can be used directly after connecting to the housing.
