Description
Technical Parameters
| Pressure Range | 200bar |
| Over Pressure | 500bar |
| Burst Pressure | ≥2500bar |
| Output | 4~20mA,0~5V,0~10V |
| Operating Voltage for 4~20mA | 9~32V DC |
| Operating Temperature | -40~125℃ |
| Storage Temperature | -40~125℃ |
| Accuracy @ 25℃ (Includes non-linearity, hysterisis and non-repeatability) |
0.5%FS |
| Accuracy @ -20 ~ 85℃ | 0.25%FS |
| Accuracy @ -40 ~ 125℃ | 1.5%FS |
| Response Time | 1~2ms |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection(4) | Yes |
| Wetted Materials | 17-4PH or customize |
| Housing Materials | SS304 or customize |
| Installation Torque | ≤35 Nm |
Features
1.High integrity, fully welded stainless steel construction without internal seals
2.Work pressure up to 1200 bar
3.Harsh media compatibility
4.EMC tolerance
5.Over-voltage, reverse polarity and output short circuit protection

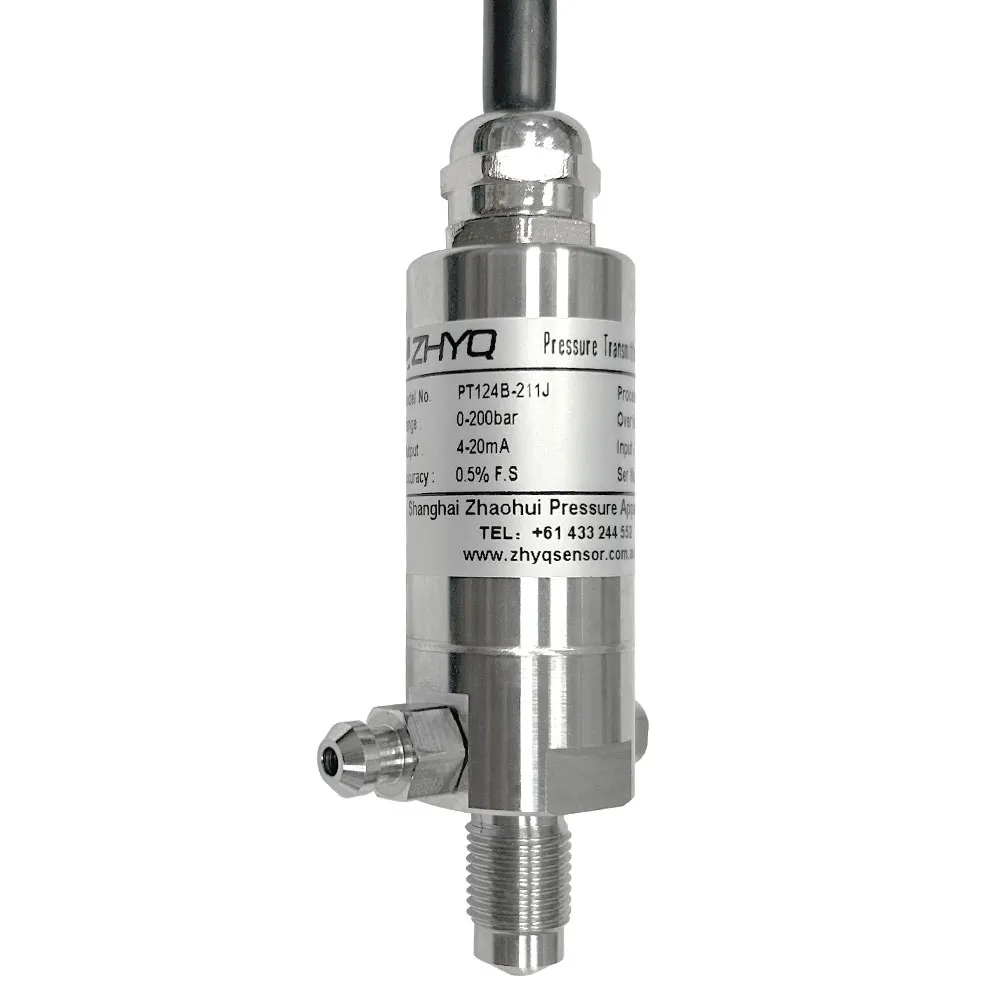

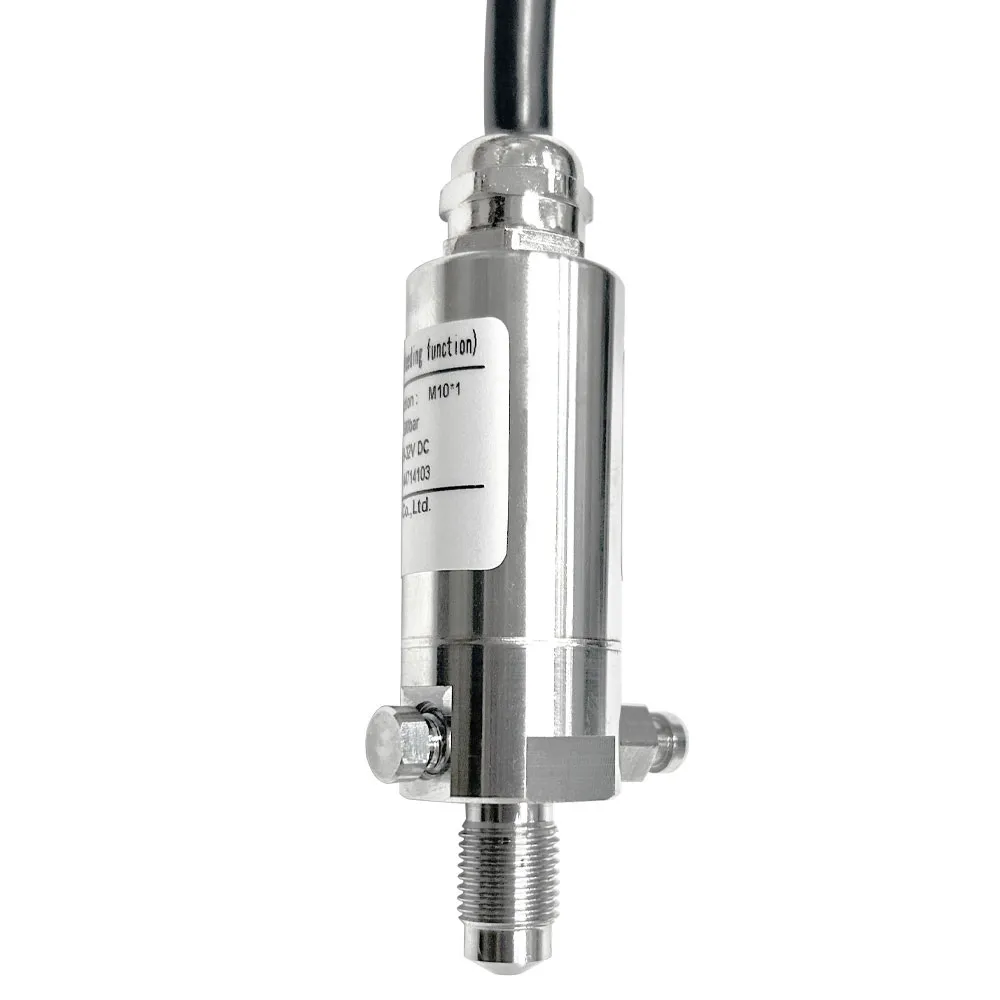

6.With bleeder screw
7.IP67 rating
Application
1.Hydraulic pressures equipment
2.Breaking system laboratory research
3.Common rail
4.Heavy equipment;steam turbines
5.Trucks
6.Engineering vehicles, machinery and equipment
7.Brake fluid testing
