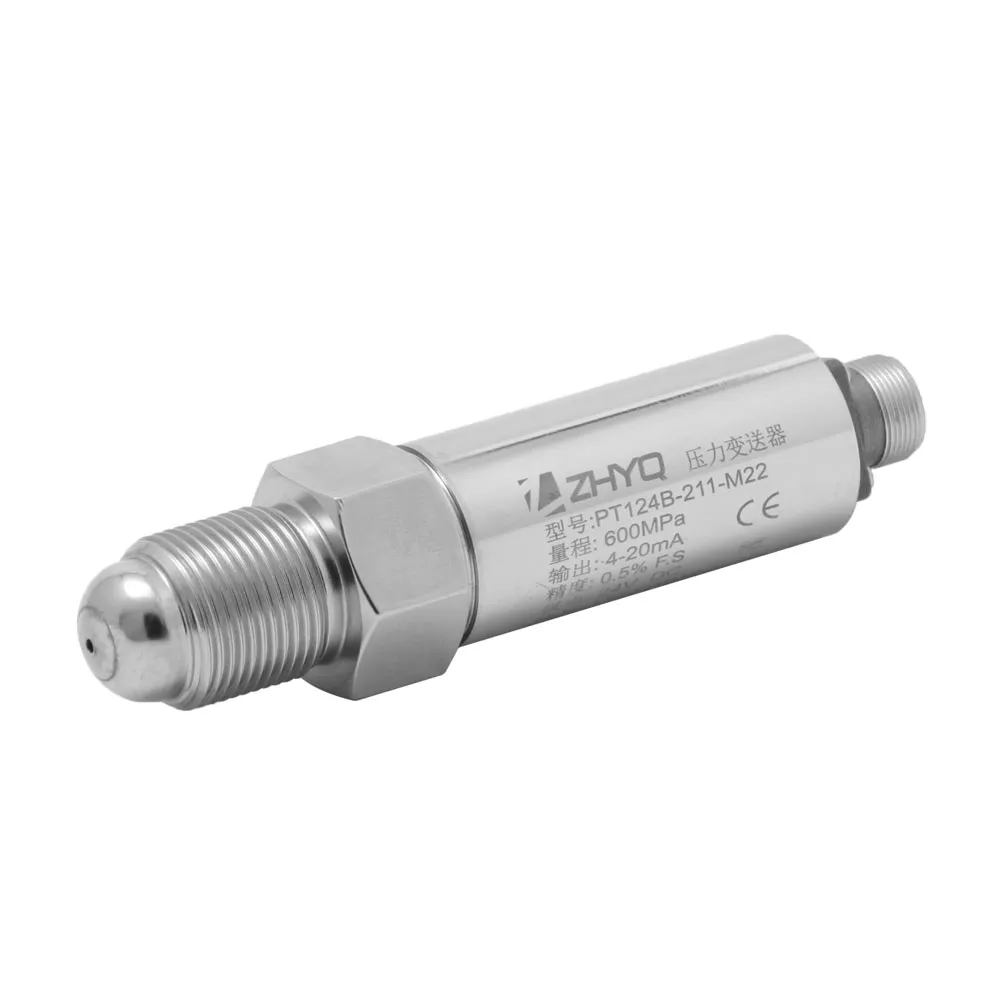

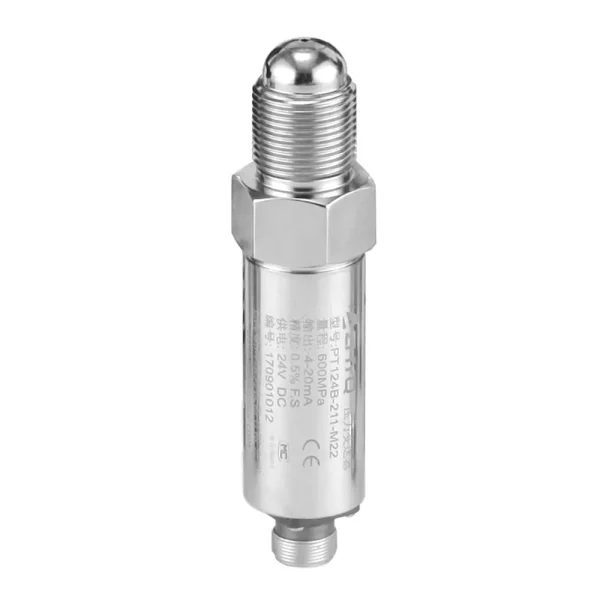

Description
Technical Parameters
| Pressure range | 0~150MPa ; 200-600MPa | ||
| Overload | 150%FS | ||
| Comprehensive accuracy | 0.25%FS ; 0.5%FS ;1%FS | ||
| Long term stability | ±0.2%FS/year | ||
| Non-linearity | 0.2%FS | ||
| Repeatability | 0.2%FS | ||
| Singal output | 4‐20mA ; 0.5‐4.5V ; 0‐5V ; 0‐10V ; RS485 | ||
| Power supply | 24(12~36V)DC | ||
| Storage temperature | ‐20～85℃ | ||
| Operating temperature | ‐10～85℃ | ||
| Compensation temperature | 0～60℃ | ||
| Wetted material | SS304;SS316L(Customizable) | ||
| Housing material | SS304 | ||
| Protection grade | IP65 | ||
| Explosion-proof | Intrinsically safe explosion-proof | ||
| Electrical Connection | 5-PIN aviation plug-in ; M12*1 4-PIN plug-in ; Hirschmann A type ; PG7 gland lead | ||
| Process connection | G1/4 ; G1/2 ; 1/2NPT ; 1/4NPT ; M20*1.5 ; M20*1.5 Spherical seal ; 9/16-18UNF-conical ; 3/4-14UNF-conical | ||
Features
1.Measurement of pressure range from 0 to 10 MPa to 600 MPa
2.No O-rings, no welds, no silicone oil
3.Stainless steel single piece integrated structure
4.Can be mass produced, suitable for OEM production
Application
1. Mechanical engineering applications
2. Measurement of various water pressures and air pressures
3. Medical and health applications
4. Automobile, air conditioning compressor and other industries
5. High-pressure fields such as high-pressure water jets and static presses
