Description
Technical Parameters

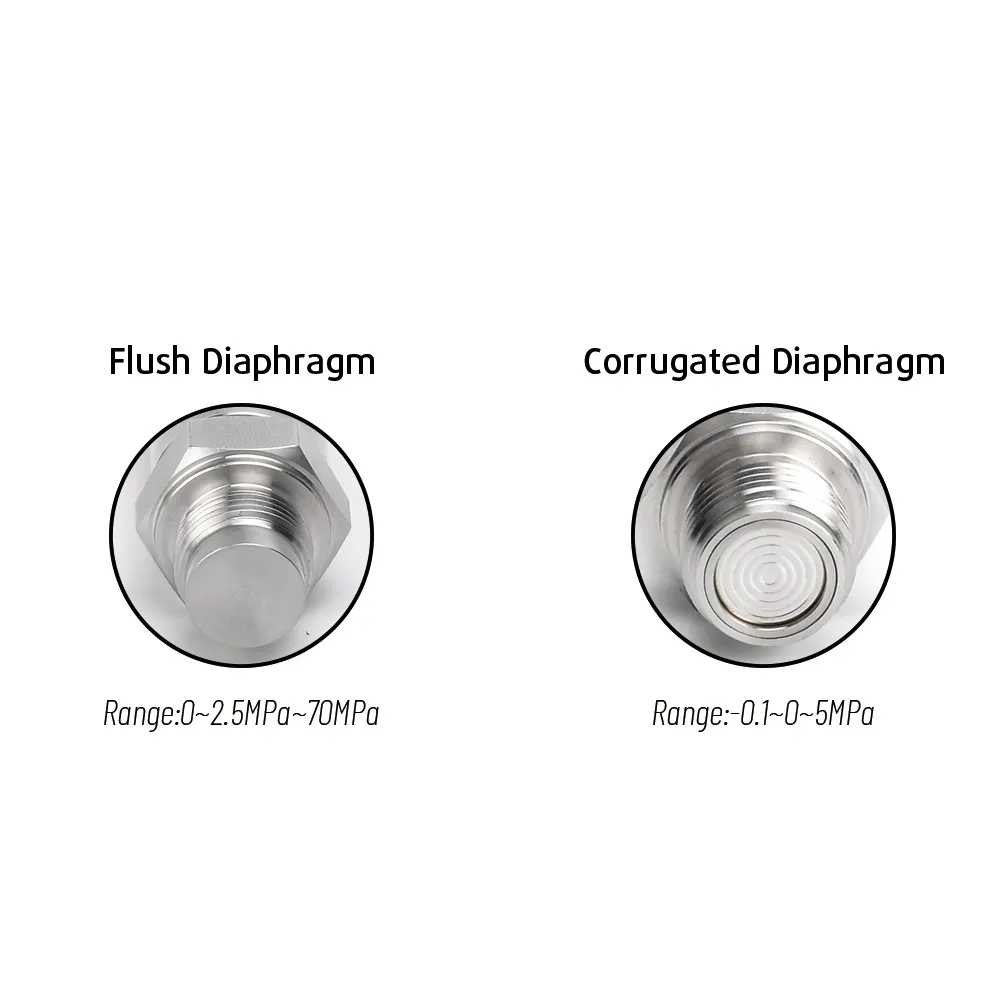

| Pressure range | 0～70MPa (flush diaphragm) | ||
| -0.1～0～5MPa (corrugated diaphragm) | |||
| Overload | 150%FS | ||
| Comprehensive accuracy | 0.25%FS ; 0.5%FS ;1%FS | ||
| Long term stability | ±0.15%FS/year | ||
| Non-linearity | 0.15%FS | ||
| Repeatability | 0.15%FS | ||
| Singal output | 4‐20mA ; 0.5‐4.5V ; 0‐5V ; 0‐10V ; RS485 ; i2c | ||
| Power supply | 24(12~36V)DC | ||
| Storage temperature | ‐20～85℃ | ||
| Operating temperature | ‐10～85℃ | ||
| Compensation temperature | 0～60℃ | ||
| Wetted material | SS316L ; 17-4PH | ||
| Housing material | SS304 | ||
| Protection grade | IP65 | ||
| Electrical Connection | 5-PIN aviation plug-in ; M12*1 4-PIN plug-in ; Hirschmann A type ; PG7 gland lead | ||
| Process connection | G1/2 ; 1/2NPT ; M20*1.5 | ||
Features
1. A variety of industrial standard signal outputs are available
2. Divided into flat film type and diffused silicon front type
3. Zero adjustment and full scale adjustment functions can be added as required
4. Suitable for media that are prone to crystallization, precipitation and impurities
Application
1. Mechanical engineering applications
2. Petrochemical engineering
3. Medical and health applications
4. Food and beverage processing industry
5. Experimental or testing equipment
