Description
Technical Parameters
| Max flow rate | 15m/s |
| Fluid conductivity | ≥5uS/cm |
| Accuracy | ±0.2% of displayed value, ±0.5% of displayed value |
| Nominal diameter (mm) | 3、6、10、15、20、25、32、40、50、65、80、100、125、150、 200、250、300、350、400、450、500、600、700、800、900、1000、1200、1400、1600、1800、2000、2200、2400、2600、2800、3000 |
| Nominal pressure | 10.0MPa、6.3MPa、4.0MPa、 2.5MPa、1.6MPa、1.0MPa、0.6MPa |
| Ambient temperature | Sensor; -25°C~+60°C ; Converter; -10°C~+60°C |
| Lining material | CR ; PTFE ; PU ; FEP ; PFA ; Ceramics |
| Signal electrode type | Fixed ; scraper ; detachable |
| Signal & grounding electrode material | 316L ; Hastelloy B ; Hastelloy C ; silver ; platinum alloy ; tungsten carbide |
| Connection flange material | Carbon steel ; SS304 ; SS316 ; SS316L |
| Grounding ring material | Stainless steel 1Cr18Ni9Ti |
| Electrical interface | M18*1.5 ; M20*1.5 |

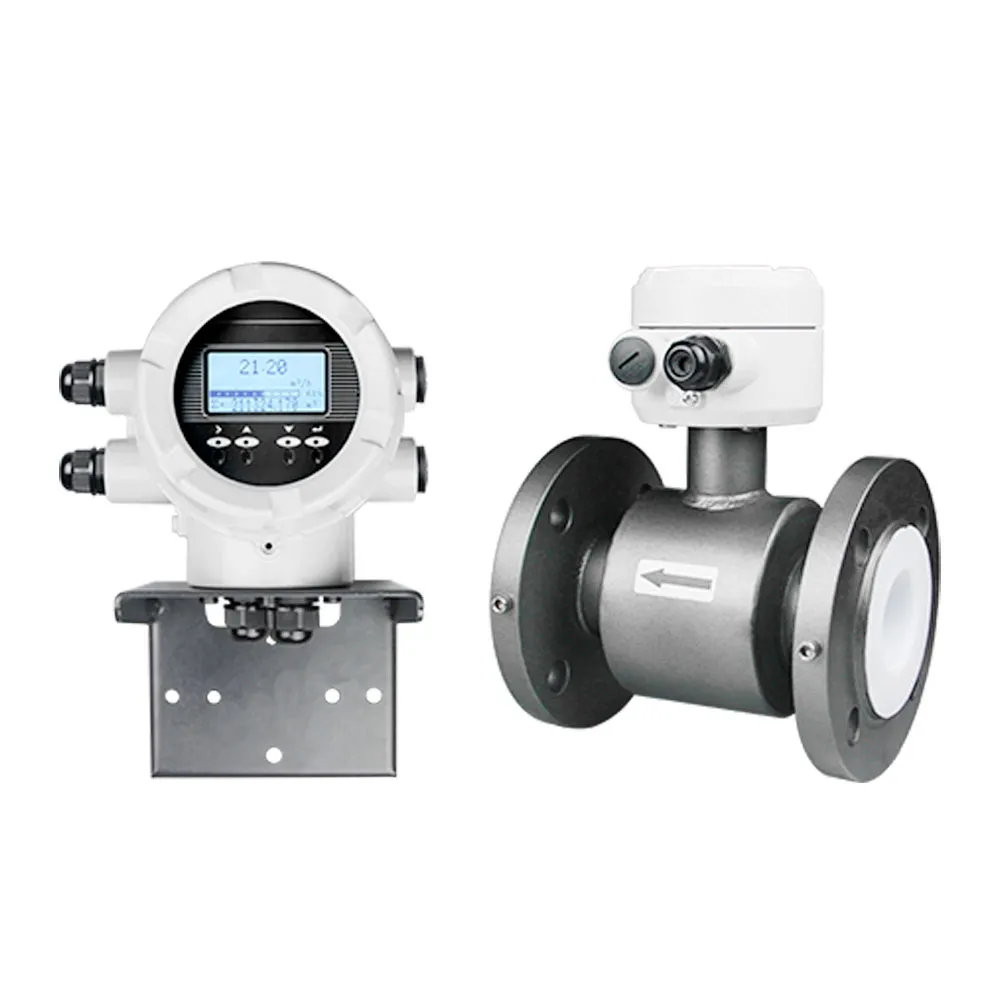

| Transmission distance | Split type; The sensor and the converter are connected by a signal cable(Max 100m) |
| Protection grade | Overall IP65 ; Sensor IP68+Converter IP65 ; Sensor IP67+Converter IP65 ; Overall IP68 |
| Power supply | 220VAC ; 24VDC ; 3.6V battery ; 24VDC & battery dual power supply, etc. |
| Power consumption | ≤20W |
| Display function | Display in Chinese & English, can display instantaneous flow, cumulative flow and alarm display (excitation alarm, empty pipe alarm, flow over limit alarm) |
Features
1. High measurement accuracy, not affected by changes in physical parameters such as fluid density, viscosity, temperature, pressure, etc.
2. Suitable for measuring conductive liquids containing solid particles, fibers or corrosiveness (such as sewage, mud, acid, etc.).
3. No obstacles in the pipeline, small pressure loss, low energy consumption.
4. Bidirectional flow measurement can be achieved, and the output signal is easy to transmit remotely and digitally processed.
Application
1. Industrial production; flow monitoring of corrosive media and slurries in chemical, petroleum, metallurgy and other industries.
2. Water supply and drainage engineering; sewage flow measurement in urban water supply and sewage treatment plants.
3. Food and medicine; flow control of sanitary fluids such as milk and liquid medicine.
4. Energy field; flow measurement of circulating water and coal powder slurry in thermal power plants.
5. Other fluids with conductivity > 5μS/cm
