Economical Micro-Melted Pressure Sensor

Description

Technical Parameters

Application types Economical (micro-melted)
Dimension Diameter: Φ9.5mm
Pressure type Gauge pressure
Measurement range 0~5MPa~100MPa
Power supply I (Current) V (Voltage)
Constant current 1mA Constant Voltage 5V
Analog signal 0-10V ; 0.5-4.5V ; 4-20mA
Digital signal RS485
Input impedance 2K~6KΩ 3K~18KΩ
Output impedance 5K~7KΩ
Comprehensive accuracy ±0.5%FS ; ±1%FS(standard)
Operating temperature -40℃~125℃
Long term stability ±0.2%/year
Overload 500%FS (<5MPa)
200%FS (≥5MPa)
Insulation resistance 100MΩ
Housing material SS316L ; Hastelloy C
Natural frequency ≥10KHZ

Features

1. Max range up to 100MPa
2. Good repeatability and stability
3. Compact size
4. Excellent sealing performance

Application

1. Industrial process control
2. Water supply and drainage system
3. Hydraulic system and switch
4. Gas and liquid pressure measurement
5. Monitoring system with large range requirements

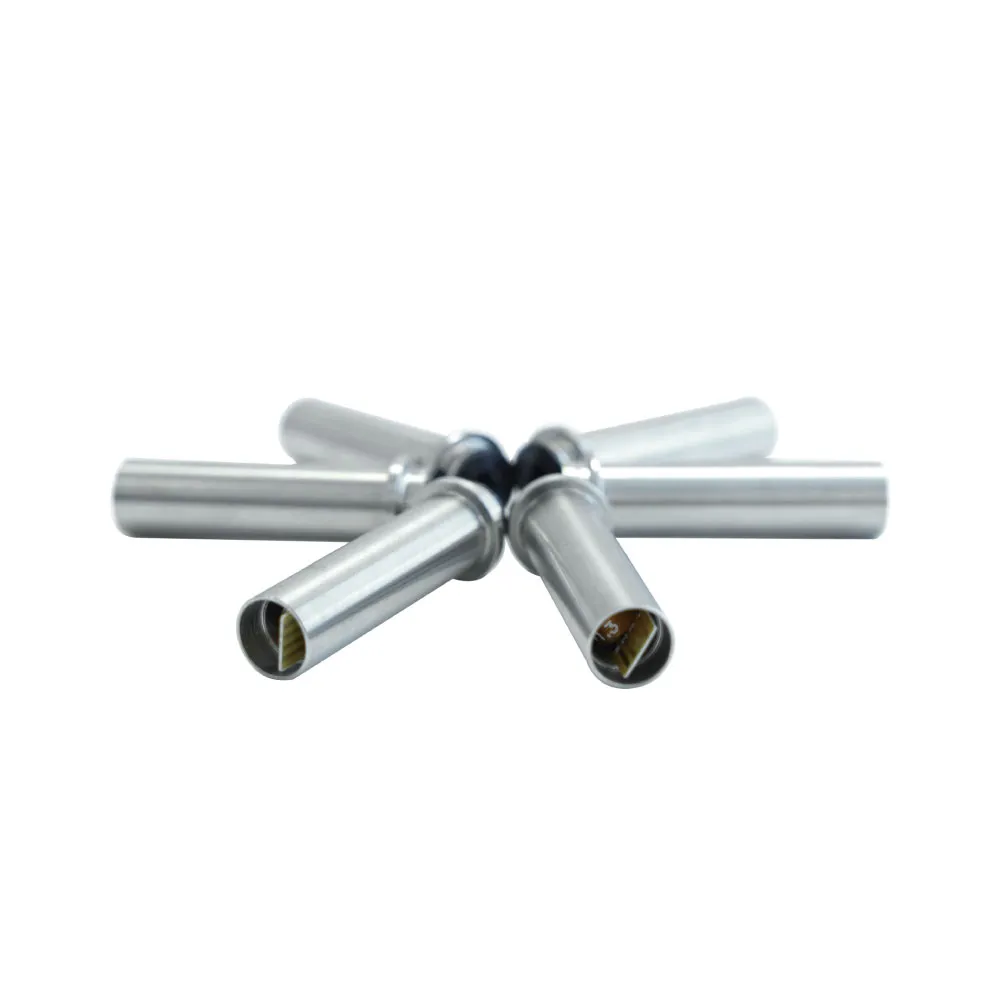

Economical Micro-Melted Pressure Sensor

Model:PT124B-211XA

PT124B-211XA economical micro-melted pressure core is a product that uses a self-made glass micro-melted core as a key component. It is produced in combination with our company’s many years of experience in sensor packaging. It has no oil filling and isolation diaphragm, stainless steel structure, no “O” type sealing ring, no temperature release risk, and has the characteristics of small size, large range, and high measurement safety. The product has been calibrated as needed, can output digital or analog signals, and can be used directly after connecting to the housing.
