Description
Technical Parameters
| Pressure range | ‐0.1～0～40MPa | ||
| Overload | 150%FS | ||
| Comprehensive accuracy | 0.1%FS ; 0.25%FS ; 0.5%FS | ||
| Long term stability | ±0.1%FS/year | ||
| Non-linearity | 0.1%FS | ||
| Repeatability | 0.1%FS | ||
| Singal output | 4‐20mA ; 0.5‐4.5V ; 0‐5V ; 0‐10V ; RS485 ; i2c | ||
| Power supply | 24(12~36V)DC | ||
| Storage temperature | ‐20～85℃ | ||
| Operating temperature | ‐10～85℃ | ||
| Compensation temperature | 0～60℃ | ||
| Wetted material | SS304;SS316L(Customizable) | ||
| Housing material | SS304 | ||
| Protection grade | IP65 | ||

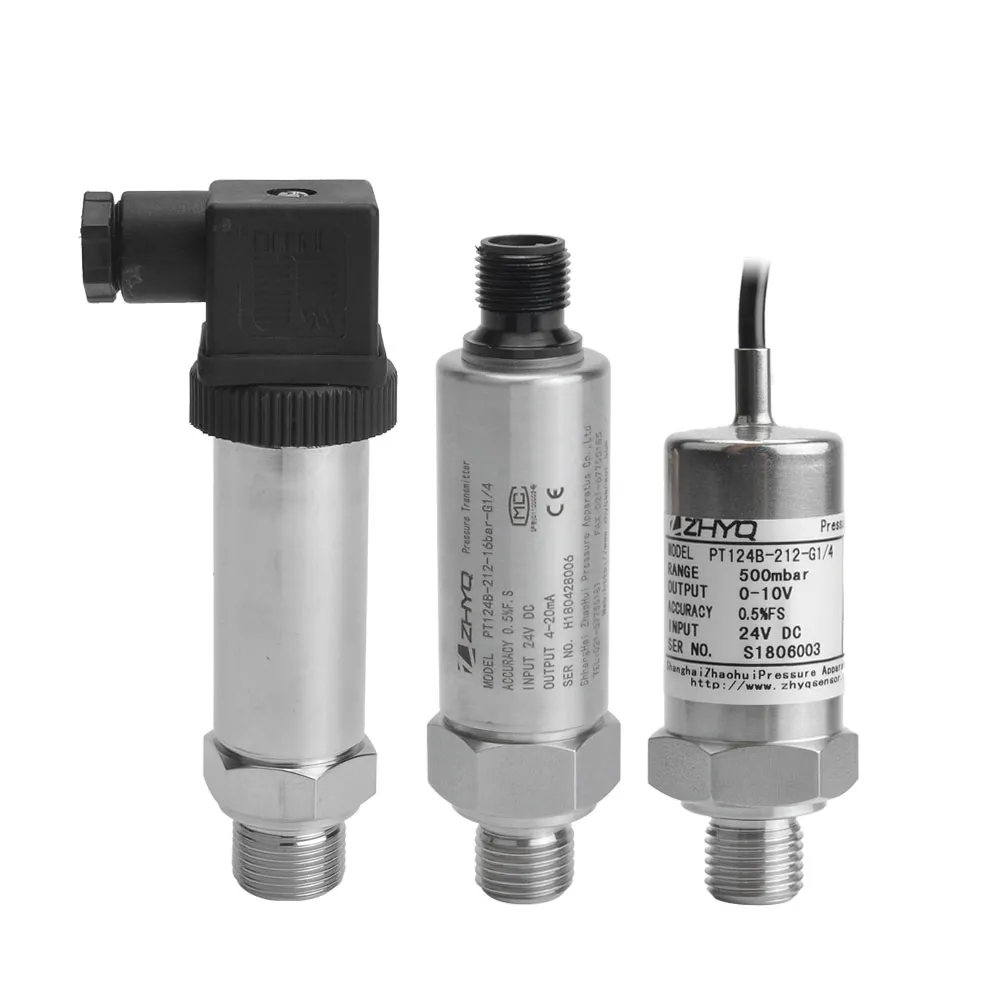

| Electrical Connection | 5-PIN aviation plug-in ; M12*1 4-PIN plug-in ; Hirschmann A type ; PG7 gland lead | ||
| Process connection | G1/4 ; G3/8 ; G1/2 ; 1/2NPT ; 1/4NPT ; M14*1.5 ; M20*1.5, etc. | ||
Features
1. A variety of industrial standard signal outputs are available
2. Small temperature drift, high precision, accurate measurement
3. Built-in anti-interference amplifier circuit, strong environmental adaptability
4. Zero adjustment and full scale adjustment functions can be added as required
Application
1. Mechanical engineering applications
2. Measurement of various water pressures and air pressures
3. Medical and health applications
4. Food and beverage processing industry
5. General industrial control field
