Dual Flange Remote Differential Pressure Transmitter

Description

Technical Parameters

Differential pressure measurement range ‐100kPa~0-10kPa~5Mpa
Overload 150%FS
Singal output 4‐20mA ;  4‐20mA+HART ; RS485
Power supply 24(12~36V)DC
Comprehensive accuracy 0.1%FS ; 0.25%FS ; 0.5%FS
Long term stability ±0.1%FS/year
Non-linearity 0.1%FS
Repeatability 0.05%FS
Storage temperature ‐40~85℃
Operating temperature ‐20~125℃
Compensation temperature ‐10~80℃
Body material SS316L
Process connection material SS316L
Diaphragm material SS316L ; Hastelloy C ; Tantalum (customizable)
Housing material Flameproof aluminum housing
On-site display LCD digital display
Protection grade IP67
Electrical Connection Ex-proof metal gland ; M20*1.5 Ex-proof gland (external) ; M20*1.5 Ex-proof gland (internal) ; 1/2NPT Ex-proof gland (external) ; 1/2NPT Ex-proof gland (internal) ; G1/2Ex-proof gland (external) ; G1/2 Ex-proof gland (internal) ; M20*1.5 plastic gland
Process connection Flange(DN50/DN80,customizable) ; Tri-clamp
Capillary length 1m ; 3m ; 5m ; 7m

Features

1. Flameproof explosion-proof design, high safety
2. High-performance silicon sensor technology
3. High precision, high stability, with polarity protection
4. Zero point and range are adjustable by buttons
5. High temperature, high pressure, negative pressure resistant
6. Display head can be rotated 320°
7. HART communication protocol or RS485 digital signal optional

Application

1. Hydraulic and pneumatic control systems, liquid level measurement and control
2. Petrochemical, environmental protection (CEMS), pharmaceuticals
3. Power station operation inspection, locomotive braking system
4. Thermal power units, light industry, machinery, metallurgy
5. Industrial process detection and control
6. Building automation, constant pressure water supply, automatic control and detection systems



Dual Flange Remote Differential Pressure Transmitter

Model:PT124B-3503

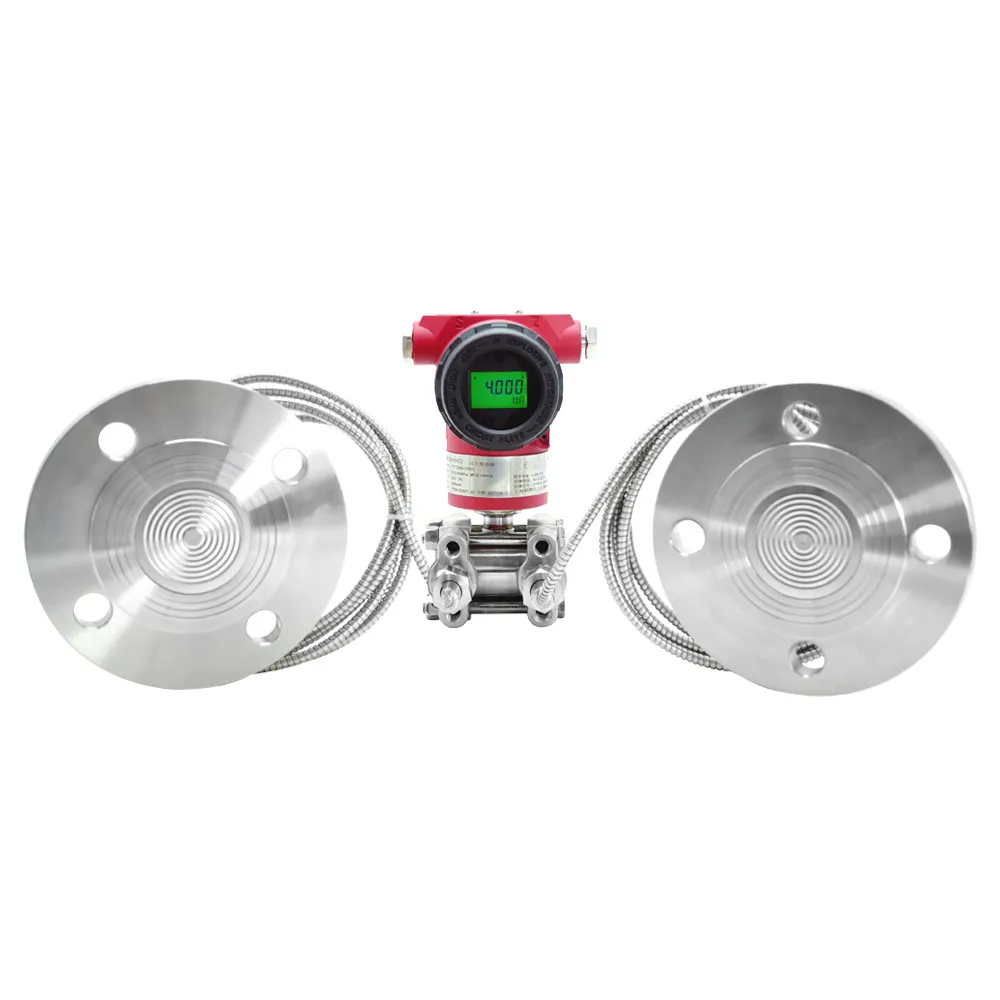

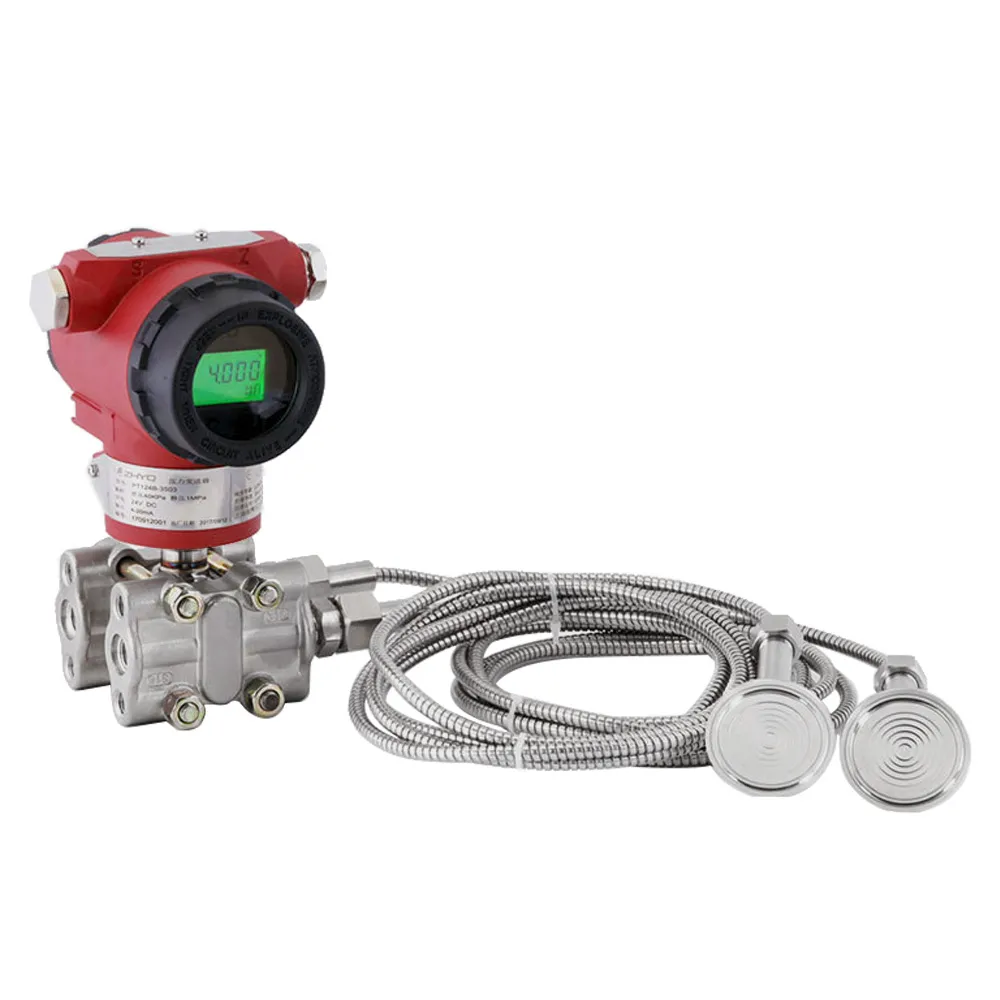

PT124B-3503 differential pressure transmitter is dual flange mounting type , it is used to prevent medium from entering directly into the pressure-sensing assembly of the pressure transmitter. It is connected to the transmitter using capillary filled with fill fluid, such as silicon oil, the transmitter then converts the pressure or differential pressure into a 4-20mA DC signal output.

The model PT124B-3503 can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mA DC HART signal corresponding to the measured pressure differential. The model PT124B-3503 also features remote setup and monitoring though communication with the model RST375 TERMINAL or RSM100 Modem.
