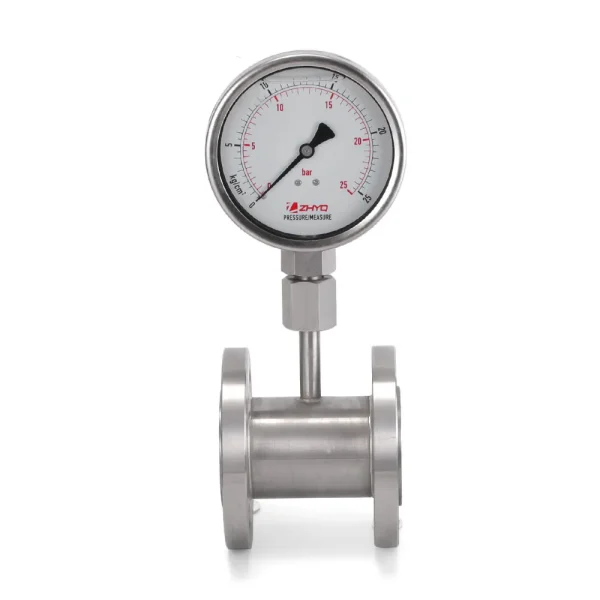

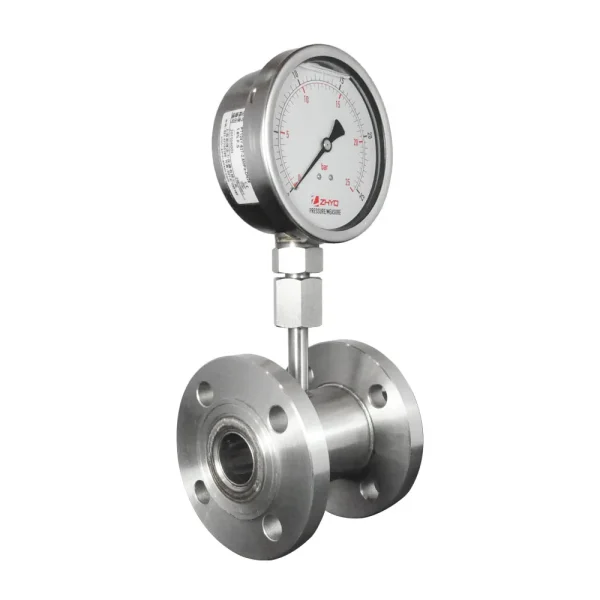

Cylinder Diaphragm Pressure Gauge with Flange Connection

Description

Technical Parameters

Pressure range 0~10MPa
Pointer accuracy ±1.6%FS ; ±2.5%FS
Overload 150%FS
Dial Filling Material Silicone oil
Dial Diameter 100mm
Max Diaphragm Temp. 125℃
Chamber & wetted material SS316L
Process Connection Flange

Features

1. Completely sealed cylindrical diaphragm without corners and edges
2. Can be directly installed between two flanges
3. A variety of special materials are available

Application

1. Suitable for permanent installation directly in the pipeline
2. Suitable for flowing, pure and corrosive media
3. Chemical processing industry
4. Petrochemical industry
5. Food and beverage industry
6. Spraying equipment



Cylinder Diaphragm Pressure Gauge with Flange Connection

Model: PT124Y-627

PT124Y-627 flange connection cylinder diaphragm pressure gauge,This diaphragm seal pressure gauge is a high-performance pressure gauge designed by our company. The technology used in this product is to use diaphragm seal to separate the test device from the process medium, and at the same time transmit the pressure change to the pressure element.
This series of products adopts a cylindrical diaphragm structure design, without protruding corners and embossing, no measurement dead zone, and the diaphragm has absolutely no lateral contraction. It is mainly used to measure the pressure of high-viscosity, easy-to-crystallize, easy-to-polymerize liquids, corrosive media, and petrochemical and alkali, chemical fiber, dyeing, pharmaceutical, food and cheese making and other industrial fluid media.
