Corrosion Resistant Submersible Hydrostatic Level Transmitter

Description

Technical Parameters

Measurement range 50m H2O
Accuracy 0.1%FS ; 0.25%FS ; 0.5%FS ; 1%FS
Long term stability ±0.2%FS/year
Overload 150%FS
Power supply 12~36V DC
Signal output 4~20mA ; 0-5V ; 0-10V ; RS485
Response Time <3mS
Electrical Connection Gland Lead
Storage temperature -40~85℃
Operating temperature -20~85℃
Compensation temperature 065℃
Probe material SS316L ; Hastelloy C ; PTFE
Protection grade IP68

Features

1.Corrosion resistant, moist proof, frost proof, seepage prevention
2.Various signal output for industrial standard, flexible calibration
3.High accuracy, good stability
4.High performance pressure-sensitive core with small temperature drift

Application

1. Chemical industry; reactors, storage tanks
2. Water treatment industry; sedimentation tanks, reservoirs, clear water tanks
4. Food and pharmaceutical industry; raw material tanks, fermentation tanks
5. Urban water supply and drainage; reservoirs, water towers, reservoirs
6. Environmental monitoring; used to monitor the liquid level of industrial wastewater and domestic sewage discharge pools
7. Power industry; boiler drum water level, cooling tower pool level
8. Oil and gas; oil storage tanks, buffer tanks of gathering and transportation pipelines
9. Agriculture and water conservancy; rivers, lakes, reservoirs

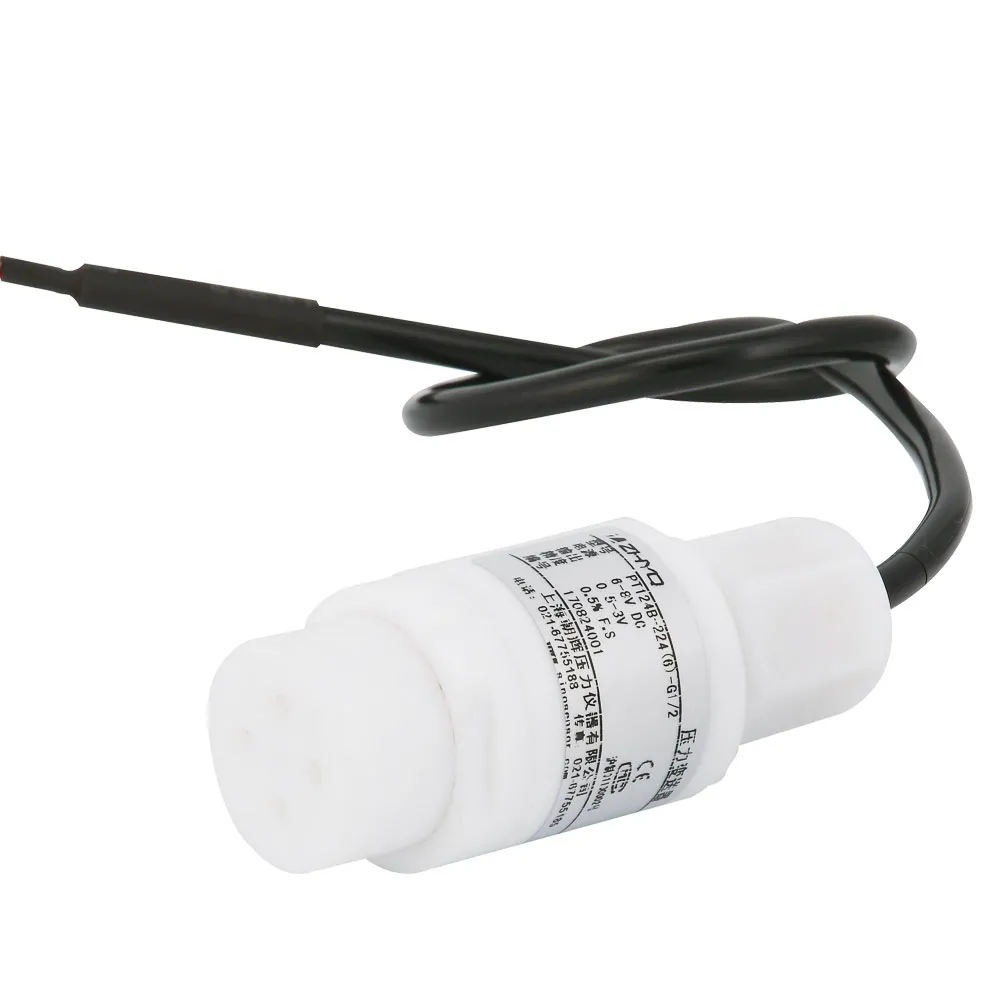

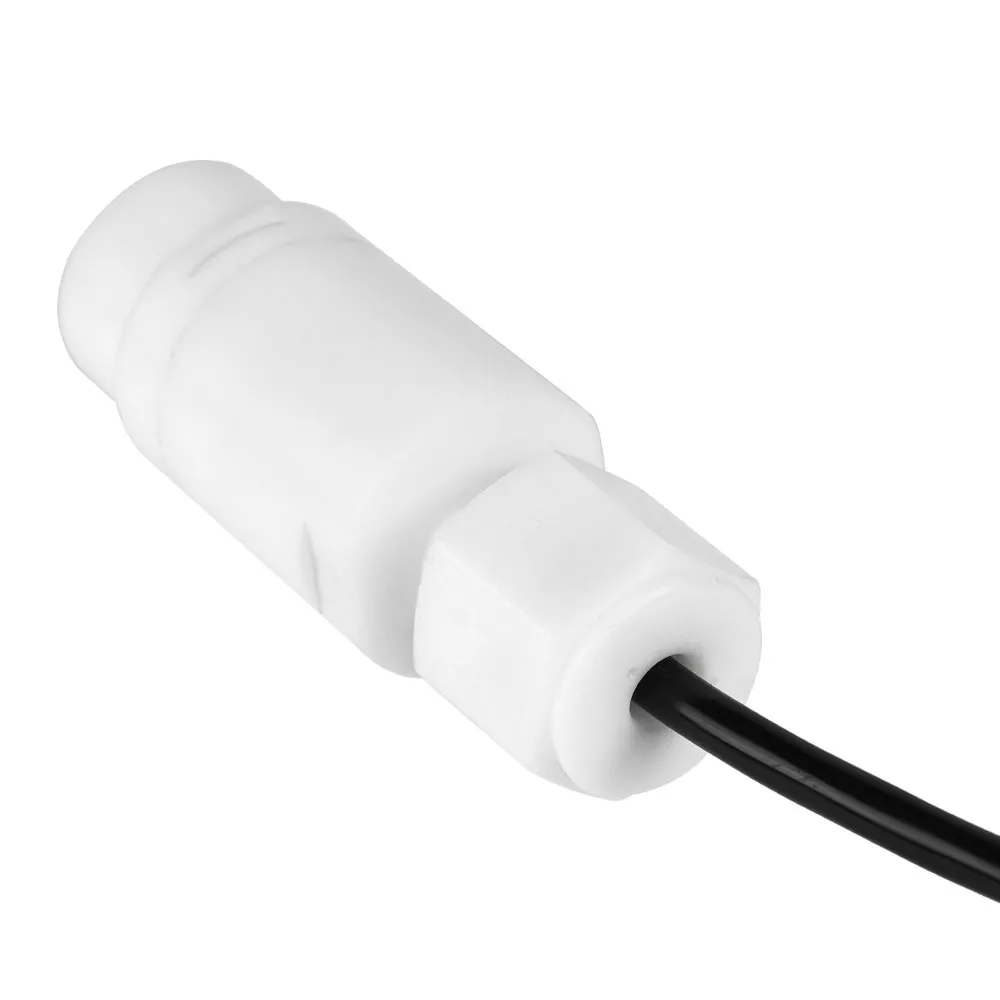

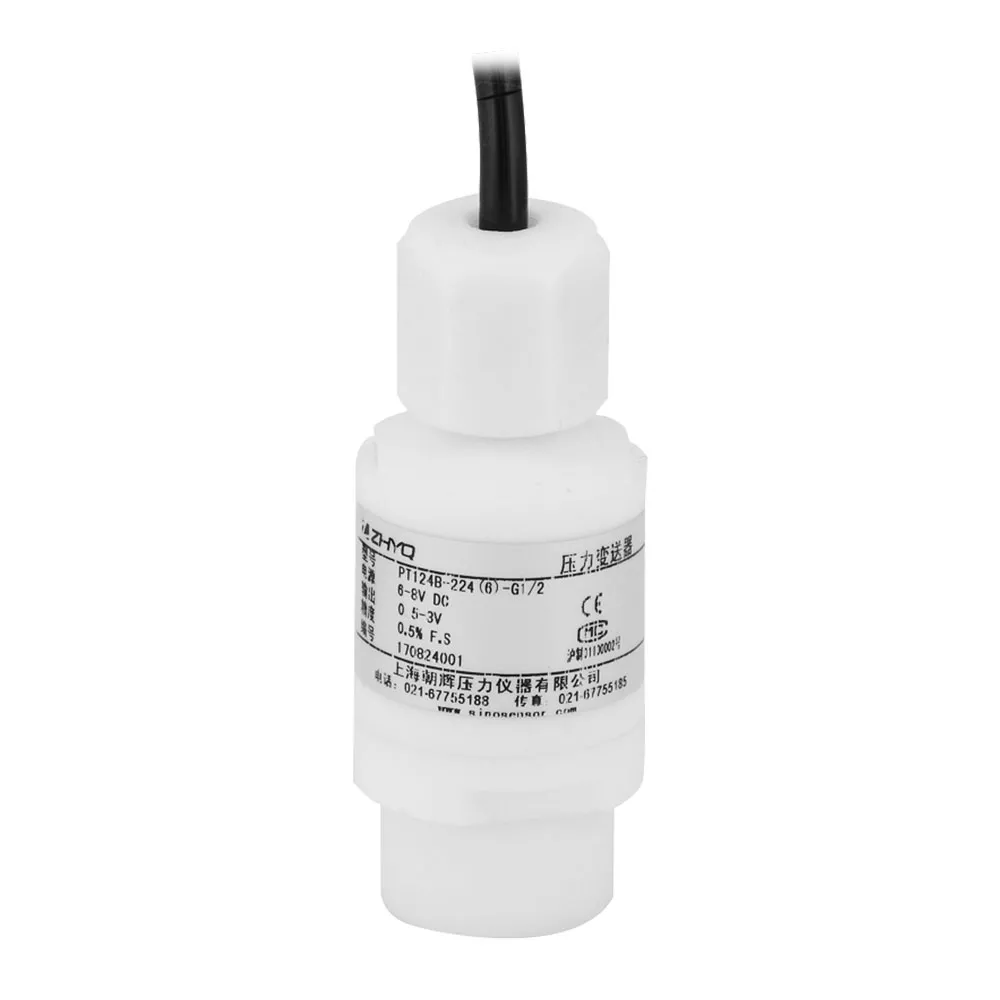

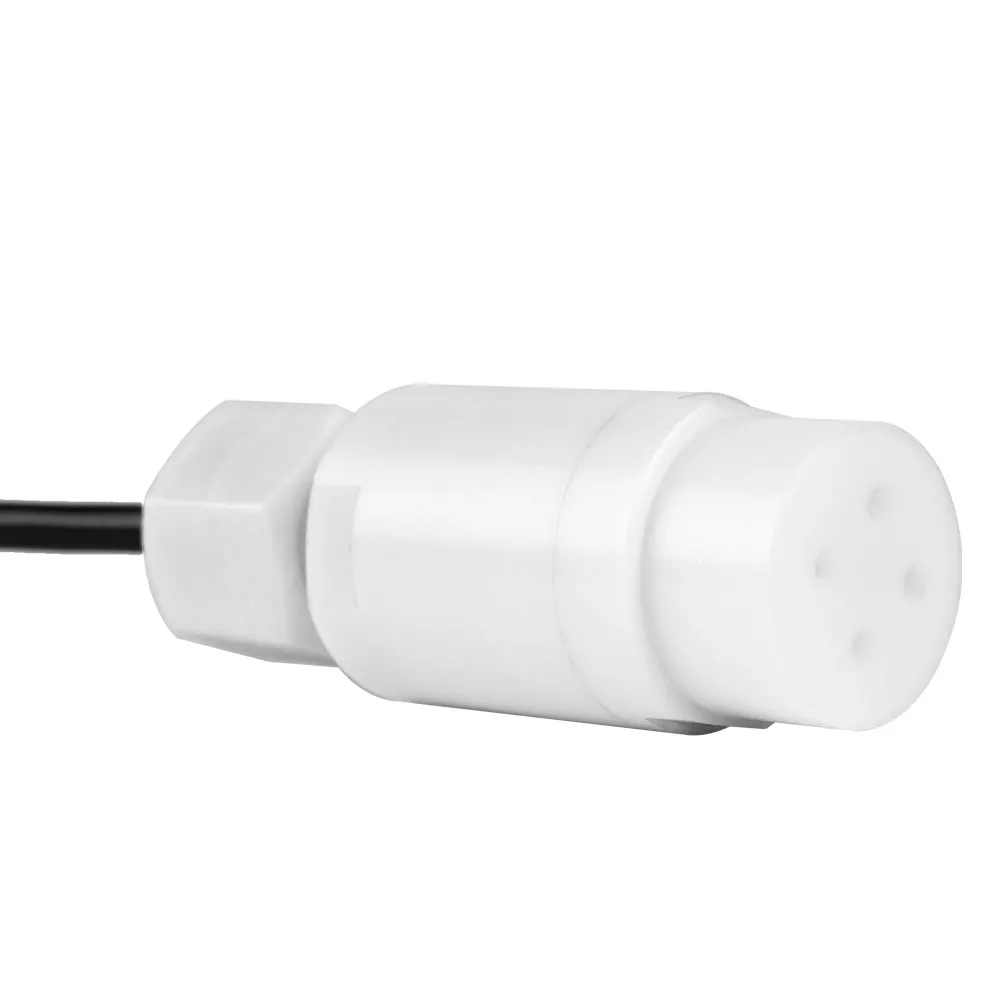

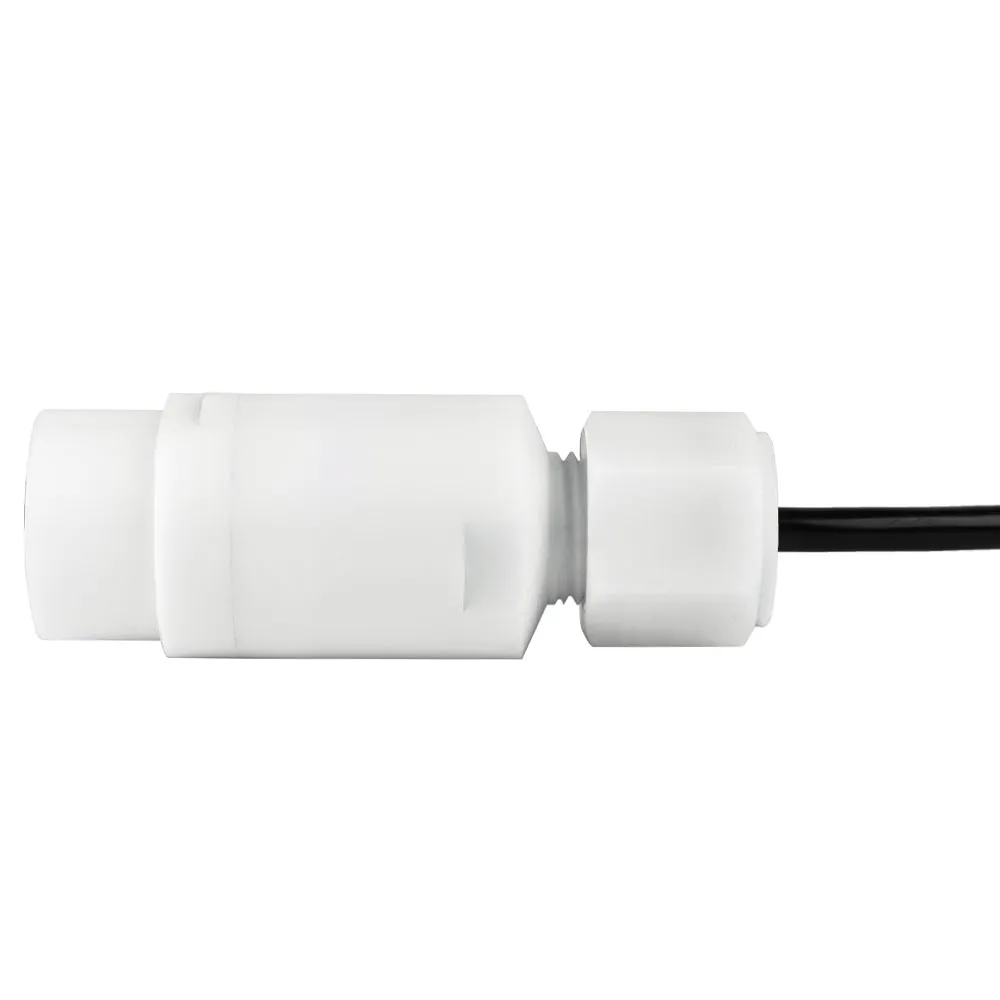

Corrosion Resistant Submersible Hydrostatic Level Transmitter

Model:PT124B-224

PT124B-224 corrosion resistant submersible hydrostatic level transmitter, it can convert various changeable level high into standard current signal, so as to transferring to the operating control room and so as for Instrument’s or computer device’s converging display, alarm or auto-control.

This level sensor can be used for detecting the level of various strong corrosive liquid. The probe and cable of the level sensor adopt corrosive-resistance material, it can directly deep into the container to sense the changes of the liquid level, the transmitter adopts full solidified and sealed module structure.

It’s advantages arestronger anti-corrosive, strong acidity or alkaline liquid ,petroleum, metallurgy, Hydraulic, Chemical liquid ,simply structure, easy to install, versatility.
