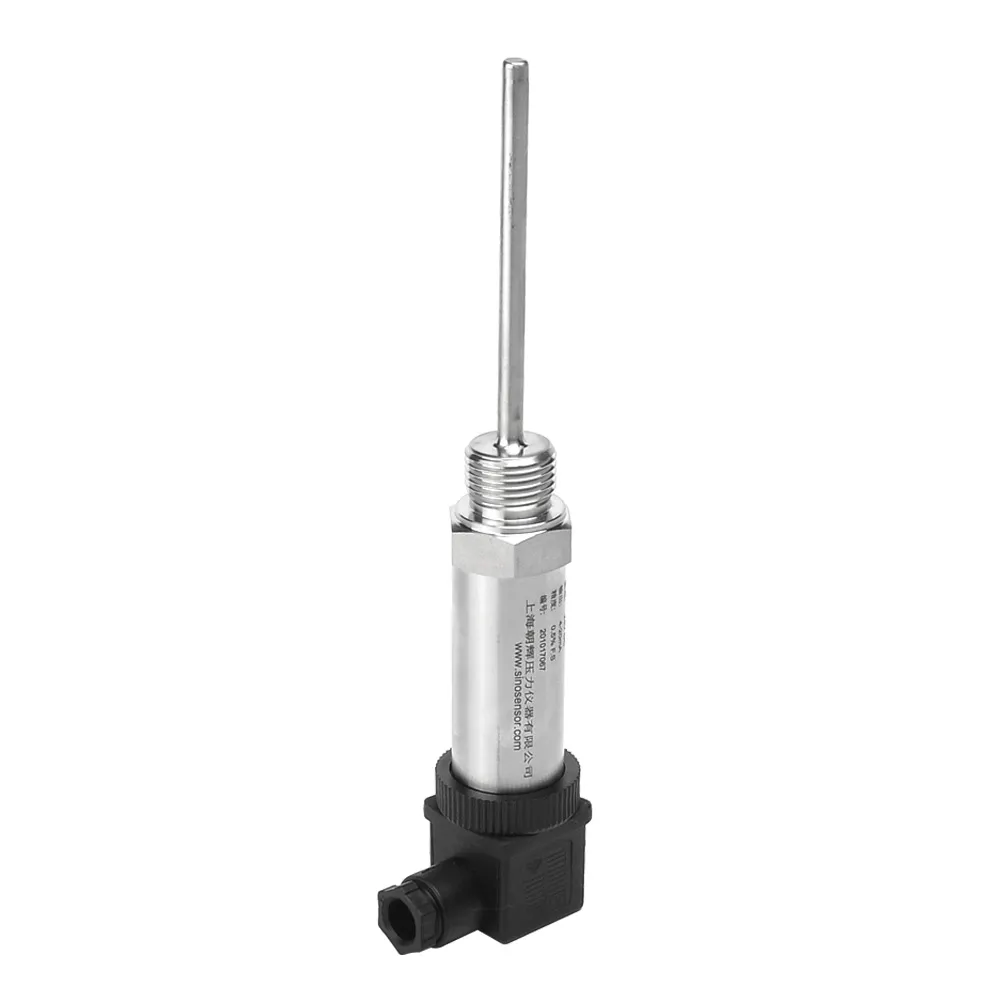

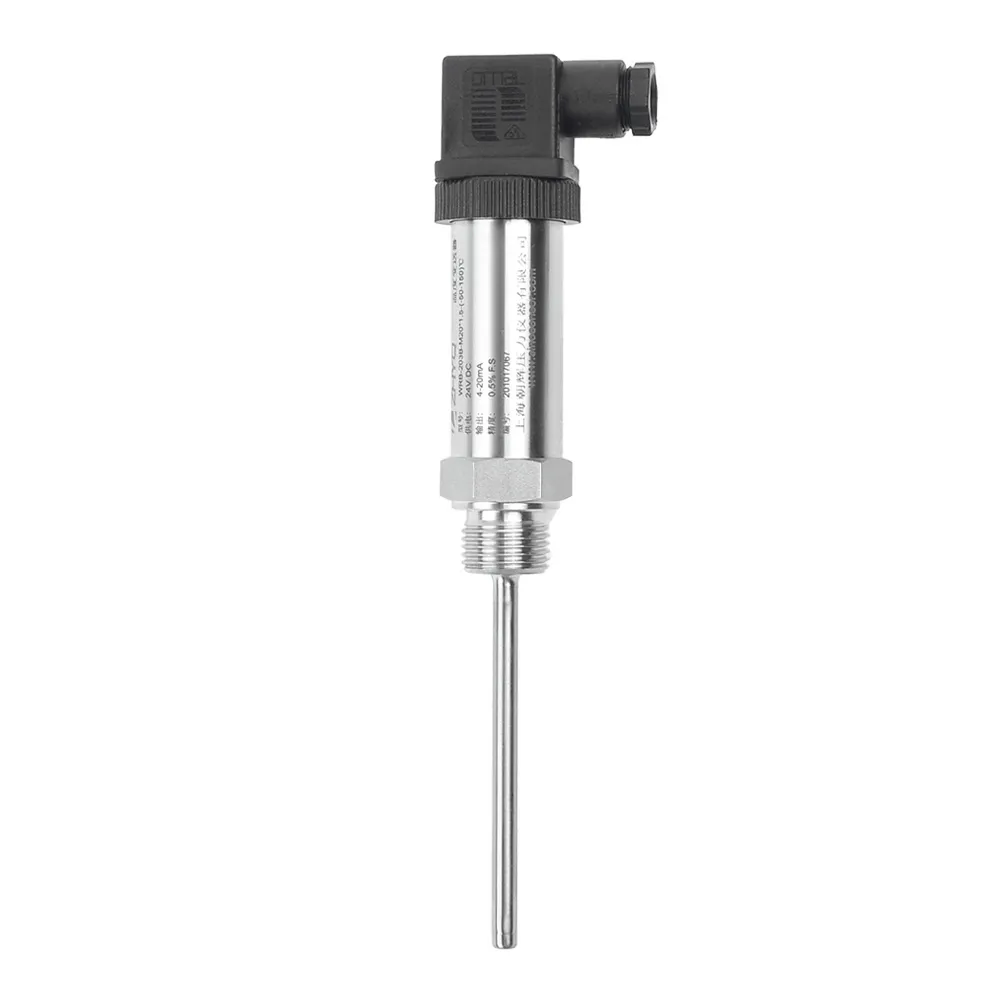

Compact Temperature Transmitter

Description

Technical Parameters

Temperature measuring element PT100 (customizable)
Measurement range -50~600℃
Accruacy Grade A:±(0.15+0.2%T) ; Grade B:±(0.3+0.5%T)
Long term stability ±0.1%FS/Year
Repeatability 0.05%FS
Housing material Stainless steel
Protection tube material SS304 ; SS316L (customizable)
Protection tube diameter 6mm ; 8mm ; 12mm ; 16mm (customizable)
Power supply 24(12~36)V DC (Amplified signal) ; 10(6~12)V DC (mV Singal)
Signal output 4-20mA(2-wires) ; 3-wires ; 4-wires
Storage temperature -40~85℃
Protection grade IP65

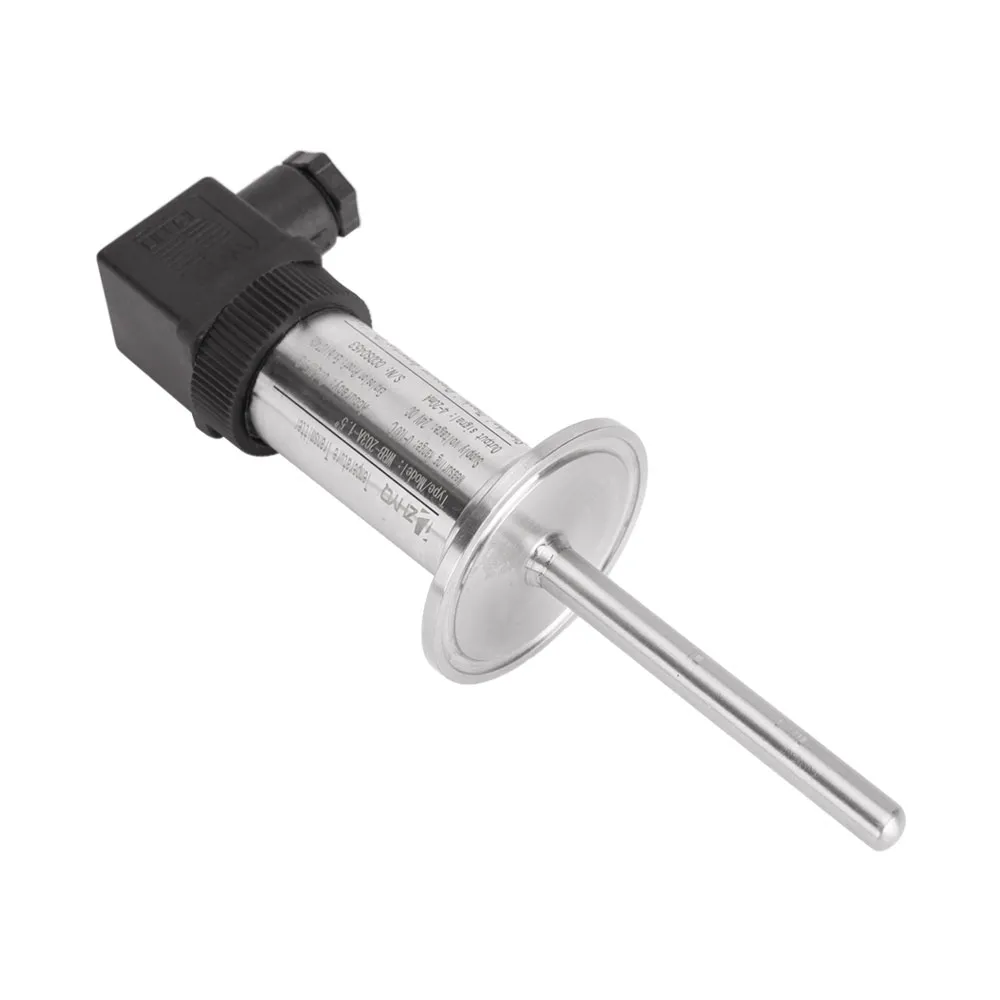

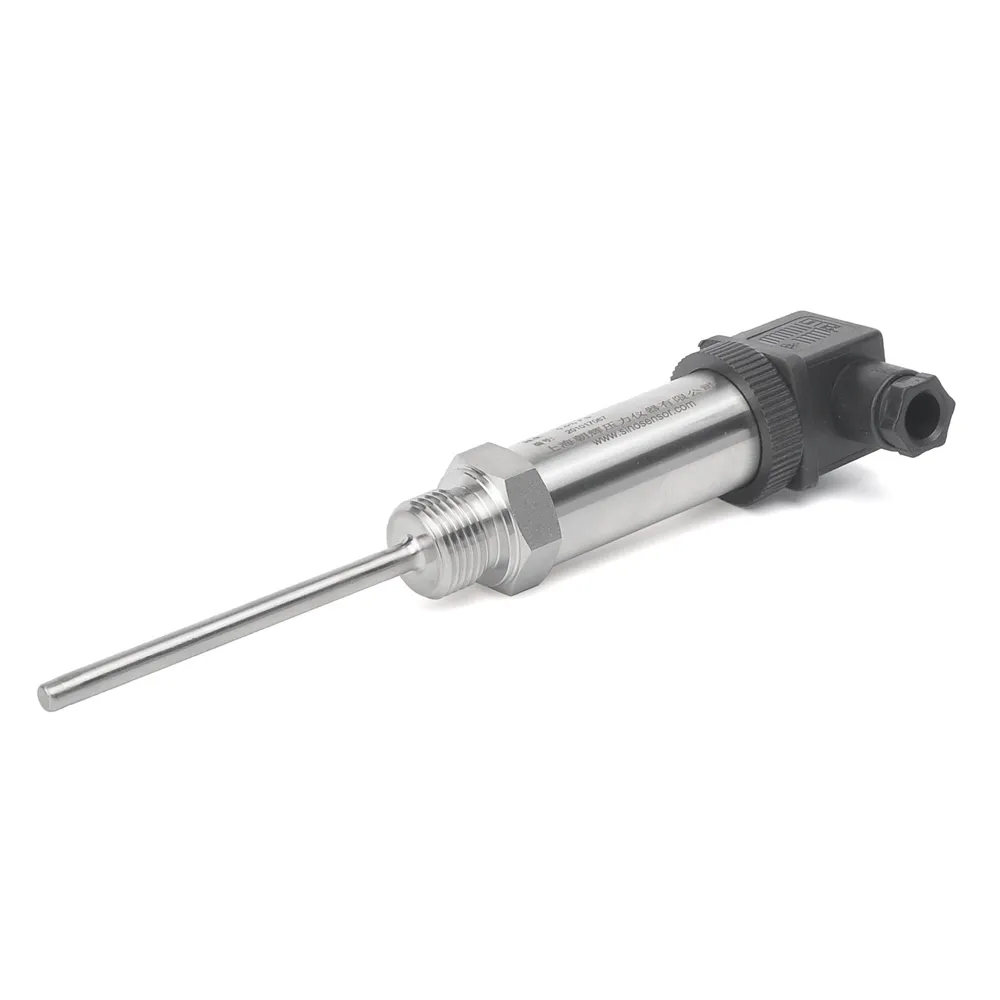

Process connection Tri-clamp ; Thread ; Flange

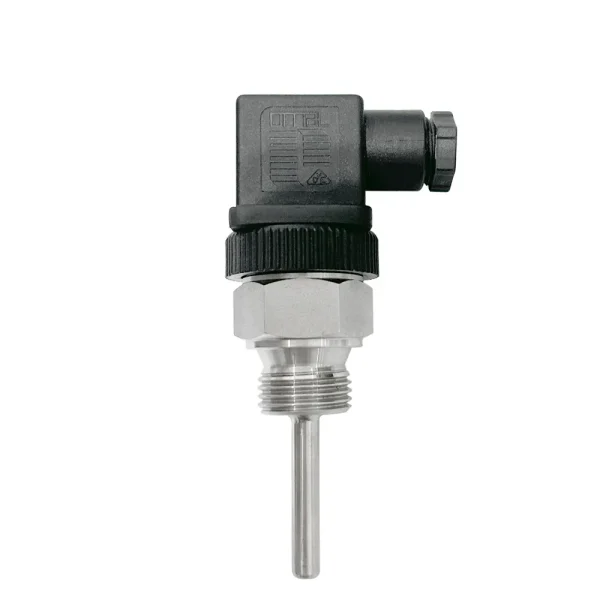

Electrical Connection Hirschmann

Features

1. Integrated structure, easy to install
2. Standard signal output, strong anti-interference ability
3. All stainless steel structure

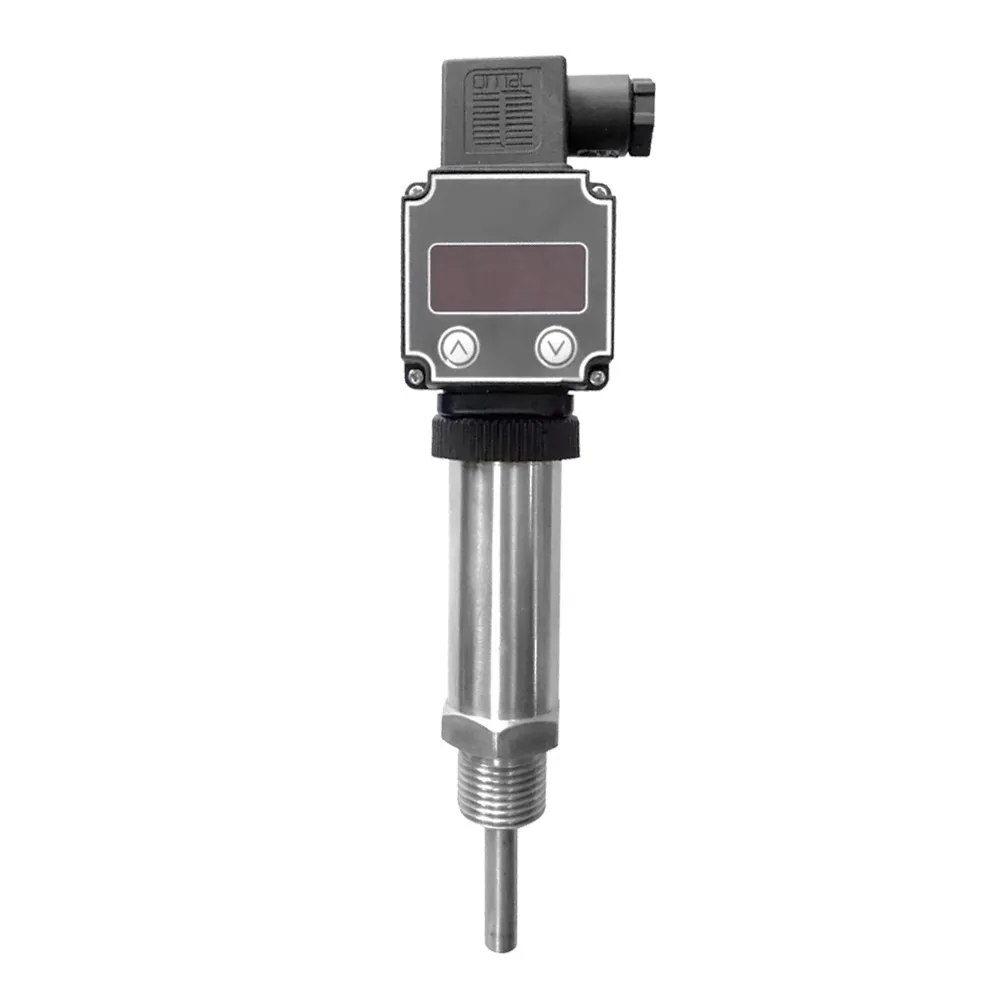

4. Zero adjustment and full adjustment functions can be added as required

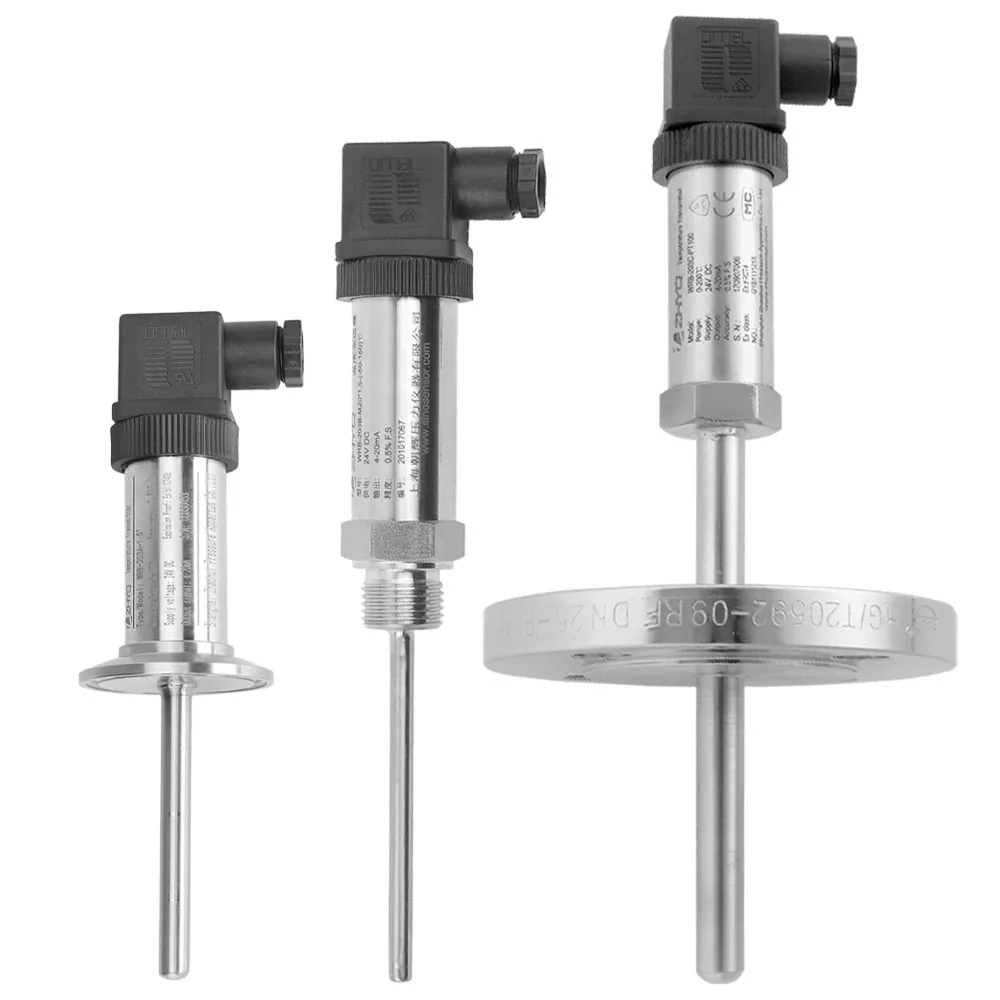

5. A variety of process connections are available

Application

1. Drilling platforms, oil pipelines, refinery reactors, oil and gas storage tanks, etc.
2. Chemical reactors, distillation towers, storage tanks, pharmaceutical sterilization equipment, etc.
3. Thermal power plant boilers, turbine bearings, transformers, cable connectors, etc.
4. Blast furnaces, steel rolling production lines, heat treatment furnaces, molten metal containers, etc.
5. Sterilizers, fermentation tanks, frozen storage, food processing production lines, etc.
6. Large building heating pipelines, central air conditioning chilled water systems, industrial plant temperature and humidity control.
7. Sewage treatment plant reaction pools, waste gas treatment equipment, industrial wastewater discharge monitoring.

Compact Temperature Transmitter

Model:WR-203

WR-203 temperature transmitter is composed of three parts as temperature sensor element, compensation circuit and switching circuit. It has the advantages of stable performance, high sensitivity, and strong reliability.
It can be widely used in automation temperature control system, such as metallurgy, machinery, petroleum, electricity, chemical industry, light industry, textile, building materials and so on.
