Clamp Mounted Diaphragm Pressure Gauge

Description

Technical Parameters

Pressure range 0~2MPa
Pointer accuracy ±1.6%FS ; ±2.5%FS
Overload 150%FS
Dial Filling Material Silicone oil
Dial Diameter 100mm

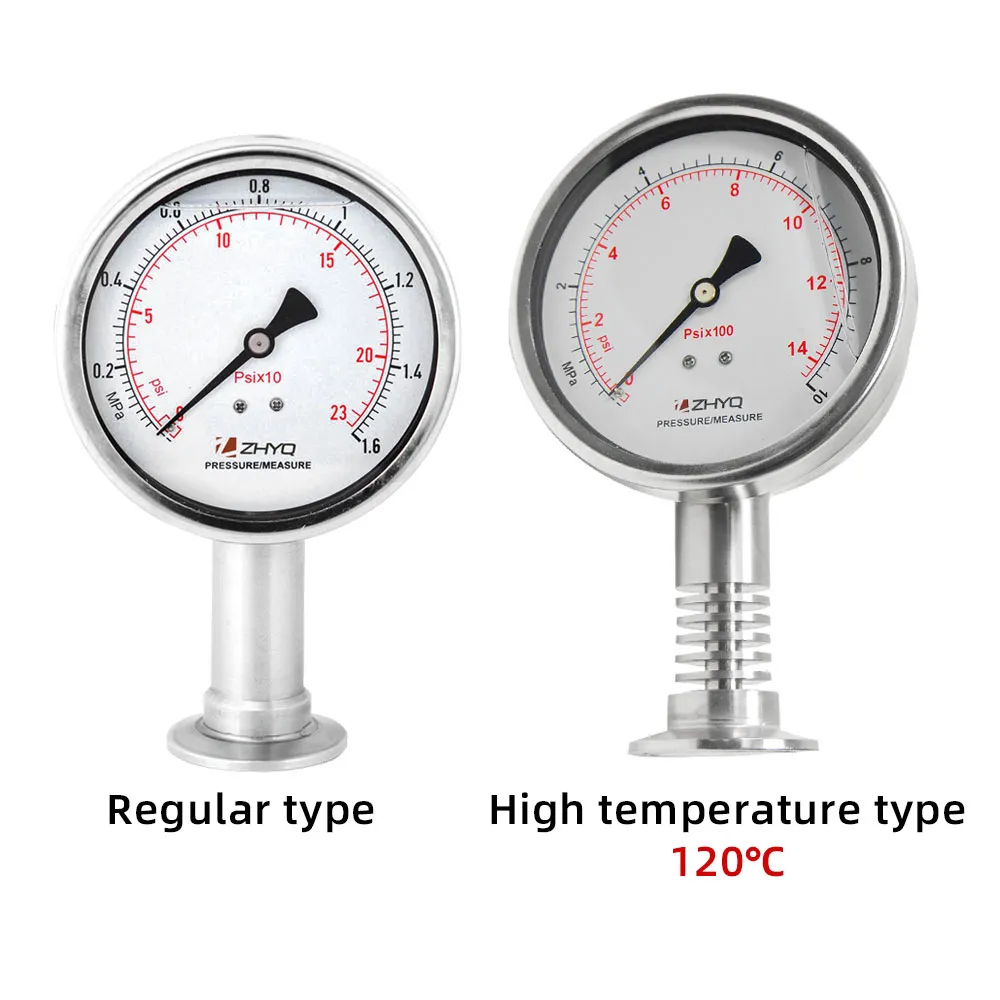

Max Diaphragm Temp. 125℃
Length of rod 33 ; 82mm
Process Connection 2″ Tri-clamp

Features

1. High cost performance and long service life
2. Easy installation
3. Stainless steel package, good sealing
4. Good shock resistance, stability and repeatability

Application

1. Petrochemical equipment
2. Chemical fiber, dyeing equipment
3. Alkali, pharmaceutical, cheese making equipment
4. Food, wine equipment

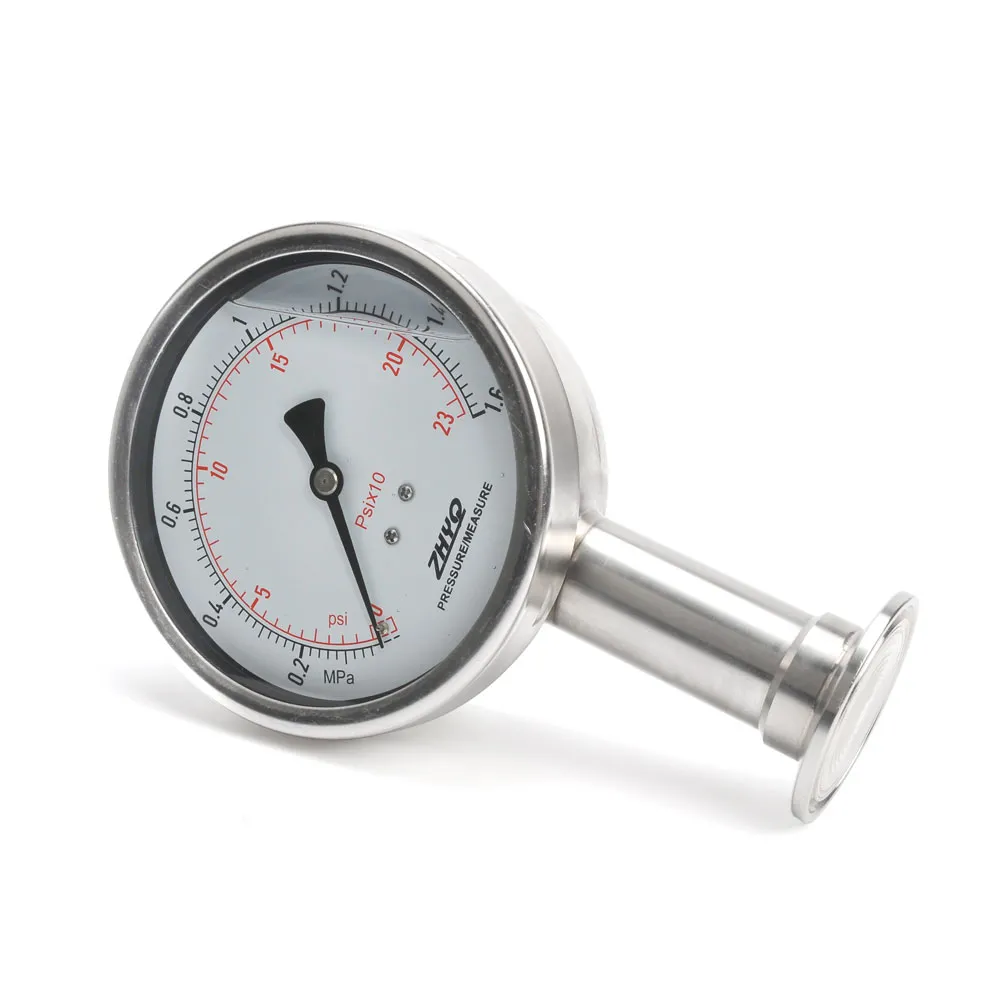

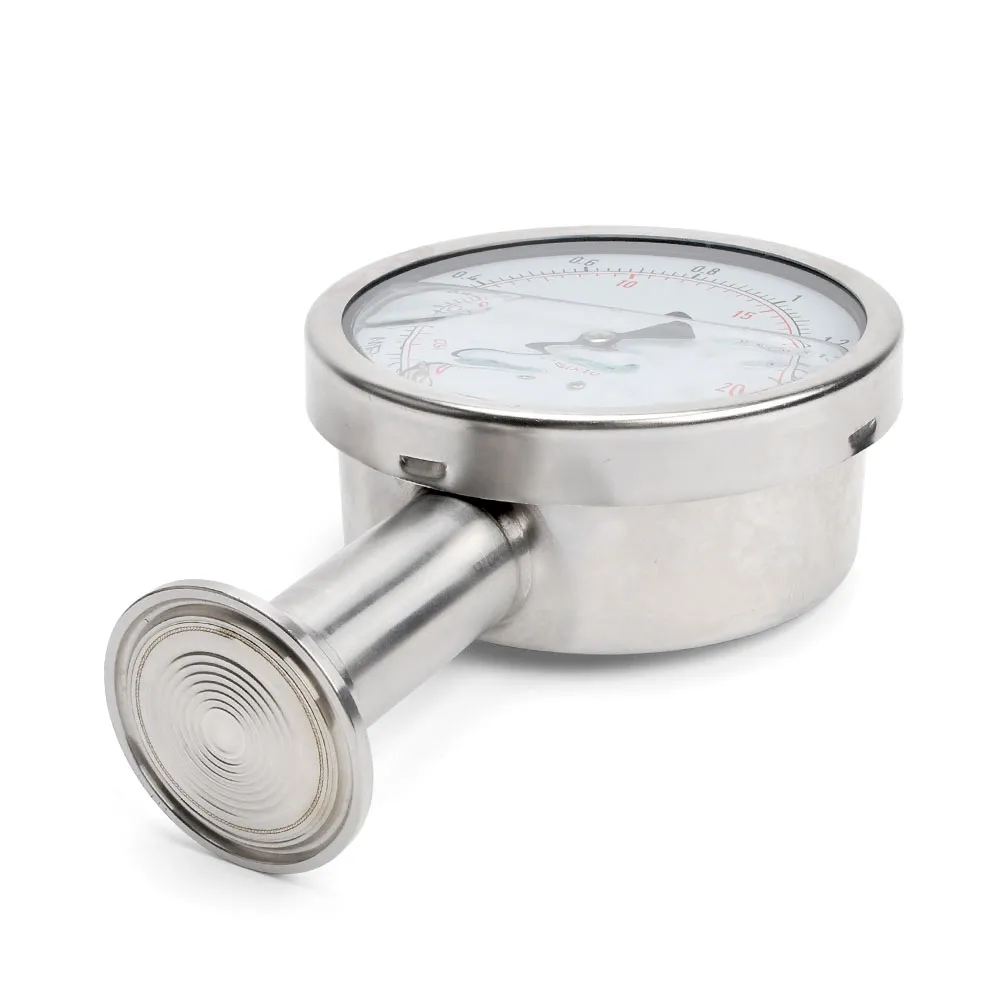

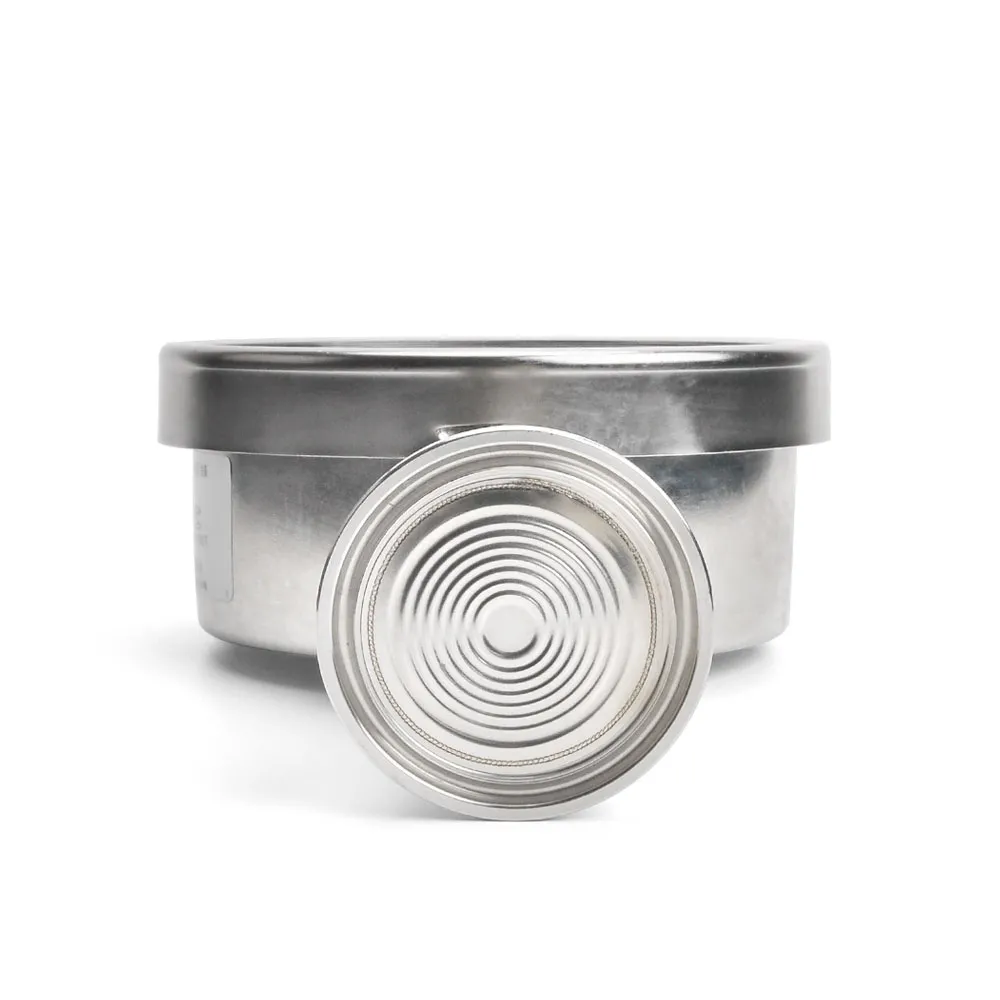

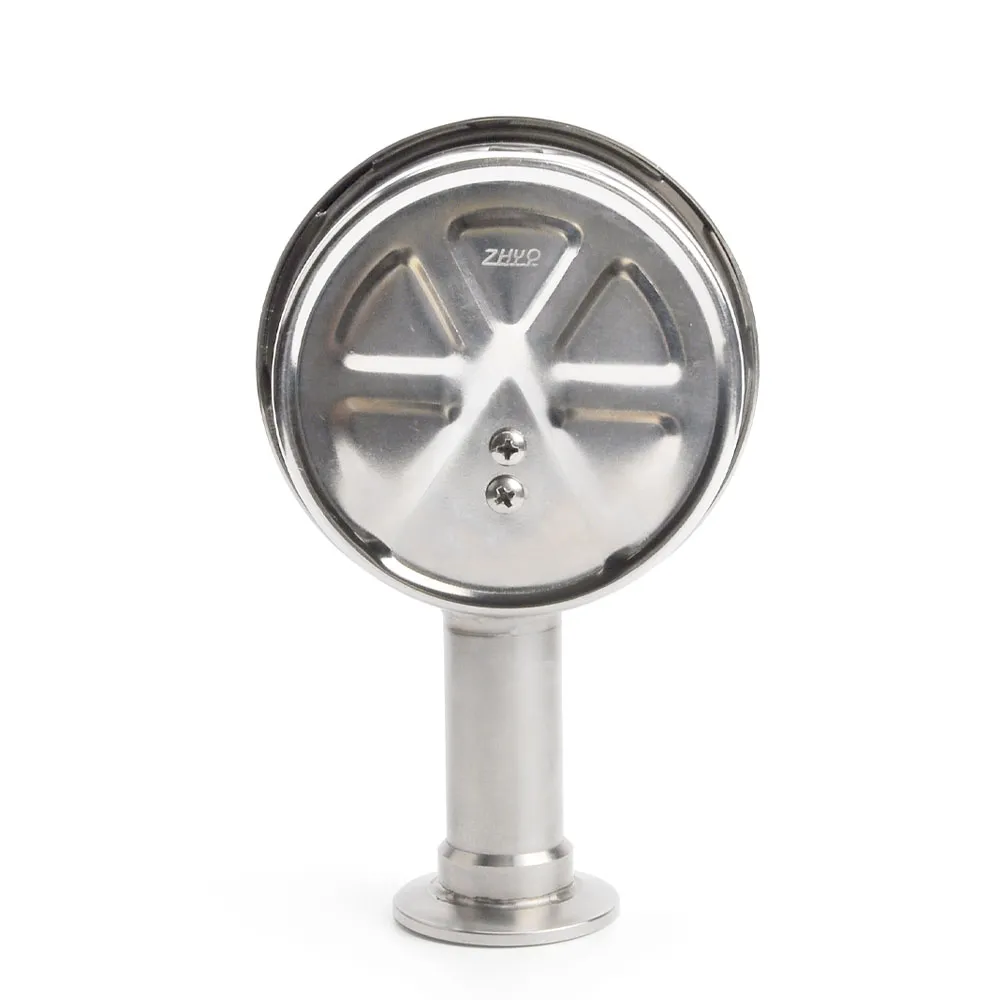

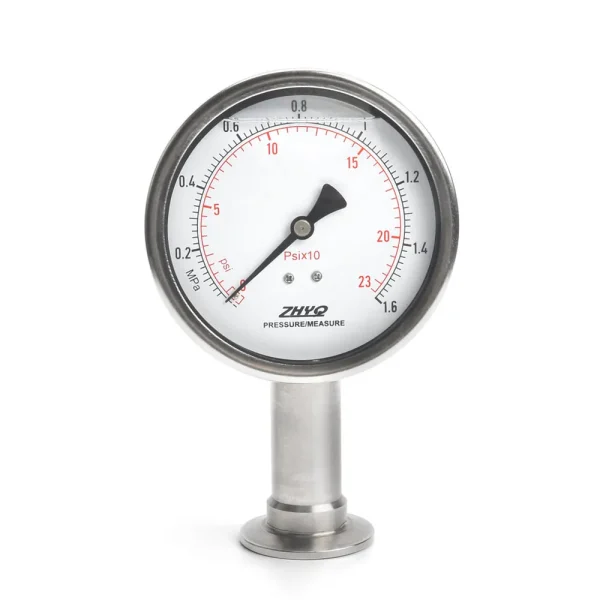

Clamp Mounted Diaphragm Pressure Gauge

Model: PT124Y-623

PT124Y-623 clamp mounted diaphragm pressure gauge adopts clamp standard parts to lock and seal, which is very convenient to install. It adopts high elastic alloy corrugated diaphragm, high performance pressure core, and all stainless steel structure design, which can adapt to the pressure measurement of corrosive media in various industries. Therefore, it is widely used in petrochemical, chemical fiber, dyeing, alkali, pharmaceutical, cheese, food, wine and other industries.
