Description
Technical Parameters
| Pressure range | 0~5MPa~150MPa | |
| Overload | 150%FS | |
| Power supply | 24(12-36V) DC | 5-12V DC |
| Signal output | 4-20mA ; 0~10V | 2mV/V ; 3.33mV/V |
| Display mode | Pointer | |
| Pointer accuracy | ±1.6%FS ; ±2.5%FS | |
| Signal accuracy | ±1%FS ; ±1.5%FS | |
| Dial diameter | 100mm | |
| Operating temperature | Max 400℃ | |
| Rigid stem length | 152 ; 200 ; 250 ; 305 ; 350 ; 400mm | |
| Capillary length | 460 ; 760 ; 1000 ; 1500 ; 2000mm | |

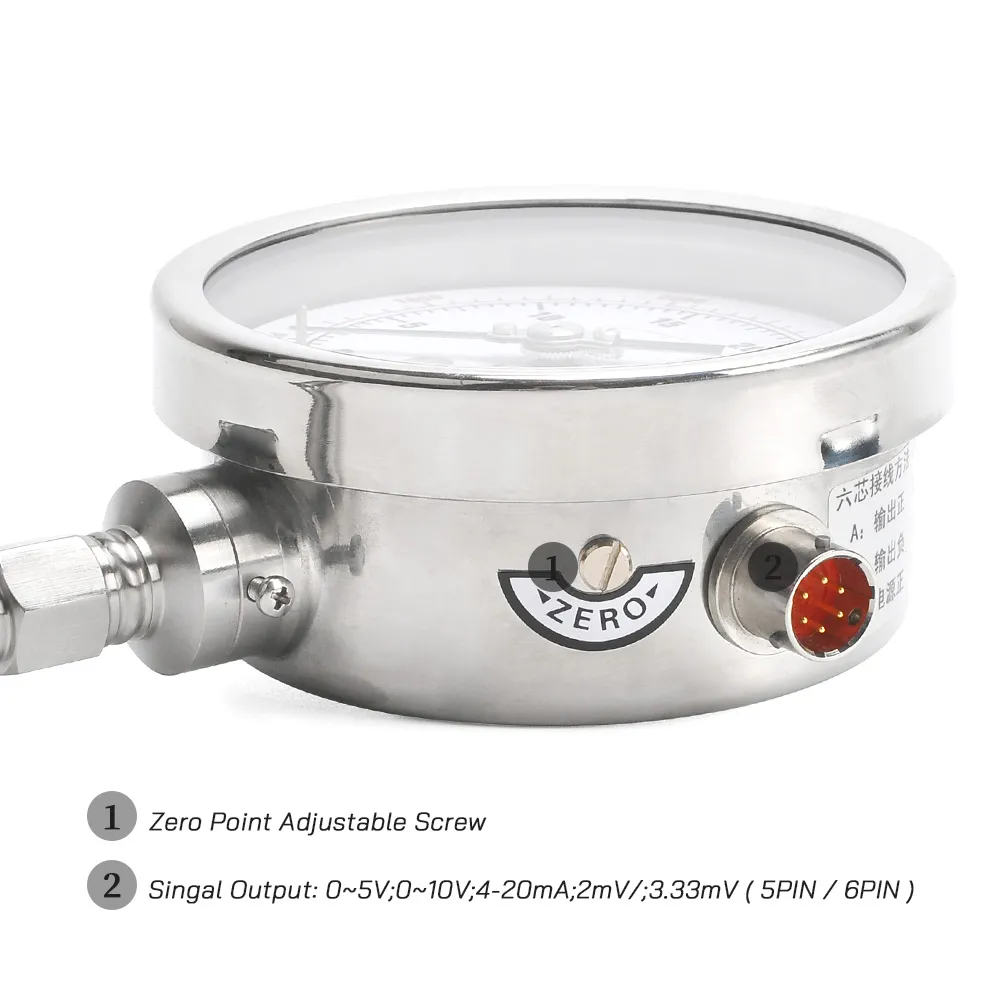

| Electrical Connection | 6PIN ; 5PIN | |
| Process connection | 1/2”-20UNF ; M14*1.5 ; M18*1.5 ; M22*1.5 | |
Features
1. Direct pressure display, with singal output
2. Easy installation, flange edge can be added
3. Maximum temperature resistance 400℃
4. Good stability and repeatability
5. Can be customized according to customer requirements
Application
1.Chemical fiber drawing equipment
2.Plastic and rubber manufacturing equipment
3.Medicine, food processing, packaging equipment
4.Pressure measurement and control of other high-temperature fluid equipment
