Axial Mounted Diaphragm Pressure Gauge

Description

Technical Parameters

Pressure range 0~0.6MPa~150MPa
Pointer accuracy ±1.6%FS ; ±2.5%FS
Overload 150%FS
Dial Filling Material Silicone oil
Dial Diameter 100mm
Max Diaphragm Temp. 125℃
Process Connection M22*1.5

Features

1. High cost performance and long service life
2. Easy installation
3. Stainless steel package, good sealing
4. Good shock resistance, stability and repeatability

Application

1.Measurement of high viscosity, easy crystallization, easy solidification, and corrosive media
2.Alkali production, chemical fiber, printing and dyeing, petrochemical industry
3.Pharmaceuticals, food, cheese making, etc.

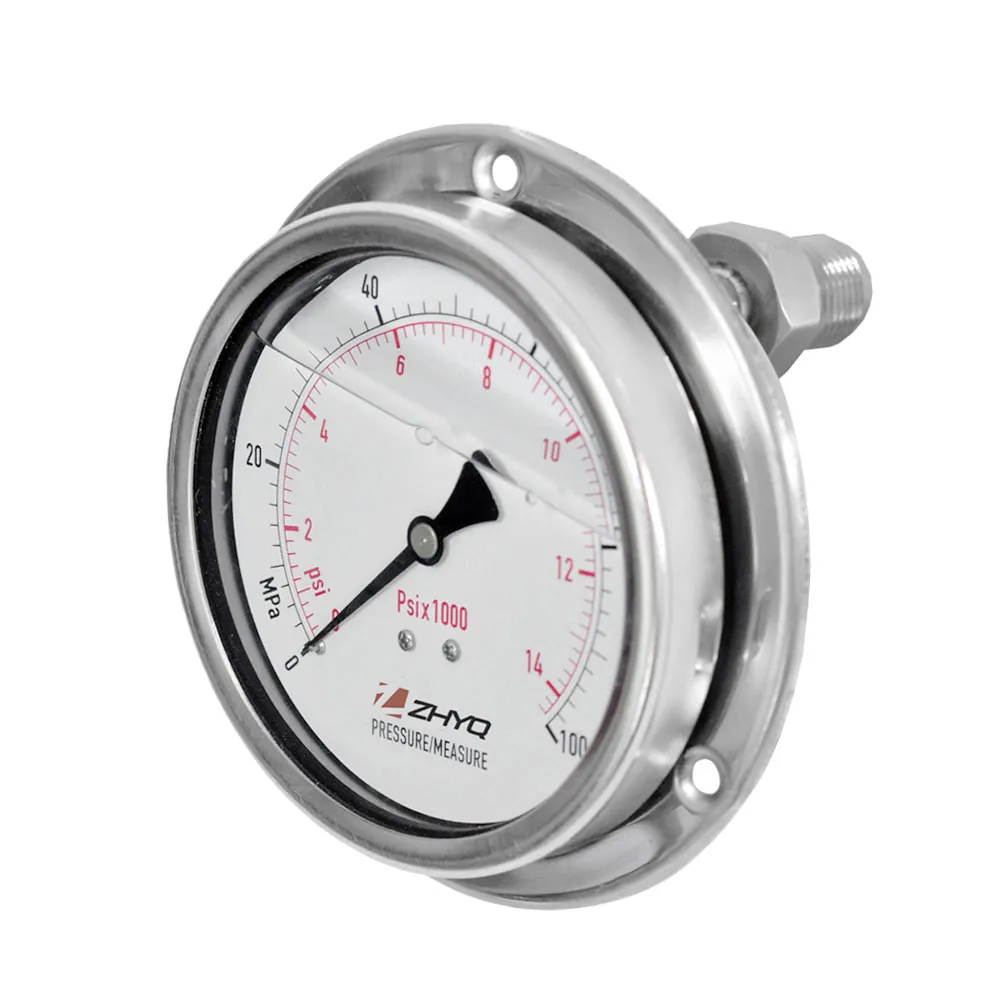

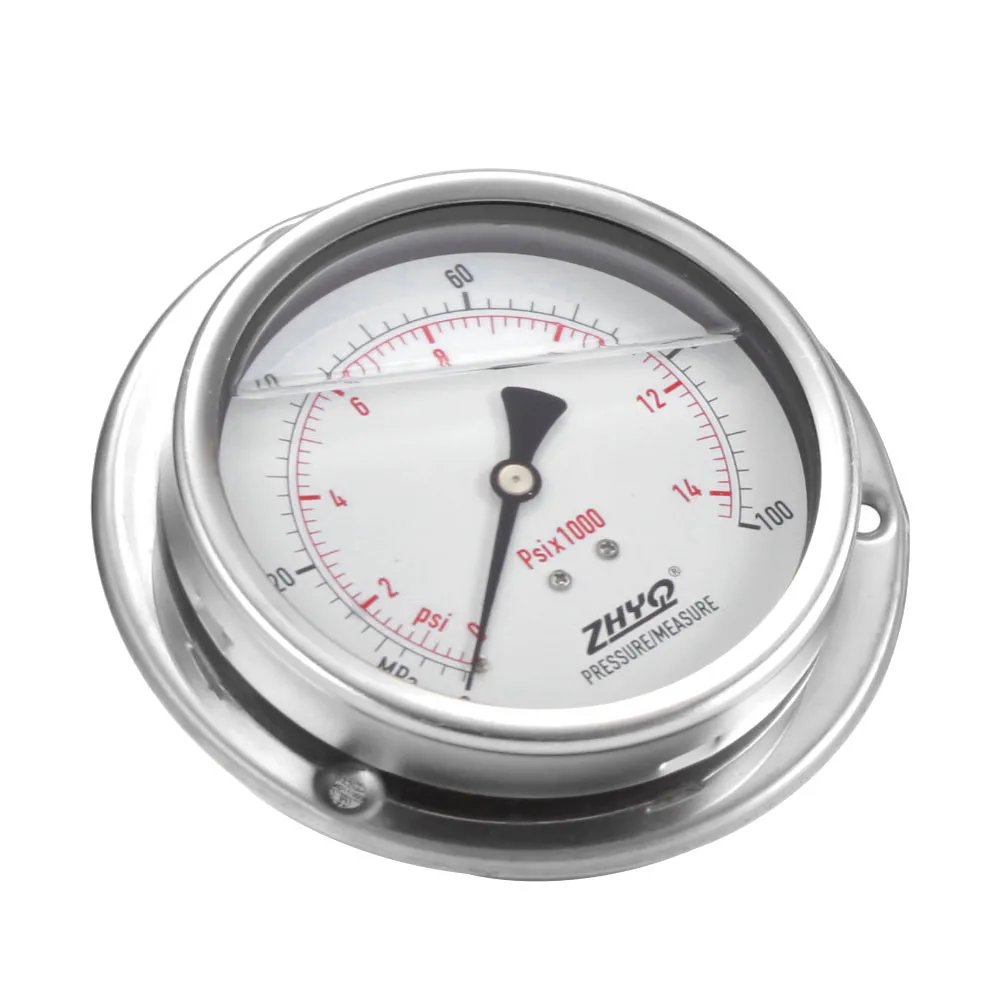

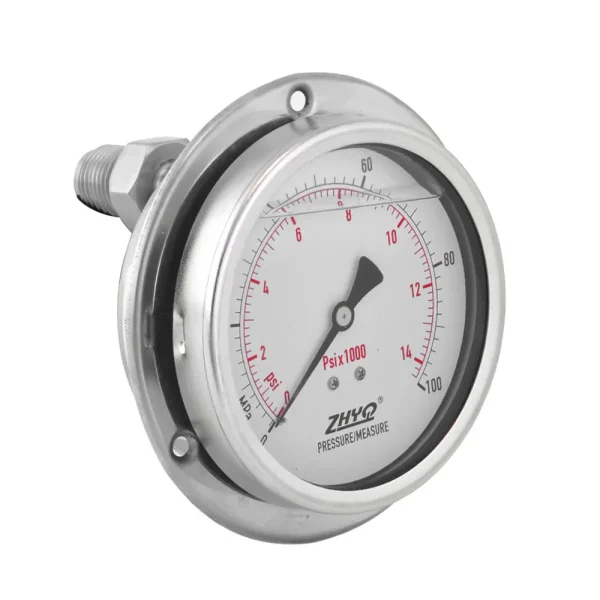

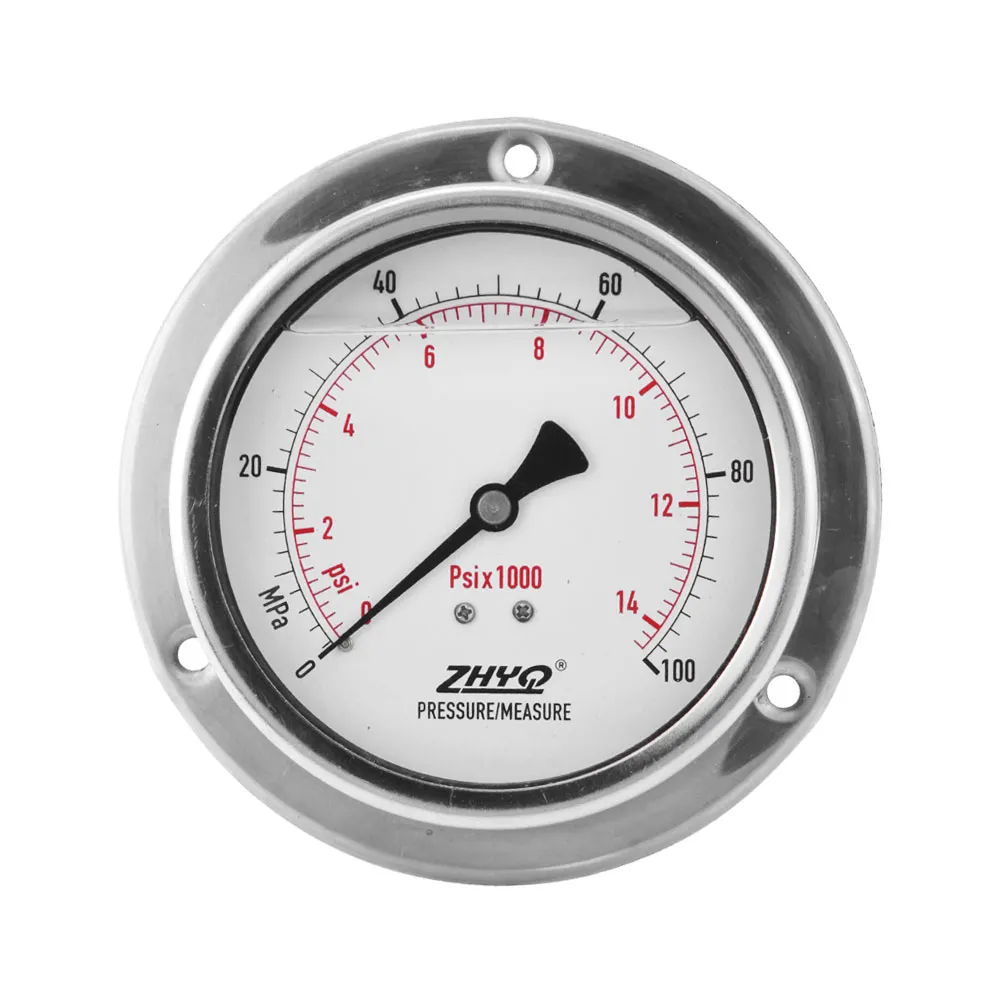

Axial Mounted Diaphragm Pressure Gauge

Model: PT124Y-625

PT124Y-625 axial mounted diaphragm pressure gauge adopts clamp standard parts to lock and seal, which is very convenient to install. It adopts high elastic alloy corrugated diaphragm, high performance pressure core, and all stainless steel structure design, which can adapt to the pressure measurement of corrosive media in various industries. Therefore, it is widely used in petrochemical, chemical fiber, dyeing, alkali, pharmaceutical, cheese, food, wine and other industries.
