Description
Technical Parameters
| Temperature measuring element | PT100 ; J ; K ; E (customizable) | |
| Measurement range | PT100: -50~600℃ | J、K、E: -200~1300℃ |
| Accruacy | Grade A:±(0.15+0.2%T) ; Grade B:±(0.3+0.5%T) | |
| Long term stability | ±0.1%FS/Year | |
| Repeatability | 0.05%FS | |
| Protection tube material | SS304 ; SS316L ; PTFE | |
| Protection tube diameter | 6mm ; 8mm ; 12mm ; 16mm | |
| Power supply | 24(12~36)V DC (Amplified signal) ; 10(6~12)V DC (mV Singal) | |
| Signal output | 4-20mA（2-wires） ; 3-wires ; 4-wires | |
| Storage temperature | -40~85℃ | |
| Protection grade | IP67 | |

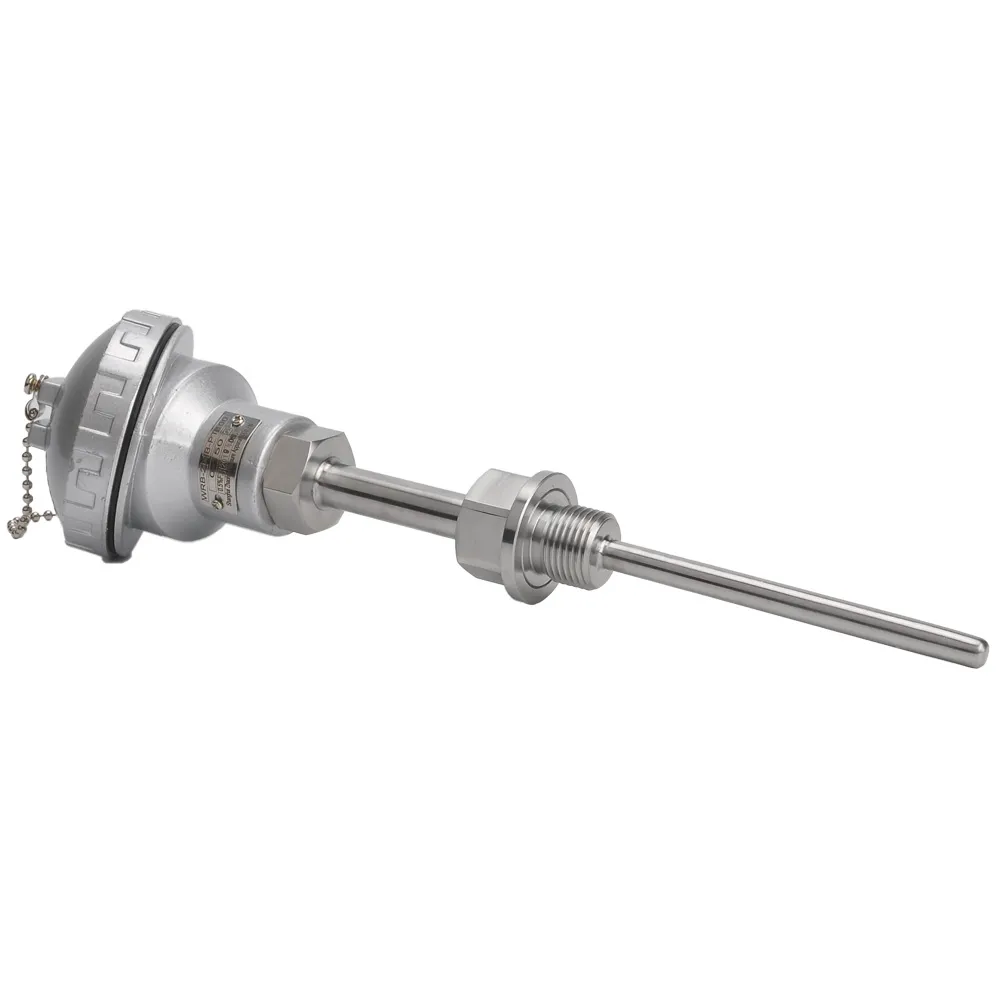

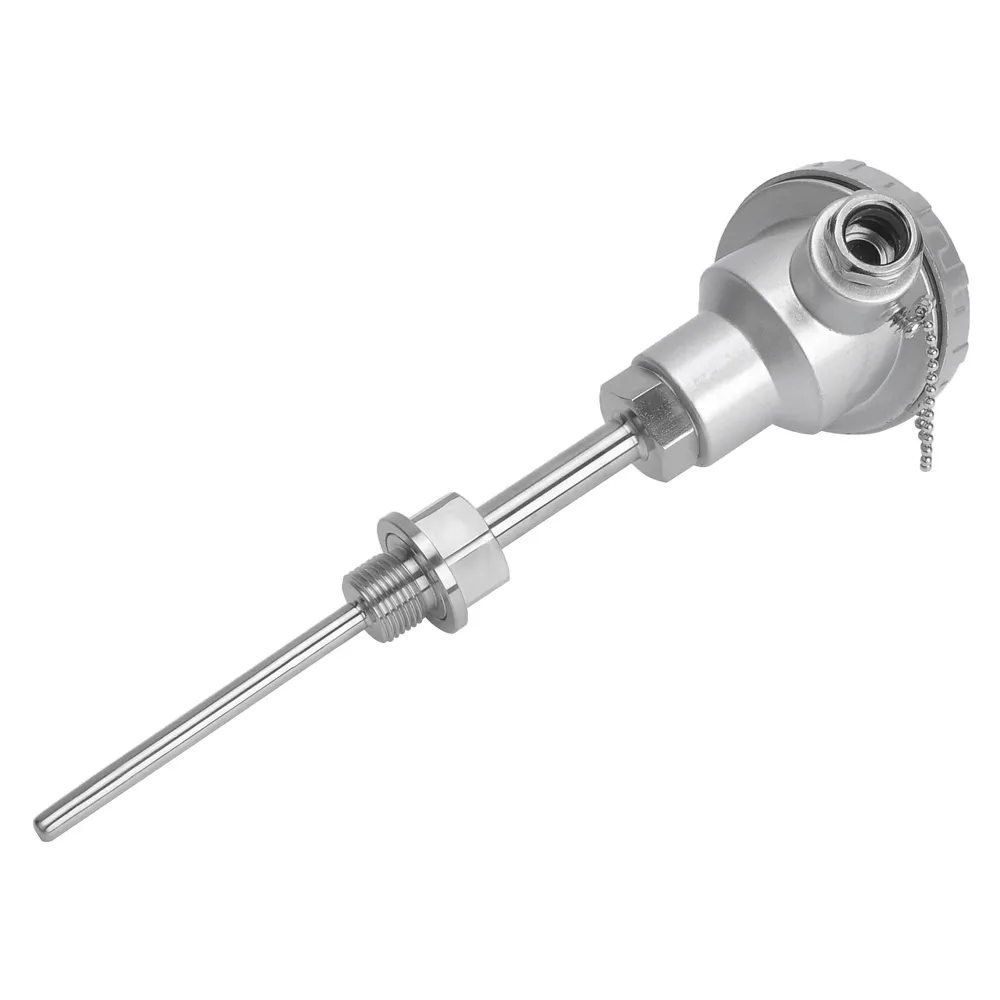

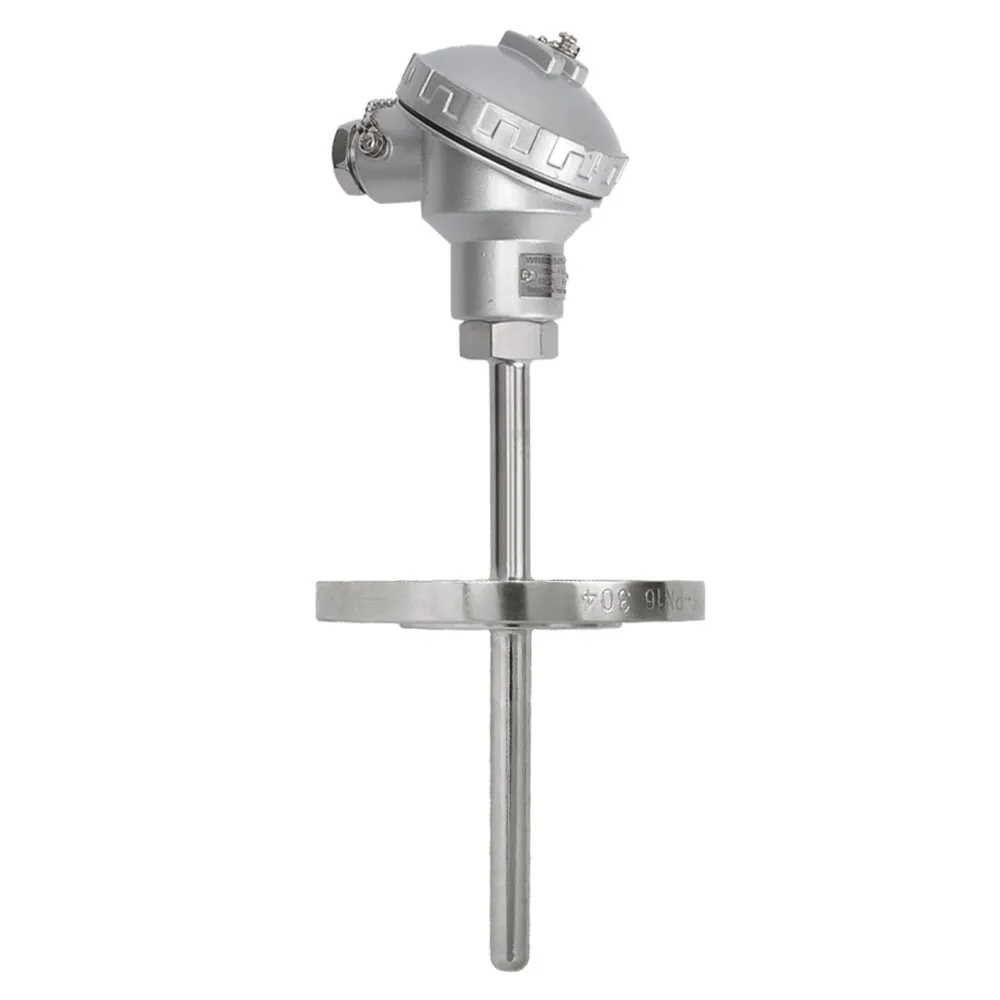

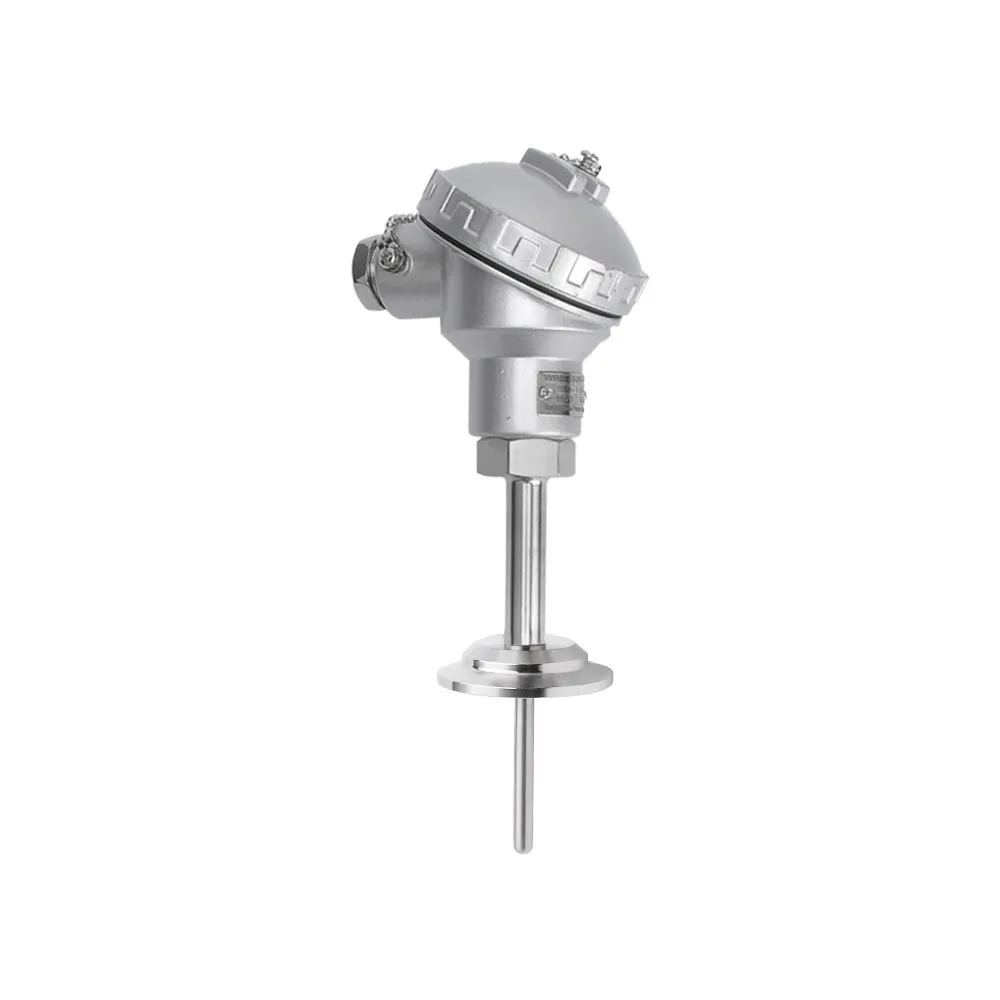

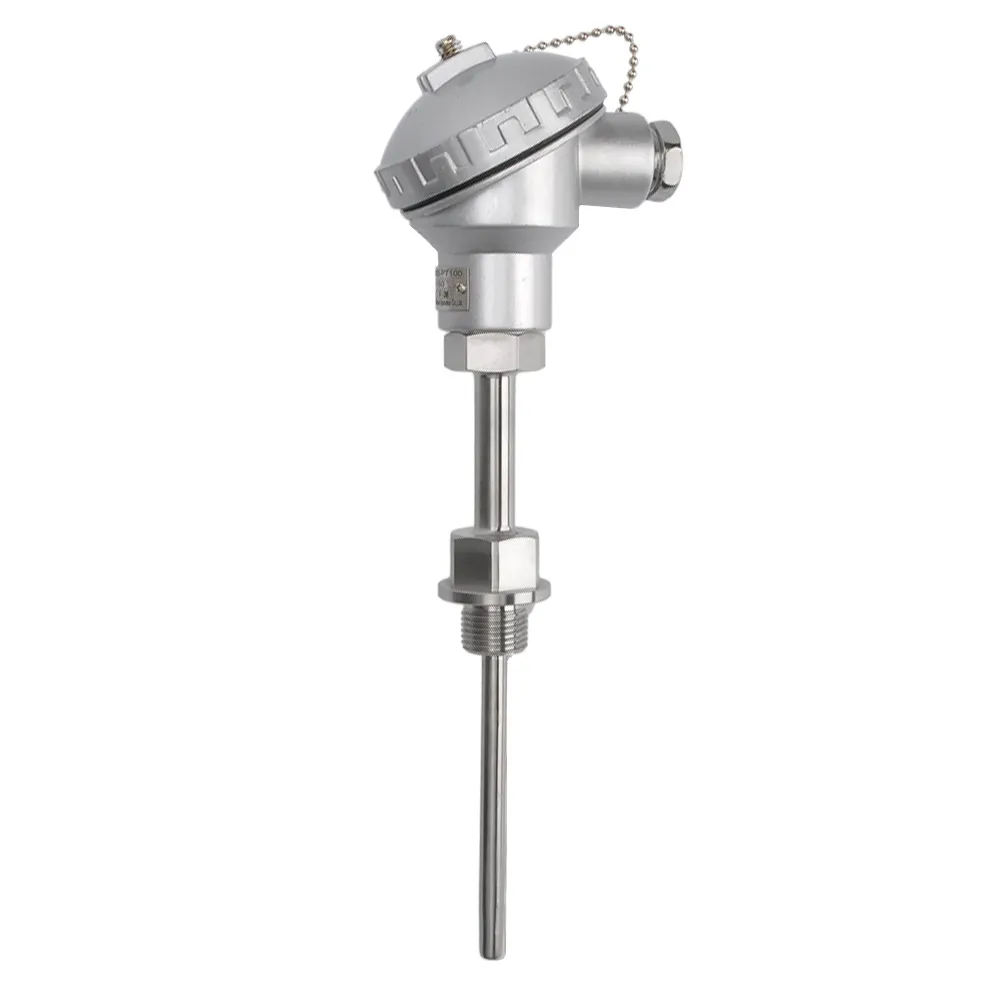

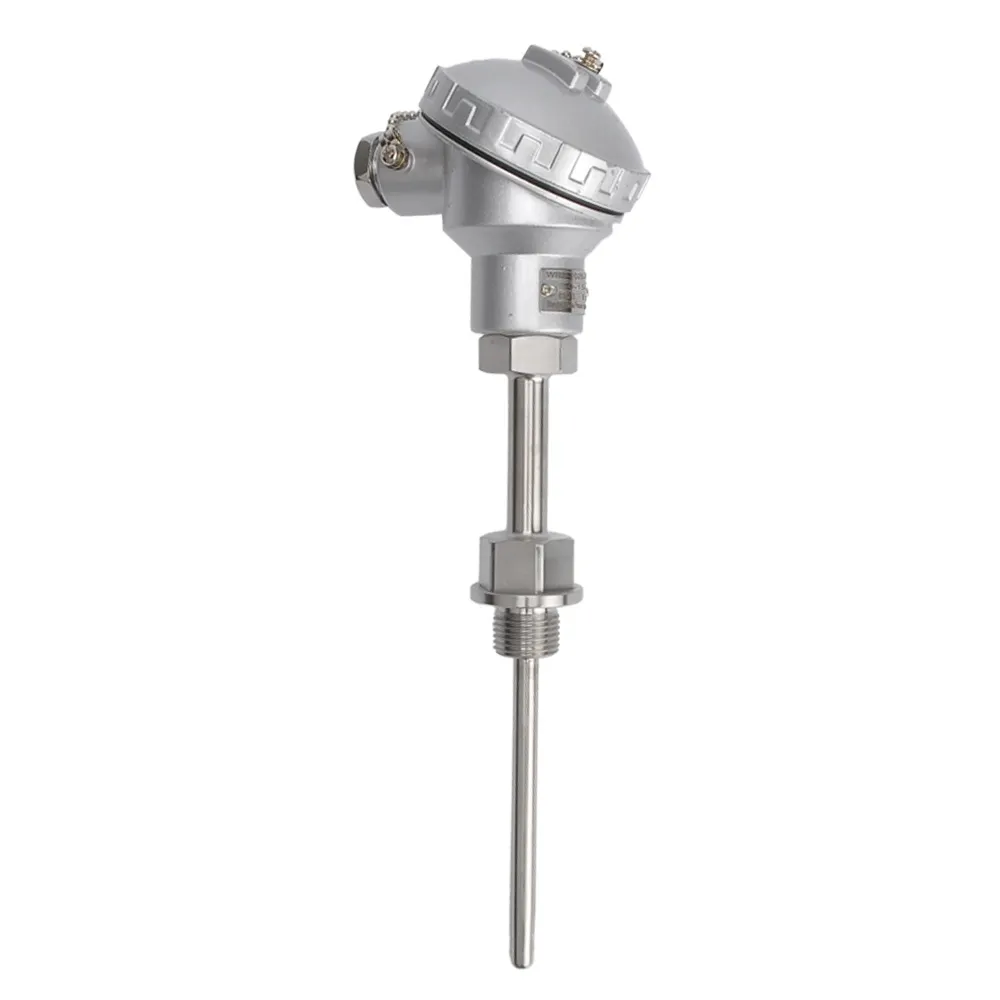

| Process connection | Tri-clamp ; Thread ; Flange | |

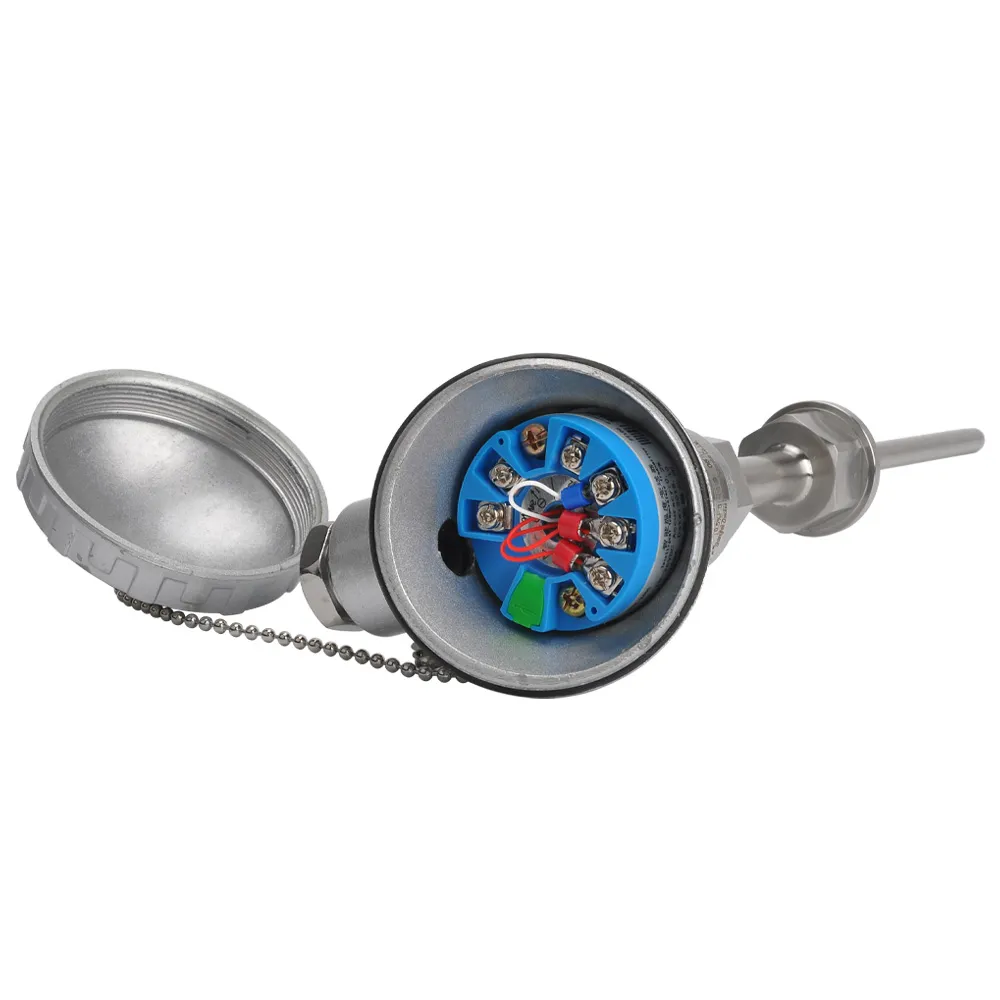

| Wiring housing | Waterproof aluminum housing | |
Features
1. Multiple installation methods
2. Can be connected to display instruments
Application
1. Drilling platforms, oil pipelines, refinery reactors, oil and gas storage tanks, etc.
2. Chemical reactors, distillation towers, storage tanks, pharmaceutical sterilization equipment, etc.
3. Thermal power plant boilers, turbine bearings, transformers, cable connectors, etc.
4. Blast furnaces, steel rolling production lines, heat treatment furnaces, molten metal containers, etc.
5. Sterilizers, fermentation tanks, frozen storage, food processing production lines, etc.
6. Large building heating pipelines, central air conditioning chilled water systems, industrial plant temperature and humidity control.
7. Sewage treatment plant reaction pools, waste gas treatment equipment, industrial wastewater discharge monitoring.
