In the complex and ever-changing environment of underground mines, accurately monitoring the flow of fluids (water, gas, emulsions, etc.) is not only key to optimizing production but also ensures operational safety and prevents disasters!

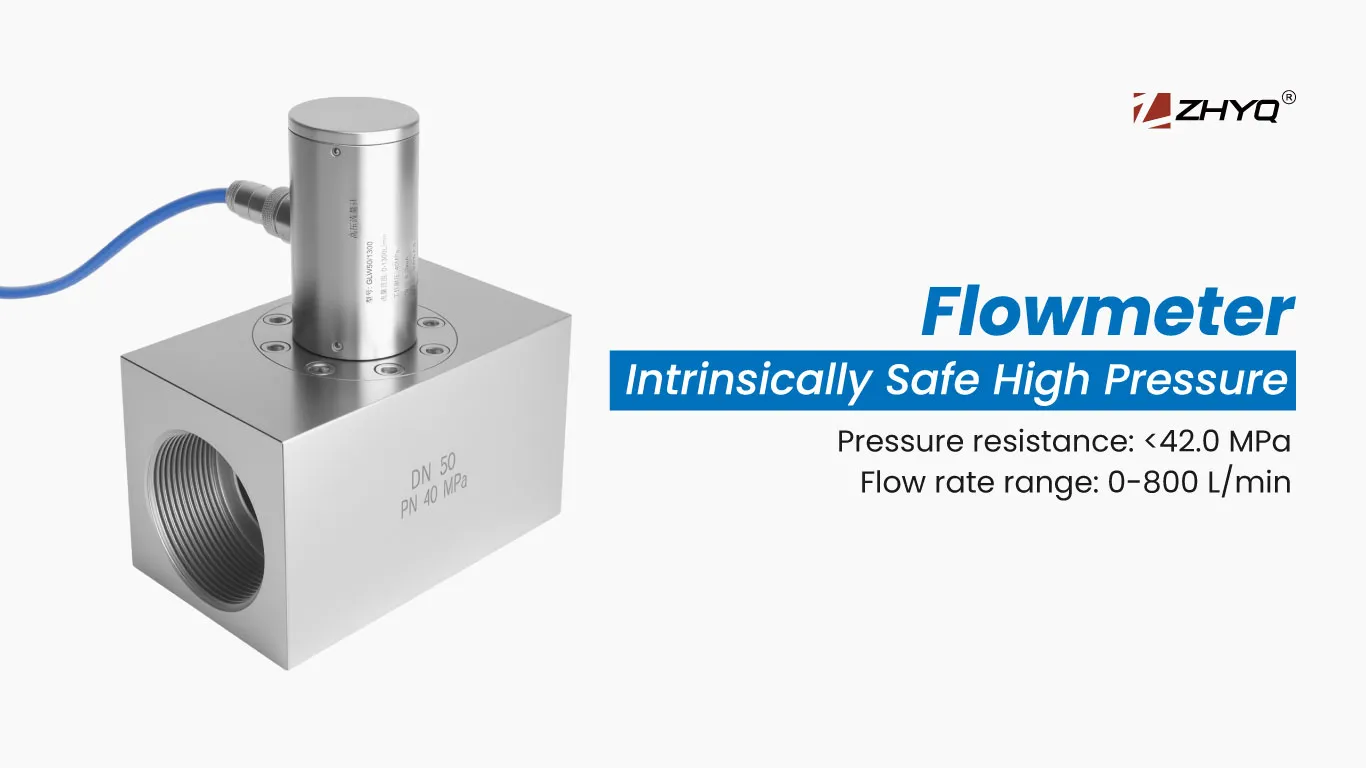

Today, we’ll explore the “safety guard” of underground fluid systems—the intrinsically safe high-pressure flowmeter for mining.
What is “intrinsically safe”?
“Intrinsically safe” refers to intrinsically safe circuits and is one of the most important types of explosion-proofing for electrical equipment in underground mines. Its core concepts are:
- Energy Limitation: The device’s circuit design strictly limits electrical energy to extremely low levels (even in fault conditions such as short circuits and open circuits).
- Spark Elimination: Even in hazardous gas environments (such as gas and coal dust), the energy from sparks or thermal effects generated within the device is insufficient to ignite an explosive mixture.
- Dual Protection: Typically, it is used in conjunction with an associated safety barrier to further ensure the absolute safety of energy entering the hazardous area.
Intrinsically safe flowmeters for mining are designed and manufactured to this highest safety standard and are the only safe choice for flow monitoring in the flammable and explosive environments of underground coal mines.
The Mining Product Safety Mark Certificate (MA Mark) is your “pass” to underground coal mines:
It meets intrinsically safe explosion-proof requirements for mines, such as Ex ia I Ma or Ex ib I Ma. This fundamentally eliminates the risk of electric spark explosions caused by flow monitoring equipment, providing a solid guarantee for the safety of miners and mine facilities.
The flowmeter utilizes advanced sensing technology to achieve high-precision and stable fluid flow measurement.
It monitors key parameters such as water supply and drainage, ventilation system air volume, and hydraulic support emulsion flow in real time, providing reliable data support for production scheduling, energy management, and equipment protection.
Its enclosure typically achieves an IP65/IP67 or higher rating, making it dustproof and waterproof, and resistant to underground moisture, water, and dust contamination.
Key components are constructed of corrosion-resistant and impact-resistant materials, ensuring long-term, stable operation in underground environments subject to vibration, shock, high humidity, and high dust levels.
This flow meter outputs standard signals (4-20mA, RS485 Modbus, etc.) and can be connected to a mine automation control system (DCS/SCADA) or integrated monitoring platform.

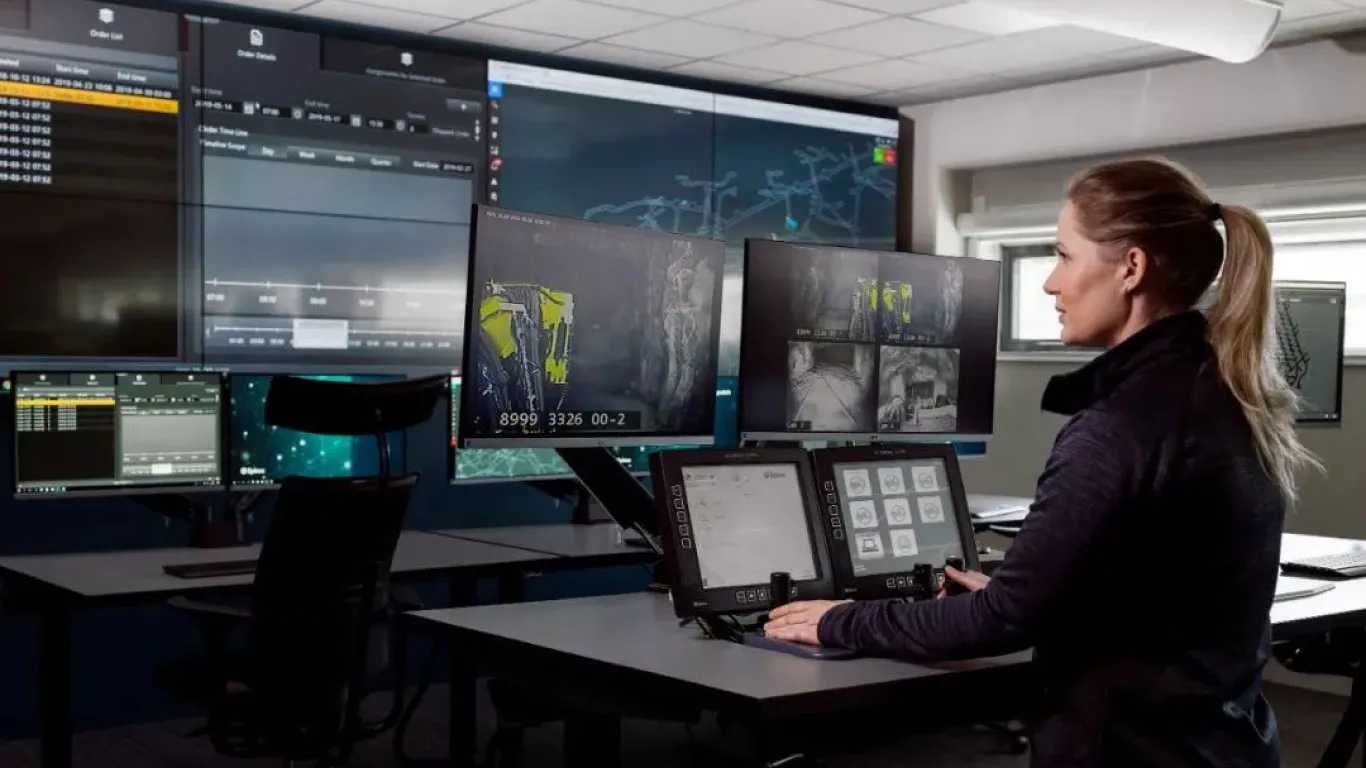

It enables remote monitoring, real-time alarms, historical recording, and analysis of flow data, making it a crucial sensing unit in building smart and transparent mines.
Mine intrinsically safe high-pressure flowmeters are widely used in coal mines and are the key “eyes and ears” to ensure the safe and efficient operation of various systems:
- Mine Water Supply and Drainage System: Monitors flow rates in the main drainage pump room, mining area water pump room, and working face to prevent flooding.
- Fire Prevention and Suppression System: Monitors liquid/gas flow rates in grouting, nitrogen injection, and spray dust suppression systems to ensure effective implementation of fire prevention and suppression measures.
- Comprehensive Mining Workbench: Monitors the flow rate of the hydraulic support emulsion pump station to ensure support performance.
- Compressed Air Self-Rescue System: Monitors the flow rate in the compressed air pipeline to ensure adequate air supply in emergencies.
When choosing an intrinsically safe high-pressure flowmeter for mining, it’s crucial to remember the following:
- MA certification is a red flag: Working underground without a valid mining product safety mark certificate is strictly prohibited!
- Matching the explosion-proof rating: Confirm that the equipment’s explosion-proof marking (e.g., Ex ia I Ma) meets the requirements of the location.
- Model selection is crucial: Select the appropriate measurement principle and model based on the measured medium (water, gas, emulsion, etc.), flow range, pipe size, pressure and temperature, accuracy requirements, and output signal.
- Procurement through legitimate channels: Choose a reputable supplier with comprehensive after-sales service and technical support.
A mining intrinsically safe high-pressure flowmeter is more than just a measuring instrument; it serves as an indispensable safety barrier and efficiency engine for coal mine safety production systems, and its value far exceeds its price：
- Ensure life safety: Prevent major accidents caused by equipment failure or explosion.
- Avoid production losses: Accurate monitoring ensures stable system operation and reduces unplanned downtime.
- Optimize resource allocation: Accurate measurement provides a basis for energy conservation, consumption reduction, and cost control.
- Improve management: Data-driven decision-making facilitates intelligent mine upgrades.
ZHYQ has been deeply involved in the field of mine safety monitoring for many years, offering a full range of intrinsically safe flowmeters for mines that meet the highest national safety standards. We offer:
- Comprehensive Mine Safety Certifications (MA Certifications)
- Multiple measurement principles to meet diverse needs
- Superior product quality and reliability
- Professional technical support and after-sales service
Contact us now to ensure the safety and efficiency of your mining operations!
